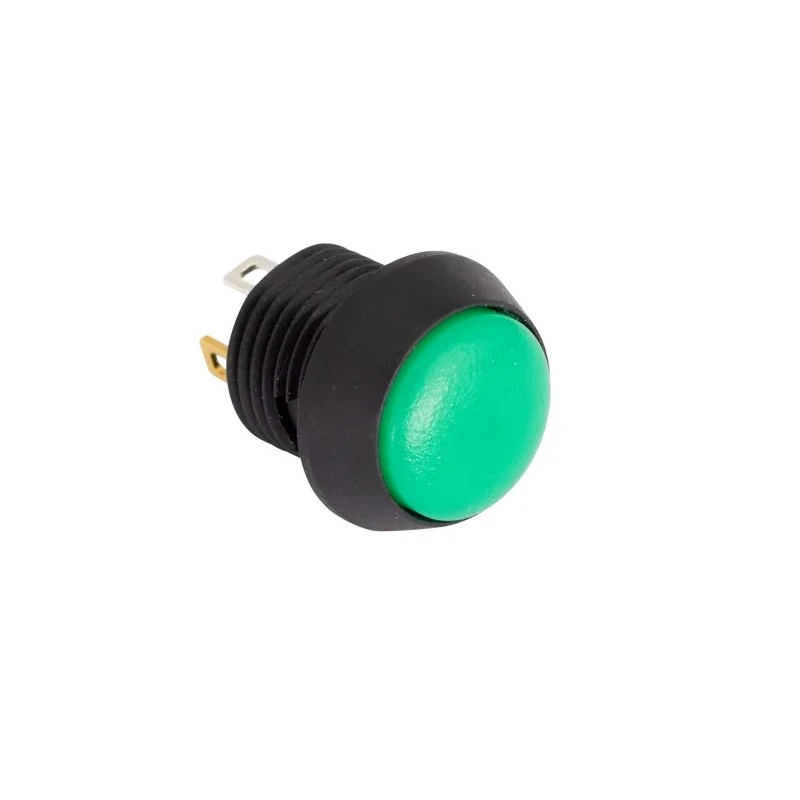

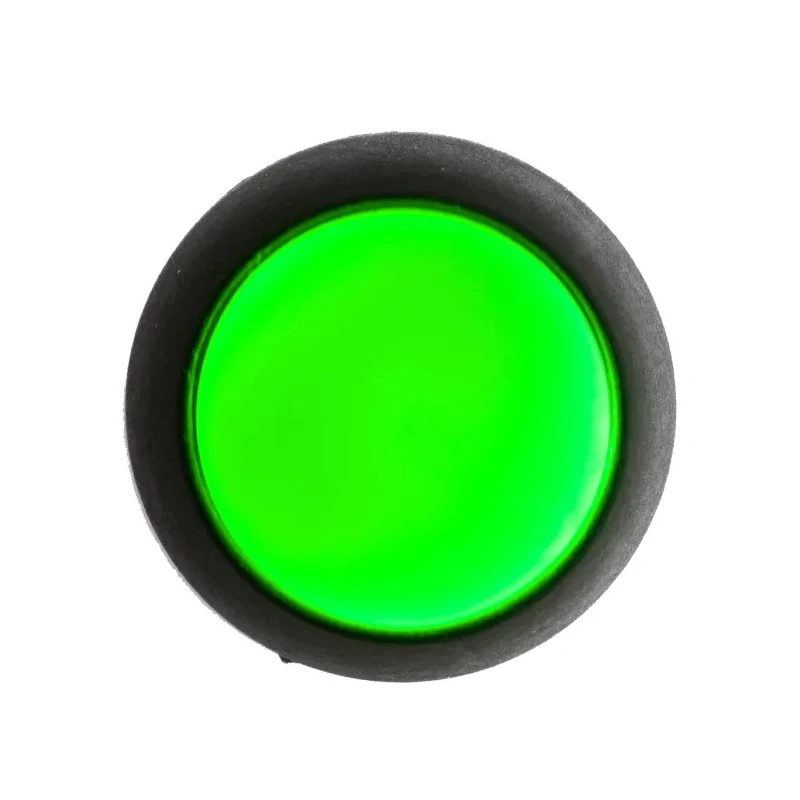

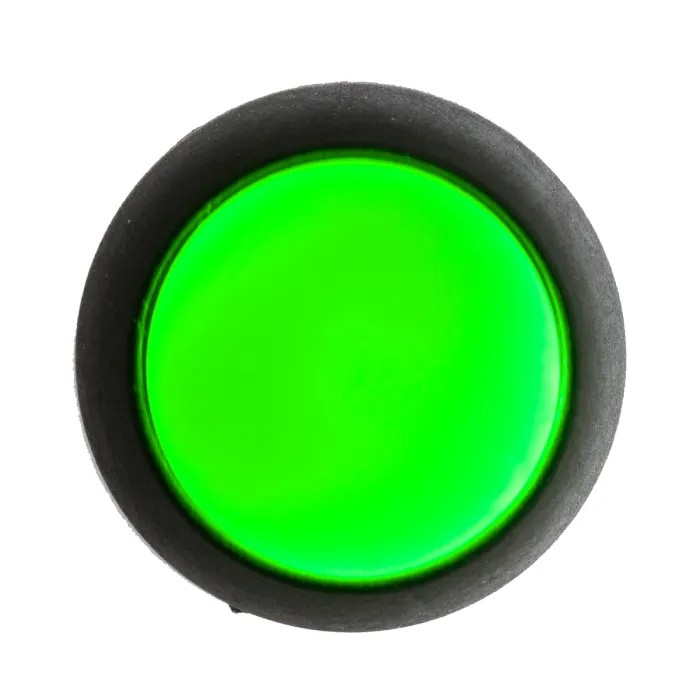

EOZ FL Series Illuminated Push Button Switch, Momentary, Panel Mount, 12 mm Cutout, SPST Contact, Green LED, IP67 FL12LG5



Category Push Button Switch Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Operating Temperature Range	-40 to +85°C
Model	FL12LG5
IP Rating	IP67
Mount Type	Panel
Panel Thickness	1 mm to 6 mm
Ingress Protection	IP67
Series	FL
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	1 NO
Minimum Operating Temperature	-40°C
Panel Cutout Size	12 mm
Terminal type	Plug-In
Standards/Approvals	RoHS
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Green
Actuator Style	Cap
Switch Contact Current	65mA
Contact AC Voltage	2.5kV ac
Contact terminals	Gold plated nickel
LED terminals	Silver plated nickel

Key Features

The switch is IP67 rated, offering dust-tight and water immersion protection.
It operates over a temperature range of -40 to +85°C, suitable for harsh environments.
The terminal type is plug-in with gold plated nickel contact terminals for reliable connectivity.
The actuator has a cap style and the green LED is silver plated for durability.
The switch withstands contact AC voltages up to 2.5 kV and a contact current of 65mA.
This push button switch is sealed and vandal resistant, ensuring longevity in demanding settings.
Panel thickness compatibility ranges from 1 mm to 6 mm.
Complies with RoHS standards for environmental safety.

Product Description

The EOZ FL Series Illuminated Push Button Switch model FL12LG5 is a high-quality momentary push button designed for panel mounting with a 12 mm cutout size. It features a single-pole single-throw (SPST) contact configuration with a green LED illumination that lights the entire front cap, enhancing visibility and ease of use.

This switch benefits from an ingress protection rating of IP67, protecting it from dust and immersion in water, making it suitable for industrial, automation, electrical panels, and harsh environmental applications. The operating temperature range from -40°C to +85°C allows the switch to perform reliably under extreme temperature conditions.

The device uses gold plated nickel contact terminals for corrosion resistance and superior electrical conductivity, alongside silver plated nickel LED terminals. The plug-in terminal type ensures quick installation and maintenance. Designed with a vandal resistant sealed structure, the switch offers robust durability against physical damage.

The actuator has a cap style for user-friendly operation, compatible with panel thicknesses from 1 mm up to 6 mm. It complies with RoHS environmental standards, ensuring it is free from hazardous substances. With a contact current rating of 65mA and a contact voltage withstand of 2.5 kV AC, this switch is suitable for a wide range of electrical control applications.

Typical industrial use cases include electrical control stations, automation systems, machinery operator panels, and other commercial electrical installations requiring a reliable illuminated push button switch.

The switch's IP67 rating guarantees protection against dust and water ingress. Gold plated nickel contacts ensure long-term reliability and corrosion resistance. Momentary type operation allows quick and responsive switching.

Green LED illumination provides clear visual indication of switch status. RoHS compliant, supporting environmentally responsible manufacturing. Cap style actuator designed for easy and ergonomic operation. Panel cutout size standardised at 12 mm for easy integration.

Vandal resistant design offers enhanced durability in demanding environments.

This EOZ FL12LG5 model is crafted in France and is a trusted component for electrical and automation professionals seeking quality and durability in push button switches. Explore more products in the Push Button Switch category at EnvMart for a comprehensive array of electrical components.
