Omron WL Series Roller Lever Limit Switch, SPST, IP67 Aluminium Housing 500V AC 10A WLCA12-Y-N

Free Delivery in India | Lowest Global Shipping Charges

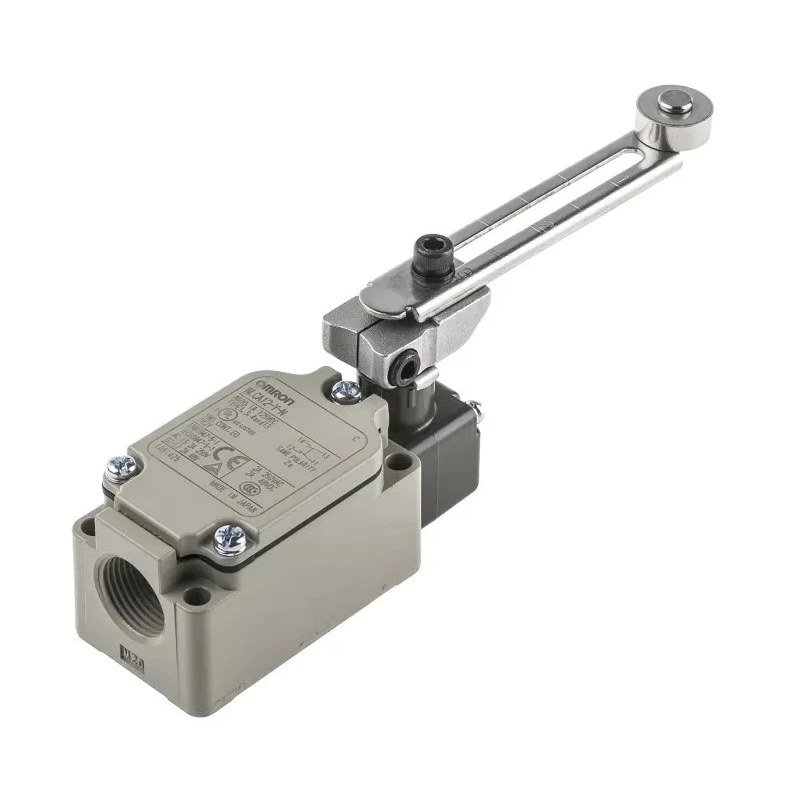

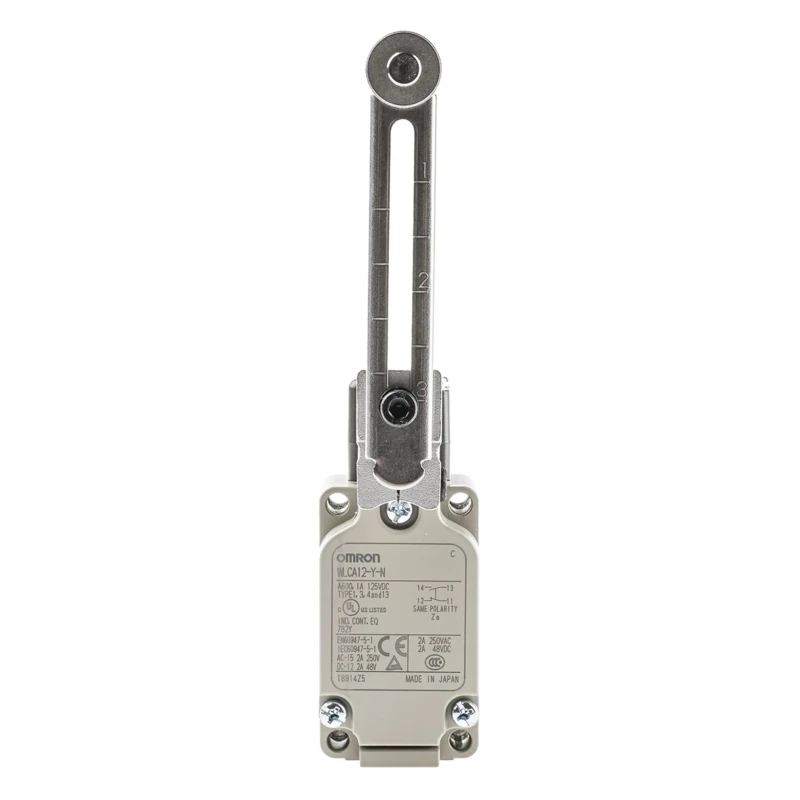

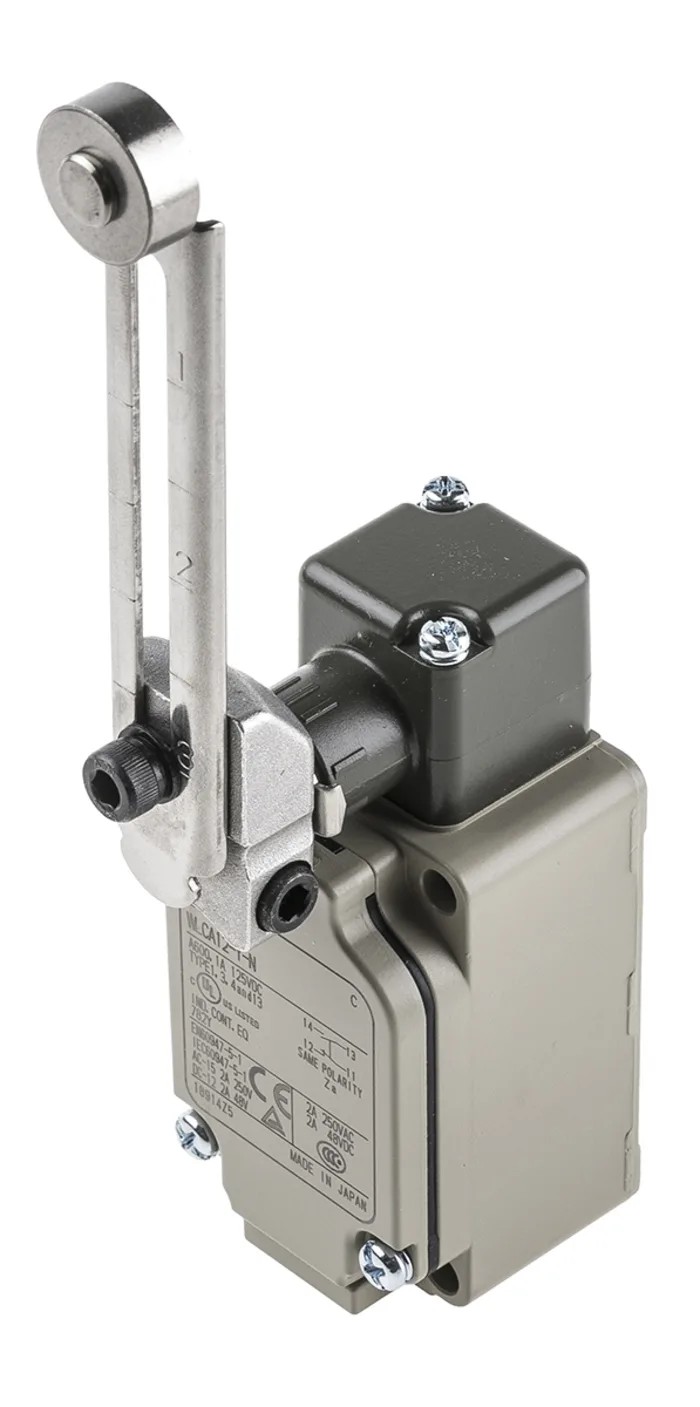

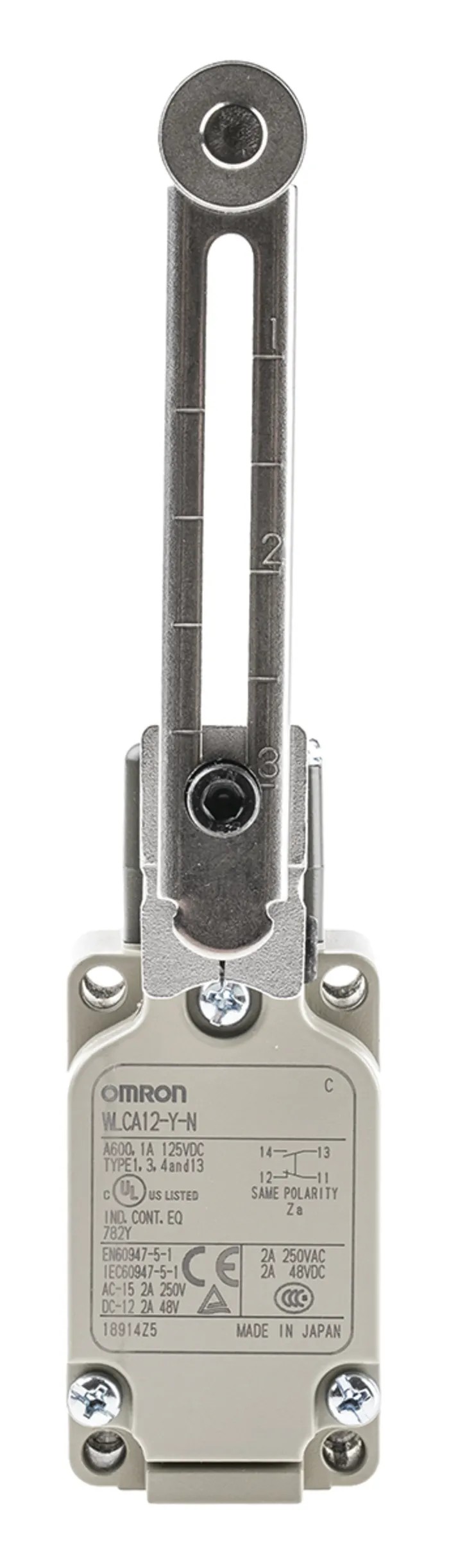

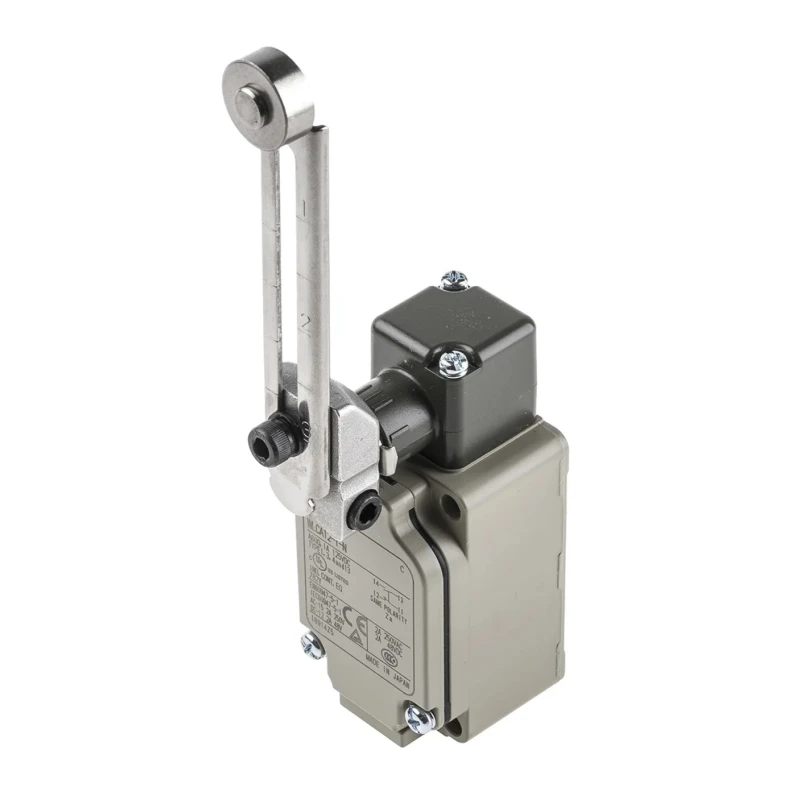

Omron WL Series Roller Lever Limit Switch, SPST, IP67 Aluminium Housing 500V AC 10A WLCA12-Y-N

Name: Omron WL Series Roller Lever Limit Switch, SPST, IP67 Aluminium Housing 500V AC 10A WLCA12-Y-N
Brand: Omron
SKU: 387254
Price: 140.95 USD
Availability: InStock



Category Limit Switch Brand Omron Condition New

Specifications

Country of Origin	Japan
Brand	Omron
Operating Temperature Range	- 10° to +80°C
Length	40mm
Model	WLCA12-Y-N
Depth	94.1mm
IP Rating	IP67
Width	53.2mm
Housing Material	Aluminium
Series	WL
Maximum Operating Temperature	85°C
Mounting Orientation	Front
Contact Configuration	SPST
Actuator Type	Roller Lever
Contact Rating	10A (Ith250Vac) max. 600ac, 250Vdc
Contact Type	Snap Action
Minimum Operating Temperature	-10°C
Switching Current	10A
Terminal type	M20
Standards/Approvals	RoHS
Operating Force	13.34N
Mechanical Life	15000000Operations
Switching DC Voltage	250V dc
Switching AC Voltage	500V ac
Conduit Entry	G 1/2
Two sets of snap action contacts	N/C and N/O

Key Features

Equipped with a roller lever actuator type ensuring precise mechanical actuation.
Rated for 10A switching current and supports up to 500V AC voltage.
Robust aluminium housing provides durable protection against dust and water ingress with IP67 rating.
Compact size with dimensions 40mm length, 94.1mm depth, and 53.2mm width for versatile installation.
Mechanical life rated for 15 million operations ensuring reliable performance in high-frequency applications.
Operates in temperature ranges from -10°C to +85°C suitable for various industrial environments.
Includes snap action contact configuration SPST for reliable switching.
Terminal type M20 with conduit entry G 1/2 facilitates secure electrical connections.

Product Description

Omron WLCA12-Y-N Roller Lever Limit Switch is engineered for high-performance automation and industrial control applications. It features a roller lever actuator type designed for precise actuation and long-term durability. The product has robust aluminium housing construction offering IP67 ingress protection, making it fully dust-tight and resistant to water immersion, ideal for use in harsh industrial environments.

This limit switch supports a switching current of up to 10A and can handle voltage ratings of 500V AC and 250V DC. Its snap action contact configuration (SPST) ensures dependable operation with two sets of contacts: normally closed (N/C) and normally open (N/O). The compact dimensions (40mm length, 94.1mm depth, 53.2mm width) enable installation in diverse mechanical setups.

With a mechanical life expectancy of 15 million operations and an operating temperature range from -10°C to +85°C, it is suited for demanding manufacturing, conveyor systems, welding operations, and preventive machinery maintenance. The terminal type M20 and conduit entry G 1/2 provide robust electrical connection and mounting options. This switch is manufactured in Japan and complies with RoHS environmental standards.

Equipped with roller lever actuator for sensitive and accurate detection. Designed to endure high-frequency operation with 15 million mechanical life cycles. Aluminium housing offers anticorrosive protection and ruggedness.

IP67 rating assures dust-tight and water-resistant stability for tough environments. Suitable for a range of industrial applications including automation and position control. Supports both AC and DC voltage ratings enhancing versatility.

Compliant with RoHS standards ensuring minimal environmental impact. Compact design facilitates fitment in restricted spaces.

This Omron WL Series limit switch is essential for industrial users seeking durable, precise, and reliable actuation control in automated systems. Browse the Electronics & Electricals > Switches & Sockets > Limit Switch category on EnvMart to explore similar precision components.
