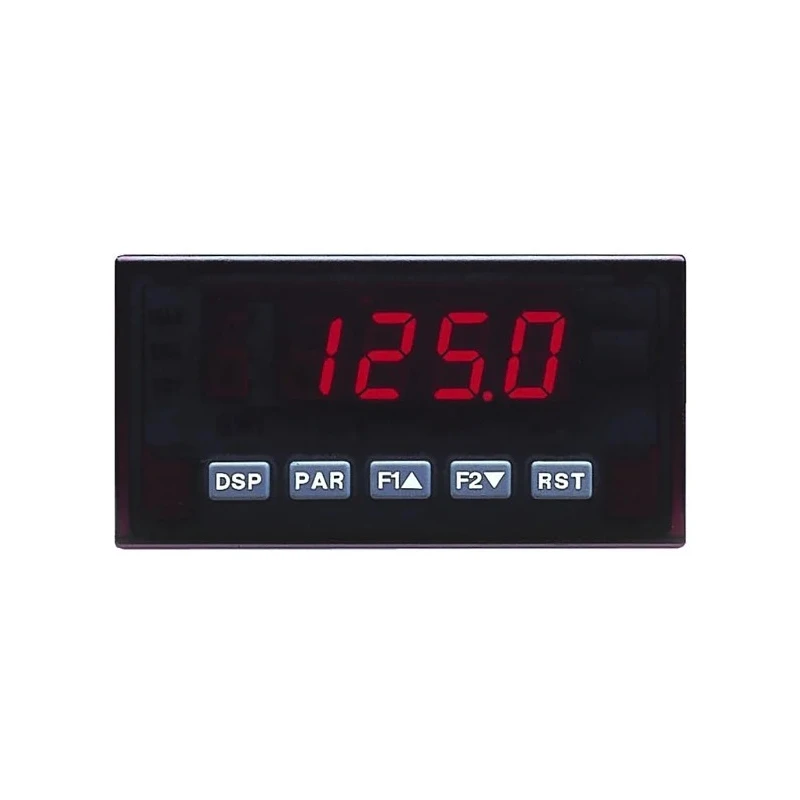

Red Lion Digital Panel Multifunction Meter with LED Display for Strain, Current, Temperature, Voltage, 45 mm x 92 mm PAXH0000

Red Lion PAXH0000 Digital Panel Multifunction Meter is a versatile and reliable electronic instrument engineered for industrial, laboratory, HVAC, and manufacturing applications requiring precise monitoring of strain, current, temperature, and voltage parameters.

The device features a sunlight-readable 5-digit LED display with 14.2 mm digit height, ensuring high visibility even in challenging lighting conditions. Its compact panel cutout size measures 45 mm in height and 92 mm in width with a depth of 104.1 mm, making it suitable for dense panel installations.

This meter supports multiple analog inputs including DC voltage/current, AC true RMS voltage/current, process signals, temperature sensors, and strain gauge bridge inputs, covering a vast range of measurement needs. It includes advanced programmable function keys and user inputs to tailor the meter operation, along with 16-point scaling capability to accurately handle non-linear process variables.

Additional features include a 9-digit totalizer for batching, a variable intensity display for readability, and a NEMA 4X/IP65 sealed front bezel that protects against dust and water ingress, ensuring durability in industrial environments.

The product complies with international quality and safety standards such as CE Certification, cUL Recognition, and UL Approval, reinforcing its dependability for critical process control applications.

Operating temperature ranges from 0°C to 50°C, accommodating a wide array of installation environments. The meter’s configuration is facilitated using Crimson® programming software, empowering users to easily customize settings and optimize performance.

Features a 5-digit, 14.2 mm tall red sunlight-readable LED display for clear visibility. Includes programmable function keys and user inputs for customizable operation. Offers a variable intensity display and 16-point scaling for non-linear process applications.

Equipped with a 9-digit totalizer with batching capability for advanced measurement. Constructed with a NEMA 4X/IP65 sealed front bezel providing front panel protection. Operates reliably between 0°C to 50°C operating temperature range.

Compatible with multiple input types including DC voltage/current, AC voltage/current, process signals, temperature, and strain gauge inputs. Certified to CE, cUL Recognized, and UL Approved standards ensuring quality and safety.

Designed with a compact footprint featuring cutout dimensions of 45 mm height by 92 mm width and 104.1 mm depth. Includes Crimson® programming software for flexible user configuration.

This multifunction meter is ideal for use in industrial automation systems, process control, electrical monitoring, HVAC systems, manufacturing plants, and laboratory instrumentation.
