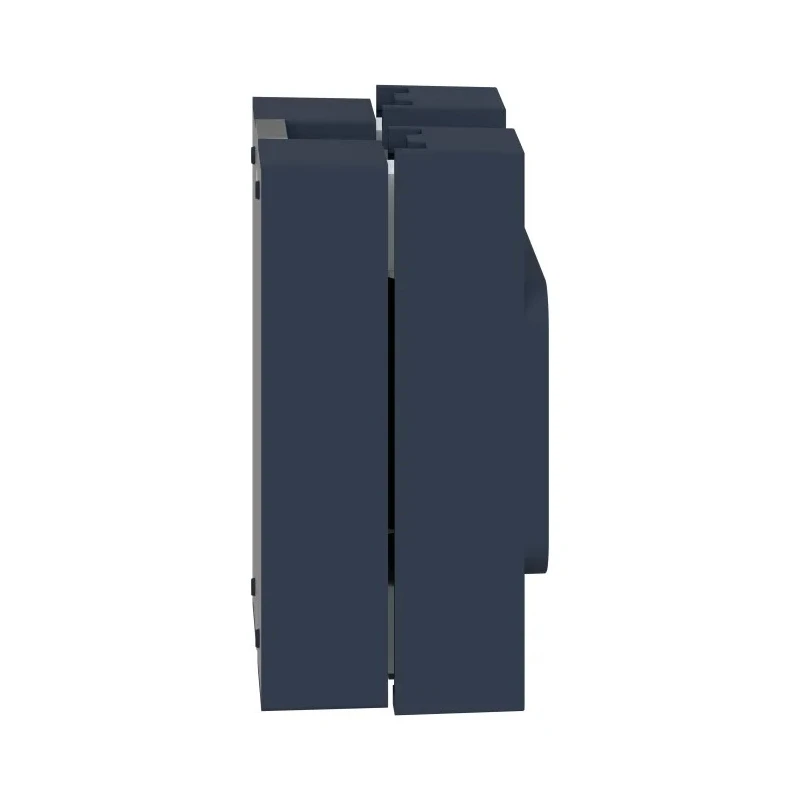

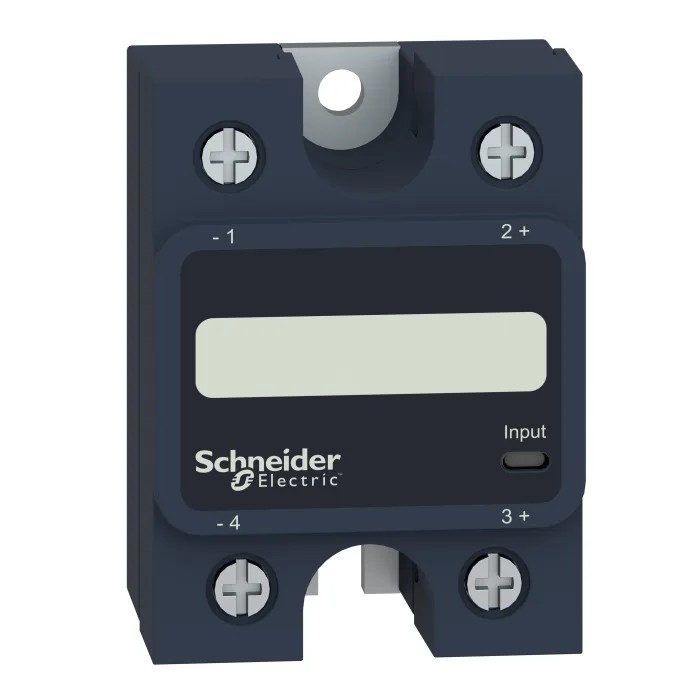

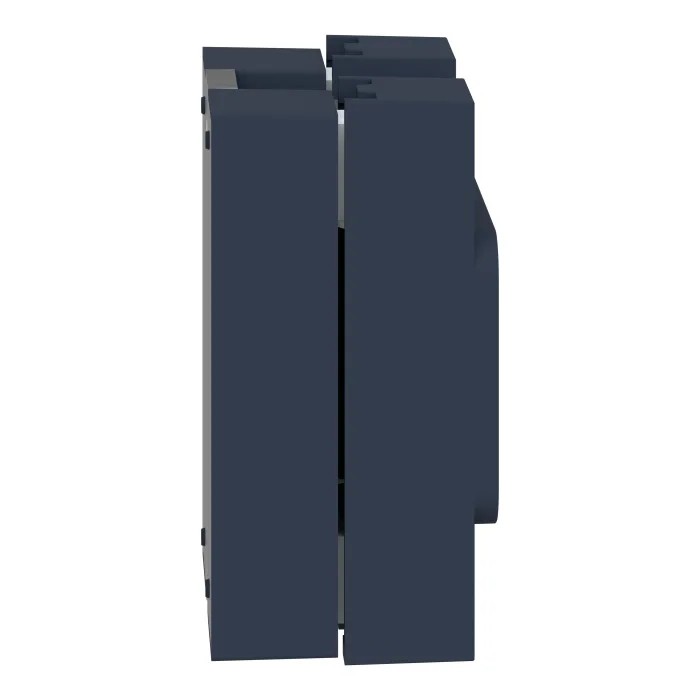

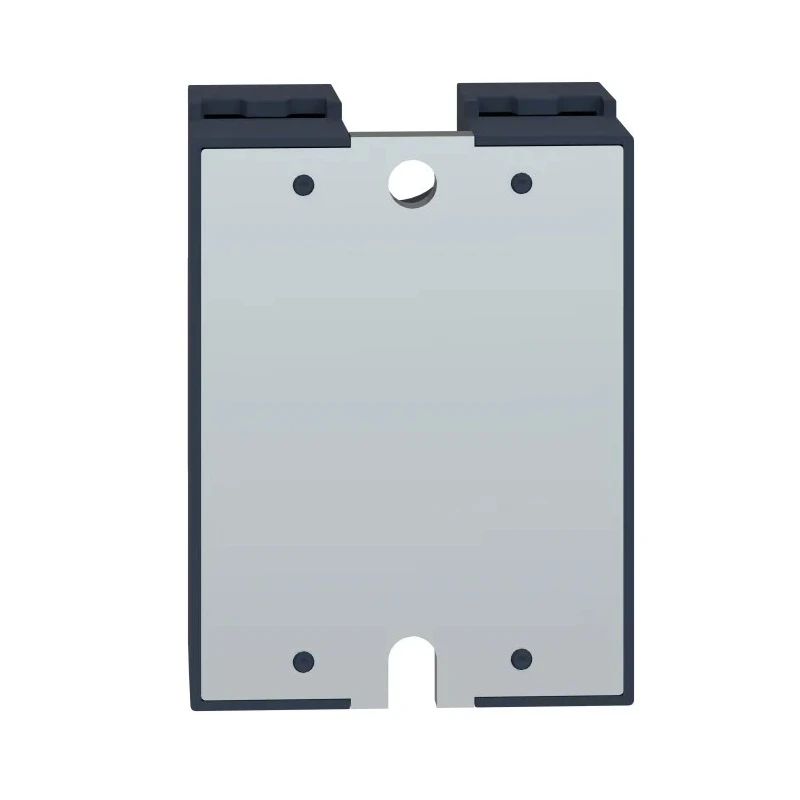

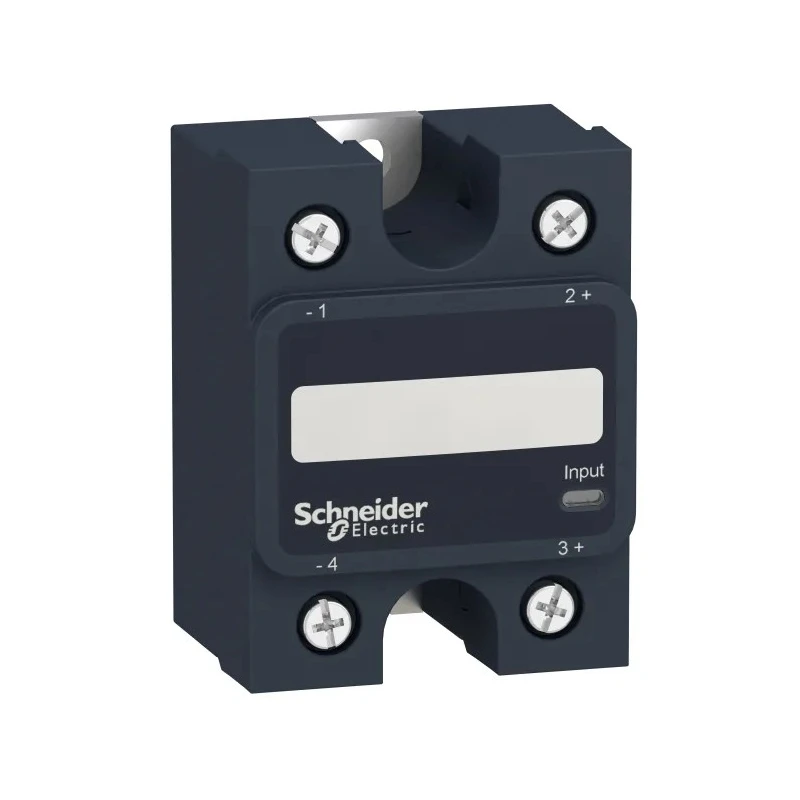

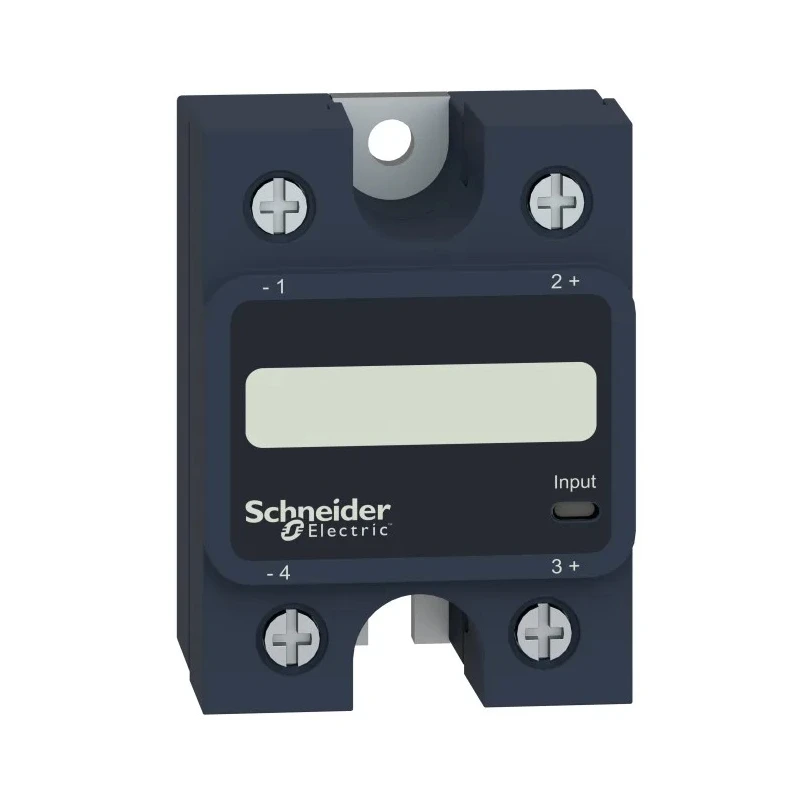

Schneider Electric Harmony Relay Series Solid State Relay 75 A Load Panel Mount 660 V AC Load 32 V DC Control SSP1A475BDT
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 58.9mm |
| Length | 44.5mm |
| Model | SSP1A475BDT |
| IP Rating | IP20 |
| Width | 34.29mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 75A |
| Standards/Approvals | UL, RoHS, REACH, EN/IEC 62314, EAC, CSA, CE |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mA |
Key Features
- Rated for maximum load current of 75 amperes.
- Panel mount type with screw terminal connections for secure installation.
- Operates with zero voltage switching for resistive loads.
- Visual input status indicator and alarm output for diagnostics.
- Silent operation due to solid state design without moving parts.
- Suitable for industrial machines, packaging, HVAC, textile, and medical equipment.
- Operating temperature range from -40°C to 80°C.
- Complies with UL, RoHS, REACH, EN/IEC 62314, EAC, CSA, and CE standards.
Product Description
Schneider Electric SSP1A475BDT Harmony Relay Series solid state relay offers high-performance switching with a maximum load current of 75 amperes and a load voltage range from 48 V to 660 V AC. This panel mount relay utilizes an SCR output type with zero voltage switching, making it ideal for resistive load control in industrial environments.
The device features a screw terminal type for reliable and secure connections and an IP20 rating ensuring protection against solid objects. It includes status indication via a visual input indicator and an alarm output, enabling quick diagnostics and minimal downtime. The relay also includes a test button that facilitates easy debugging and commissioning.
Thanks to its fully electronic design without moving parts, the SSP1A475BDT ensures silent operation and a maintenance-free unlimited lifespan, suitable for continuous and frequent switching applications.
Its compact form factor with dimensions of 58.9 mm in height, 34.29 mm in width, and 44.5 mm in length allows for space-efficient panel mounting. It operates effectively across a temperature range of -40°C to 80°C and withstands shock and vibration for sustainable use in harsh industrial conditions.
Typical applications include industrial machinery, packaging machines, injection molding, HVAC systems, textile machines, and medical equipment, supporting efficient and reliable operation in demanding environments.
Rated for maximum load current of 75 amperes. Panel mount with screw terminals for secure installation. Operates at load voltage 48 V to 660 V AC with zero voltage switching. Visual input status indicator and alarm output for fast diagnostics.
Fully electronic with no moving parts ensures silent and maintenance-free operation. Compact size of 58.9 mm height, 34.29 mm width, and 44.5 mm length. Operating temperature range from -40°C to 80°C. Complies with international standards including UL, RoHS, REACH, EN/IEC 62314, EAC, CSA, and CE.
Manufactured in Mexico for assured quality. Explore the range of Schneider Electric Solid State Relays and related products for advanced control solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 75 amperes.
It supports a load voltage range from 48 V to 660 V AC.
This relay operates with zero voltage switching, making it suitable for resistive load control.
The dimensions are 58.9 mm in height, 34.29 mm in width, and 44.5 mm in length.
It operates effectively across a temperature range of -40°C to 80°C.
This model features screw terminal connections for secure installation.
It complies with UL, RoHS, REACH, EN/IEC 62314, EAC, CSA, and CE standards.
The IP rating of this relay is IP20, ensuring protection against solid objects.
Yes, it includes a visual input status indicator and an alarm output for diagnostics.
The minimum control voltage is 4V DC, and the maximum control voltage is 32V DC.
Typical applications include industrial machinery, packaging machines, HVAC systems, and medical equipment.
This model is manufactured in Mexico.
