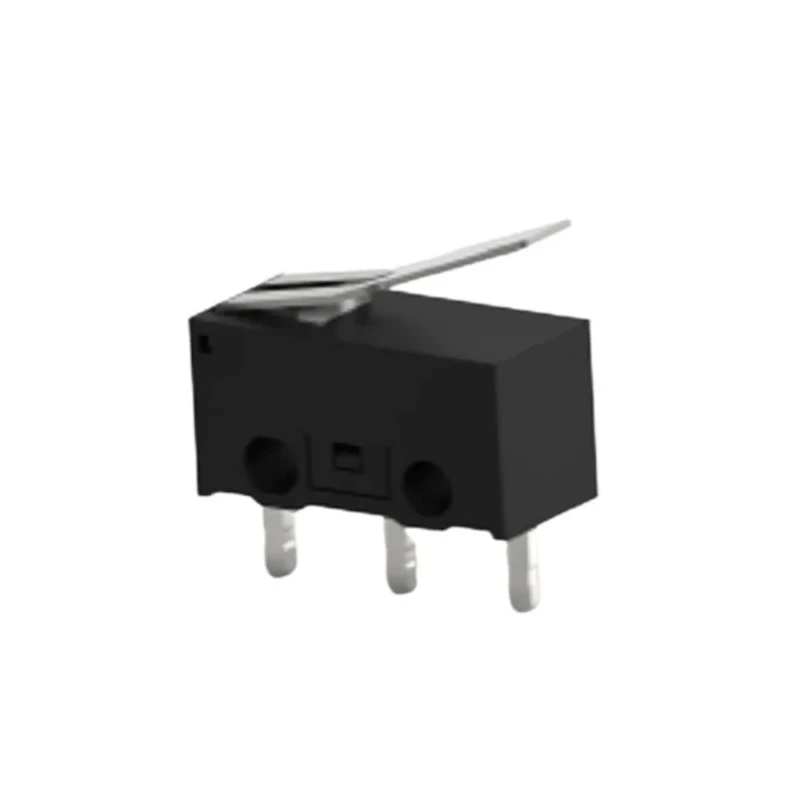

TE Connectivity Lever Snap Action Micro Switch PCB Terminal 0.1A SPDT SAJ101XBL0N74SDTPTQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XBL0N74SDTPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- The switch features a lever actuator type for precise control.
- It supports a mechanical life of one million cycles for high durability.
- Operating temperature ranges from -25°C to 75°C making it suitable for varied environments.
- The miniature microswitch conforms to UL standards and is RoHS compliant.
- Designed for applications in home appliances, consumer electronics, and factory automation.
- PCB terminal models resist flux for reliability during soldering processes.
- Provides a consistent operating force of 0.75N ensuring responsive operation.
- Its SPDT contact configuration supports single-pole double-throw switching functionality.
Product Description
TE Connectivity SAJ101XBL0N74SDTPTQ lever snap action micro switch is a miniature, reliable switching device designed to convert mechanical action into electrical signals. Its 0.1A rating and SPDT contact configuration make it ideal for precise control tasks in various industrial and consumer electronics environments.
The PCB terminal design enhances its compatibility with printed circuit boards and provides resistance to flux during soldering, ensuring long-term connection reliability.
This micro switch operates effectively across temperatures ranging from -25°C to 75°C, making it suitable for applications in home appliances, factory automation systems, and consumer electronic devices. Its lever actuator allows smooth mechanical action translated into quick and accurate electrical switching.
With a mechanical life rated at one million cycles, this product offers durability and dependable performance. The miniature form factor allows seamless inclusion into existing electronic designs without requiring modifications.
The switch meets RoHS compliance standards and UL certification requirements, underlining its quality and safety for industrial use. While it lacks hazardous area certification, it remains well-suited for general industrial, manufacturing, and automation applications.
The switch features a lever actuator type for precise control. It supports a mechanical life of one million cycles for high durability. Operating temperature ranges from -25°C to 75°C making it suitable for varied environments.
The miniature microswitch conforms to UL standards and is RoHS compliant. Designed for applications in home appliances, consumer electronics, and factory automation. PCB terminal models resist flux for reliability during soldering processes.
Provides a consistent operating force of 0.75N ensuring responsive operation. Its SPDT contact configuration supports single-pole double-throw switching functionality. Compact size allows integration in existing designs requiring miniature switches.
Does not have hazardous area certification but meets required safety approvals.
Choose TE Connectivity micro switches for dependable performance in industrial automation, electrical control systems, laboratory equipment, and consumer electronics. Explore EnvMart for a broad range of electrical components and Micro Switches optimized for diverse applications and environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 75°C.
This model features a single-pole double-throw (SPDT) contact configuration.
The mechanical life of this switch is rated at one million cycles.
It provides a consistent operating force of 0.75N.
This model uses a lever actuator type for precise control.
The operating temperature range for this micro switch is from -25°C to 75°C.
It features a PCB terminal design, enhancing compatibility with printed circuit boards.
Yes, it conforms to RoHS standards and meets UL certification requirements.
It is designed for applications in home appliances, consumer electronics, and factory automation.
The switch contact current rating is 0.1A.
Yes, the PCB terminal models resist flux for reliability during soldering processes.
The country of origin for this micro switch is India.
