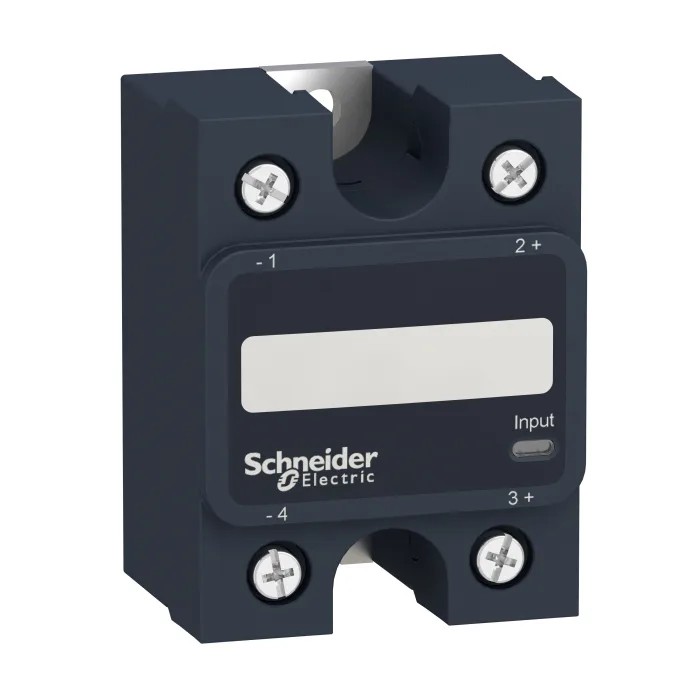

Schneider Electric Harmony Relay Series Solid State Relay, Panel Mount, 50 A Load Current, 300 V AC Load, 32 V DC SSP1A150BD
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Schneider Electric |
| Height | 58.9mm |
| Length | 44.5mm |
| Model | SSP1A150BD |
| IP Rating | IP20 |
| Width | 34.29mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | Harmony Relay |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | REACH, EN/IEC 62314, EAC, RoHS, UL, CSA, CE |
| Maximum Load Voltage | 300V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 1mA |
Key Features
- Offers zero voltage switching for efficient load control.
- Equipped with secure screw terminal connections.
- Supports a maximum operating temperature of 80°C.
- Compact dimensions with height 58.9 mm, width 34.29 mm, and length 44.5 mm.
- Advanced safety standards including REACH, EN/IEC 62314, RoHS, UL, CSA, and CE compliance.
- Output type based on SCR technology for silent and reliable switching.
- IP20 rated for protection against solid objects.
- Minimal off state leakage current of 1 mA to conserve energy.
Product Description
Schneider Electric SSP1A150BD Harmony Relay Series Solid State Relay provides robust performance for industrial and automation applications with a panel mount design.
It features a maximum load current rating of 50 A and supports AC loads up to 300 V, controlled by a DC control voltage up to 32 V. This relay uses zero voltage switching technology, enhancing its reliability and efficiency by switching loads only at zero voltage points.
The relay is equipped with screw terminal connections ensuring a secure and stable wiring system, and has an IP20 rating that offers protection against touch and solid objects. With dimensions of 58.9 mm height, 34.29 mm width, and 44.5 mm length, the device fits well into panel mount installations, saving space and offering ease of maintenance.
This solid state relay complies with a range of international safety and quality standards including REACH, EN/IEC 62314, RoHS, UL, CSA, and CE marking, making it suitable for industrial machines, packaging machinery, HVAC systems, textile machines, and various building and medical equipment.
Zero voltage switching reduces electrical noise and prolongs device life. Maintenance free with high switching frequency and silent operation. Durable design free from contact contamination and resistant to shock and vibration.
Compact size with advanced diagnostic capabilities via signal alarm output. Ideal for controlling a variety of industrial AC loads. Designed in Mexico, the Schneider Electric SSP1A150BD relay is built for reliability in harsh environments.
Explore more components in the Solid State Relay category at EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current of this solid state relay is 50 A.
It supports a maximum load voltage of 300 V AC.
This relay accepts a control voltage range from 3 V DC to 32 V DC.
The dimensions are 58.9 mm in height, 34.29 mm in width, and 44.5 mm in length.
It uses zero voltage switching technology for efficient load control.
The relay has an IP20 rating, providing protection against solid objects.
The minimum operating temperature is -40°C.
It is equipped with screw terminal connections for secure wiring.
This relay complies with REACH, EN/IEC 62314, RoHS, UL, CSA, and CE standards.
The off state leakage current is minimal at 1 mA.
This relay is manufactured in Mexico.
It is suitable for industrial machines, packaging machinery, HVAC systems, textile machines, and various building and medical equipment.
