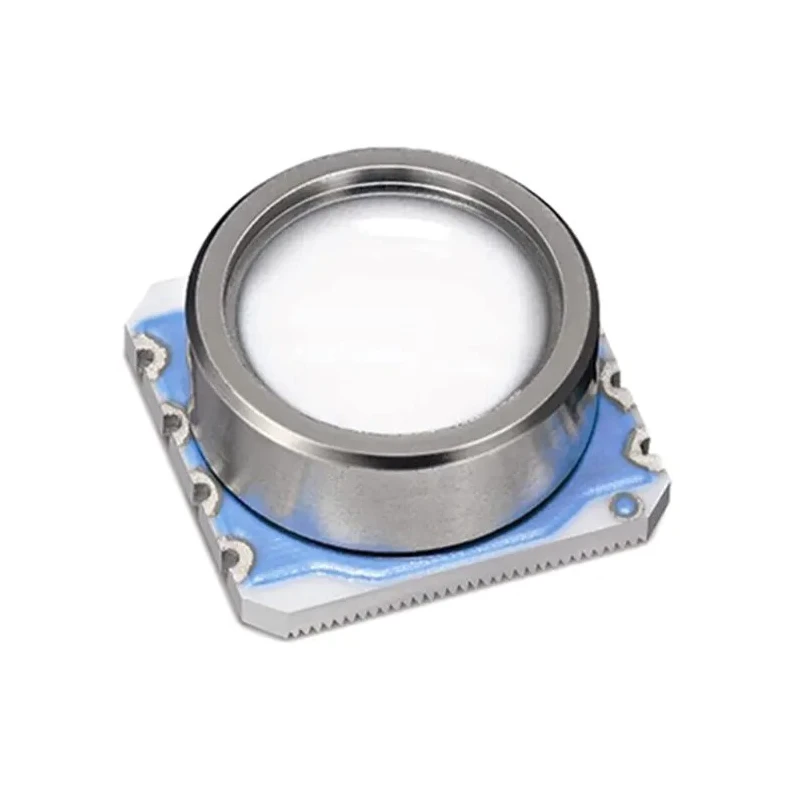

TE Connectivity Barometric Pressure Sensor Surface Mount Absolute Sensor 1.8-3.6V 8-Pin MS580314BA01-00
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±2.5 mbar |
| Brand | TE Connectivity |
| Maximum Operating Pressure | 14 bar |
| Height | 5mm |
| Length | 3mm |
| Model | MS580314BA01-00 |
| Sensor Type | Absolute Pressure Sensor |
| Width | 950μm |
| Mount Type | Surface |
| Series | MS580314BA01-00 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Output Voltage | 0mV |
| Minimum Operating Pressure | 0bar |
| Maximum Overload Pressure | 30bar |
Key Features
- Operates with a minimum supply voltage of 1.8V and maximum of 3.6V.
- Measures absolute pressure with a maximum operating pressure of 14 bar and overload pressure up to 30 bar.
- Provides high accuracy of ±2.5 mbar for precise pressure measurement.
- Compact dimensions with 5mm height, 3mm length, and 950μm width.
- Wide operating temperature range from -40°C to 85°C for diverse applications.
- Equipped with an 8-pin surface mount package for easy integration on PCB.
- Features integrated digital pressure sensor with no external components required.
- Suitable for industrial, laboratory, and environmental monitoring applications.
Product Description
TE Connectivity MS580314BA01-00 Barometric Pressure Sensor is an advanced surface mount absolute pressure sensor designed for precise pressure measurement in demanding environments. Featuring a compact 8-pin package and miniature dimensions (5mm height, 3mm length, 950μm width), it allows integration into a diverse range of electronic devices.
Operating with a supply voltage range of 1.8V to 3.6V, this sensor supports accurate pressure readings with a maximum operating pressure of 14 bar and a maximum overload pressure of 30 bar. It offers an accuracy of ±2.5 mbar, enabling precise measurements suitable for environmental and industrial monitoring systems.
The sensor delivers digital pressure and temperature data via integrated 24-bit delta-sigma ADC, which supports I2C and SPI interfaces, optimizing current consumption and conversion speed. It contains factory-calibrated coefficients ensuring linearity and reliability without external components.
Designed for a broad temperature range from -40°C to 85°C, the sensor is suitable for use in various applications such as altimeters, variometers, diving computers, dataloggers, bike computers, and other embedded systems requiring miniature pressure sensors. It can be hermetically sealed or protected with gel and stainless steel caps for outdoor use.
Operates over a wide supply voltage range from 1.8 to 3.6 volts. Offers compact 8-pin surface mount configuration for PCB assembly. Integrated digital pressure sensor with no external parts needed. High stability and low hysteresis for accurate pressure and temperature data.
Suitable for rugged industrial and outdoor instrumentation applications. Supports both I2C and SPI digital communication interfaces. Extended operating temperature range down to -40°C and up to 85°C. Can be sealed hermetically for protection against harsh conditions.
Ideal for measuring barometric and absolute pressure in electronic devices and control systems. This product is a reliable choice for industrial, laboratory, environmental monitoring, HVAC, and manufacturing sectors requiring precise pressure sensing instrumentation.
Explore more Pressure Sensor ICs and industrial sensors at EnvMart for your specialized equipment needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates with a supply voltage range of 1.8V to 3.6V.
It has a maximum operating pressure of 14 bar and a maximum overload pressure of 30 bar.
The sensor provides an accuracy of ±2.5 mbar for precise pressure measurement.
The sensor has compact dimensions of 5mm in height, 3mm in length, and 950μm in width.
It operates over a wide temperature range from -40°C to 85°C.
This model measures absolute pressure, making it suitable for various applications.
It supports both I2C and SPI digital communication interfaces.
No, it is an integrated digital pressure sensor that requires no external components for operation.
This sensor is suitable for applications such as altimeters, variometers, diving computers, and environmental monitoring systems.
The sensor features an 8-pin surface mount package for easy integration on PCBs.
The country of origin for this sensor is India.
The minimum operating pressure for this model is 0 bar.
