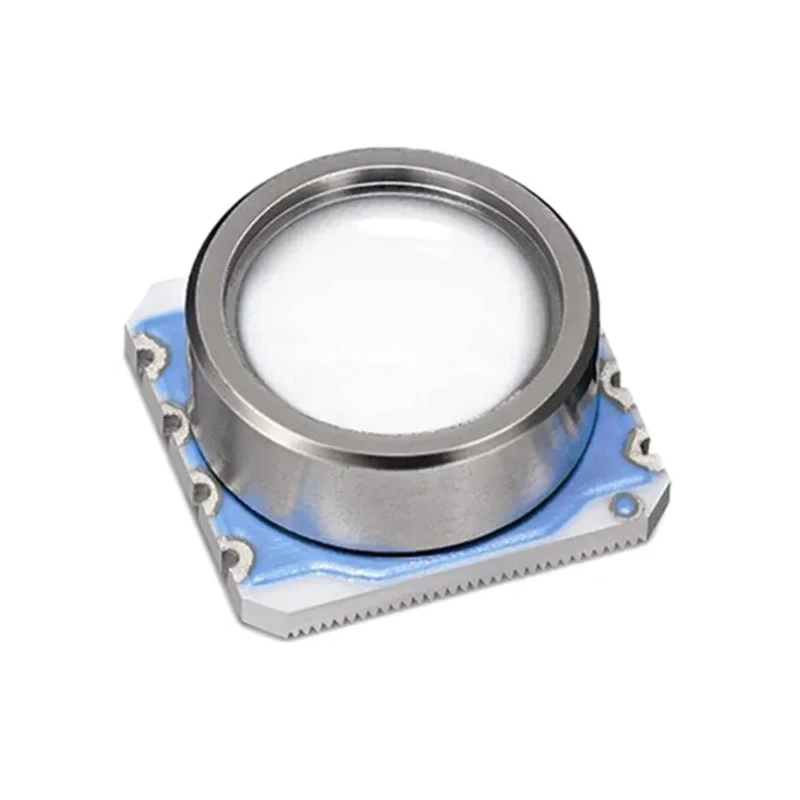

TE Connectivity Barometric Pressure Sensor Surface Mount, Absolute, 1.8-3.6 V, 14 bar Max Operating Pressure MS580314BA01-00
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±2.5 mbar |
| Brand | TE Connectivity |
| Maximum Operating Pressure | 14 bar |
| Height | 5mm |
| Length | 3mm |
| Model | MS580314BA01-00 |
| Sensor Type | Absolute Pressure Sensor |
| Width | 950μm |
| Mount Type | Surface |
| Series | MS580314BA01-00 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Output Voltage | 0mV |
| Minimum Operating Pressure | 0bar |
| Maximum Overload Pressure | 30bar |
Key Features
- The sensor supports a maximum operating pressure of 14 bar and a maximum overload pressure of 30 bar.
- It features 8 pins and compact dimensions of 5mm height, 3mm length, and 950μm width.
- The accuracy of the device is ±2.5 mbar ensuring precise pressure measurement.
- The operating temperature range spans from -40°C to 85°C for varied environments.
- Interfaces via I2C and SPI for easy integration with microcontrollers.
- No special automotive certification is provided with this sensor.
- The sensor integrates a 24-bit digital ΔΣ ADC for high resolution pressure and temperature measurement.
- Hermetically sealed options allow use in outdoor and industrial applications.
Product Description
TE Connectivity MS580314BA01-00 is a miniature surface mount barometric pressure sensor designed for high precision absolute pressure measurement within a compact footprint measuring 5mm in height, 3mm length, and 950μm width.
This sensor operates at a supply voltage range of 1.8 to 3.6 volts and can measure pressures up to 14 bar with an overload capacity of 30 bar. It provides accurate readings with ±2.5 mbar accuracy across a broad temperature range from -40°C to 85°C, enabling reliable performance in industrial and environmental applications.
The sensor includes an integrated ultra-low power 24-bit Delta-Sigma (ΔΣ) analog-to-digital converter (ADC) with internal factory calibration, ensuring precise digital pressure and temperature data output. The 8-pin device supports I2C and SPI digital communication interfaces, allowing seamless integration with various microcontrollers and embedded systems.
Designed without the need for external components, the MS580314BA01-00 is suitable for hermetic sealing, including versions with a water-protective gel and anti-magnetic stainless steel cap, making it ideal for outdoor or rugged environments.
Applications include variometers, mobile altimeters, depth measurement systems, adventure watches, bike computers, data loggers, and diving instruments, where precise atmospheric or fluid pressure measurement is required.
The sensor supports absolute pressure sensing with high linearity and low hysteresis. It is optimized for low power consumption and flexible operation modes. Its compact surface mount form factor allows use in space-constrained designs.
Does not have automotive-specific certifications but is suitable for many industrial and commercial uses. Factory calibration ensures stable pressure and temperature signals over time. Explore more Pressure Sensor ICs at EnvMart to find solutions tailored to industrial, laboratory, and commercial instrumentation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 14 bar, with a maximum overload pressure of 30 bar.
The accuracy of the MS580314BA01-00 is ±2.5 mbar, ensuring precise pressure measurement.
It operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
The sensor supports I2C and SPI digital communication interfaces for easy integration with microcontrollers.
This sensor has compact dimensions of 5mm in height, 3mm in length, and 950μm in width.
The MS580314BA01-00 features 8 pins for connectivity.
It provides absolute pressure measurement with high linearity and low hysteresis.
This sensor does not have automotive-specific certifications but is suitable for many industrial and commercial applications.
The supply voltage range for the MS580314BA01-00 is between 1.8V and 3.6V.
It is suitable for applications such as variometers, mobile altimeters, depth measurement systems, adventure watches, and diving instruments.
It integrates a 24-bit digital ΔΣ ADC for high-resolution pressure and temperature measurement.
The country of origin for this sensor is India.
