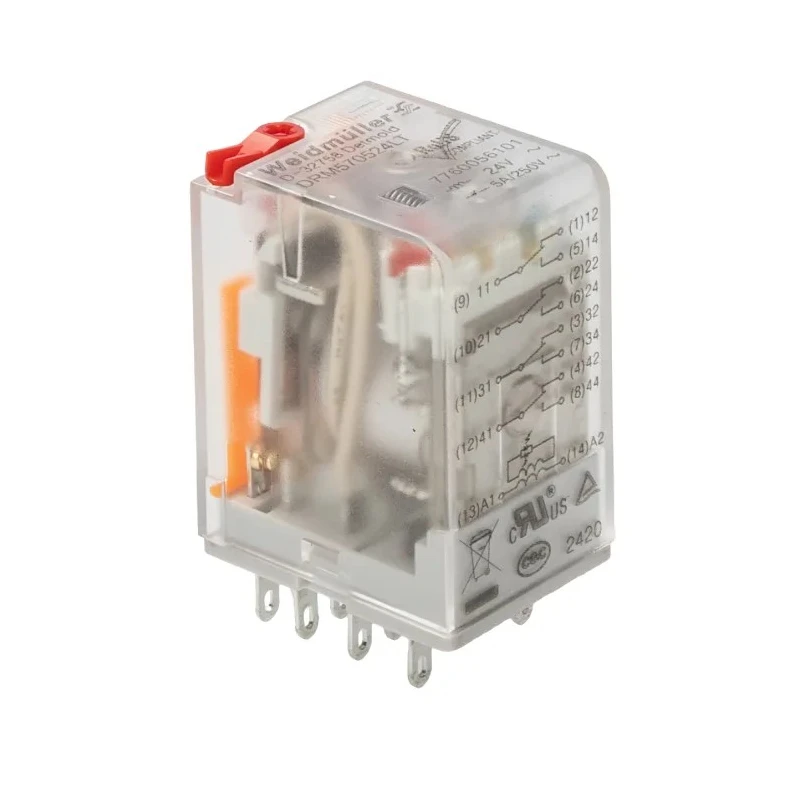

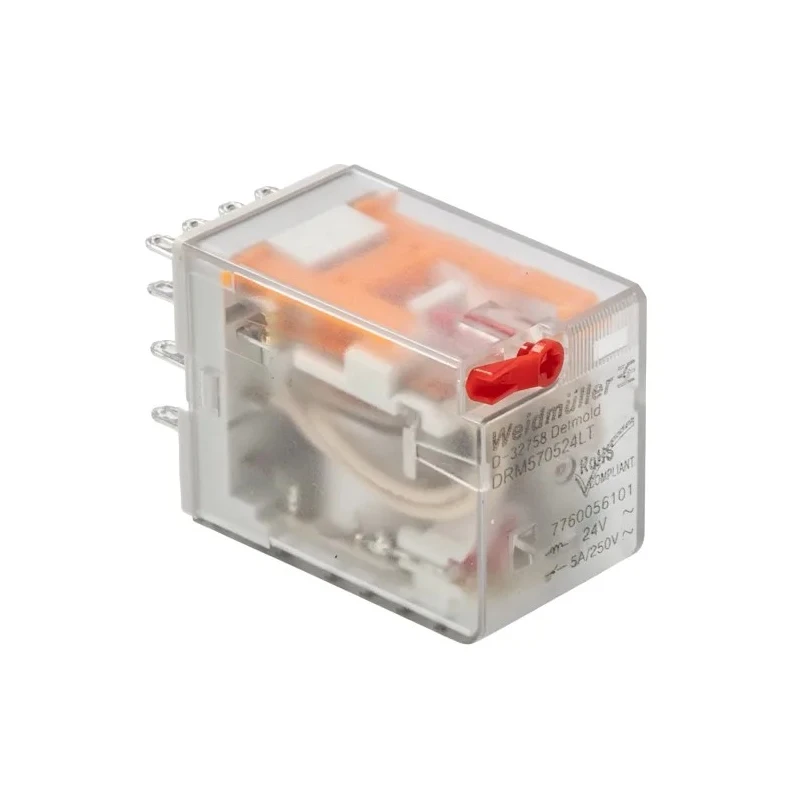

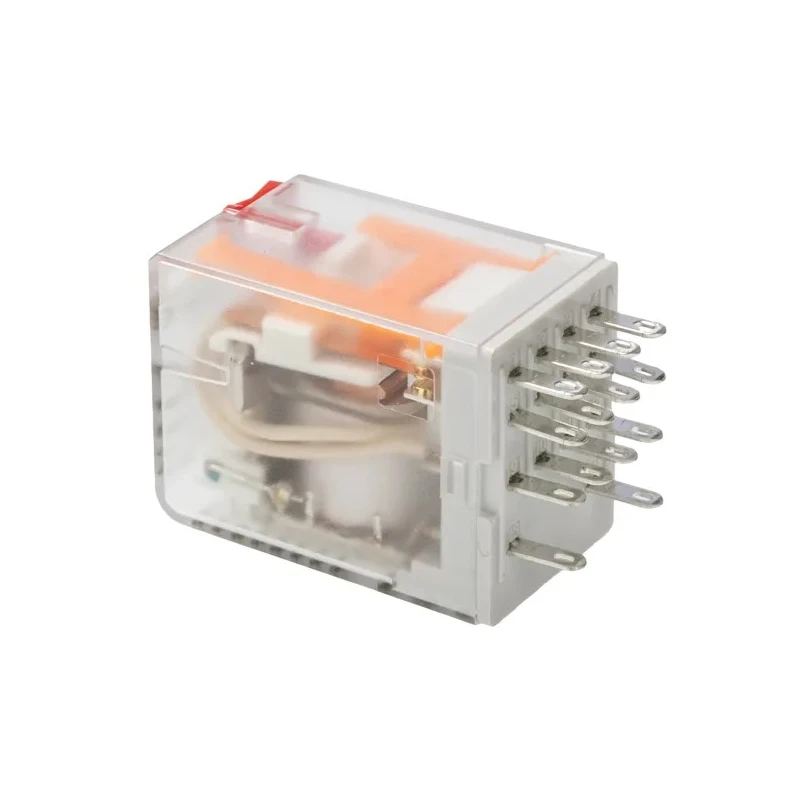

Weidmüller Panel Power Relay 24V AC Coil 5A Switching Current 4PDT DRM Series 7760056101

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller Panel Power Relay 24V AC Coil 5A Switching Current 4PDT DRM Series 7760056101

Name: Weidmüller Panel Power Relay 24V AC Coil 5A Switching Current 4PDT DRM Series 7760056101
Brand: Weidmuller
SKU: 385677
Price: 16.72 USD
Availability: InStock



Category Power Relay Brand Weidmuller Condition New

Specifications

Country of Origin	China
Brand	Weidmüller
Height	28mm
Length	21.5mm
Width	21.5mm
Mount Type	Panel
Contact Material	Silver Alloy
Series	DRM
Maximum Operating Temperature	55°C
Contact Configuration	4PDT
Minimum Operating Temperature	-40°C
Switching Current	5A
Terminal type	Plug-In
Standards/Approvals	cURus
Coil Resistance	160Ω
Coil Voltage	24V ac
Switching AC Voltage	250V ac

Key Features

This relay features a durable silver alloy contact material for enhanced conductivity and longevity.
The coil voltage of 24V AC ensures compatibility with common industrial power supplies.
The compact 21.5 x 21.5 x 28 mm panel-mount design saves space and fits standard electrical panels.
Rated for switching AC voltage up to 250V, suitable for various control applications.
Operating temperature ranges from -40°C to 55°C, supporting harsh environments.
The plug-in terminal type allows for easy installation and maintenance.
Designed to meet cURus standards for safety and performance.
Ideal for industrial automation, power distribution panels, HVAC systems, and building automation.

Product Description

Weidmüller 7760056101 is a panel power relay from the DRM series featuring a 24V AC coil and a switching current capacity of 5A with a 4PDT (four-pole double-throw) contact configuration. The relay utilizes silver alloy contacts to provide excellent conductivity and durability, making it suitable for demanding electrical applications.

This compact relay has dimensions of 21.5 mm length, 21.5 mm width, and 28 mm height, designed for panel mounting with a plug-in terminal type that facilitates installation and replacement.

Its operation supports an AC switching voltage up to 250V and can function reliably in environments with temperatures ranging from -40°C to 55°C. It conforms to cURus safety and performance standards, ensuring dependable industrial usage.

Applications include use in industrial automation control systems, power distribution and control panels, HVAC systems, and building automation where stable switching and compact form are essential.

This relay features a durable silver alloy contact material for enhanced conductivity and longevity. The coil voltage of 24V AC ensures compatibility with common industrial power supplies. The compact 21.5 x 21.5 x 28 mm panel-mount design saves space and fits standard electrical panels.

Rated for switching AC voltage up to 250V, suitable for various control applications. Operating temperature ranges from -40°C to 55°C, supporting harsh environments. The plug-in terminal type allows for easy installation and maintenance.

Designed to meet cURus standards for safety and performance. Ideal for industrial automation, power distribution panels, HVAC systems, and building automation. The DRM series ensures versatility and reliable operation in control systems.

This Weidmüller panel power relay is a precise and robust solution for electrical switching needs in commercial and industrial environments. Browse more Power Relays and related components at EnvMart for your automation and electrical system applications.
