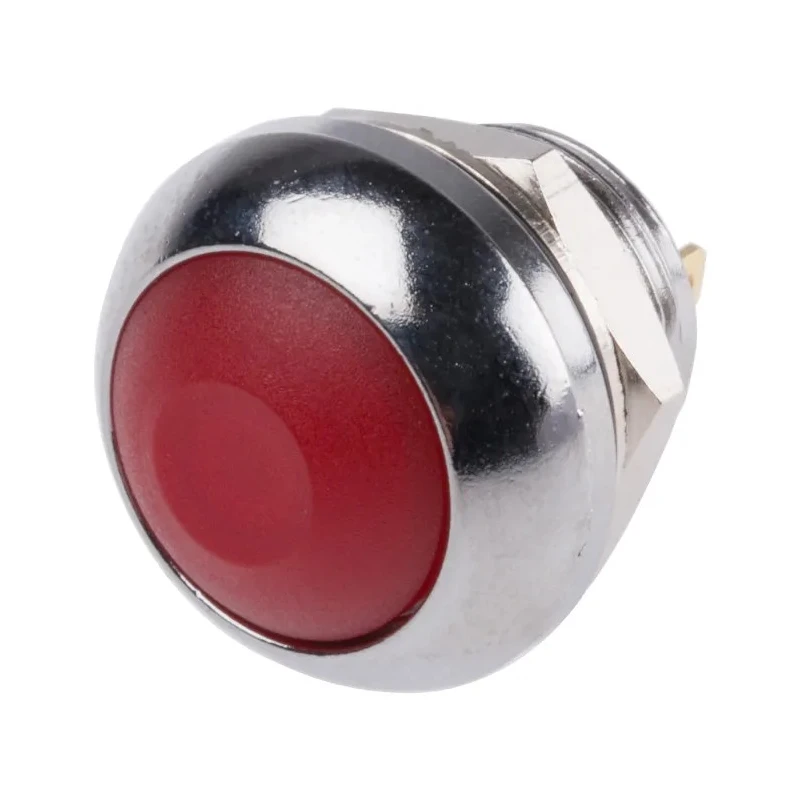

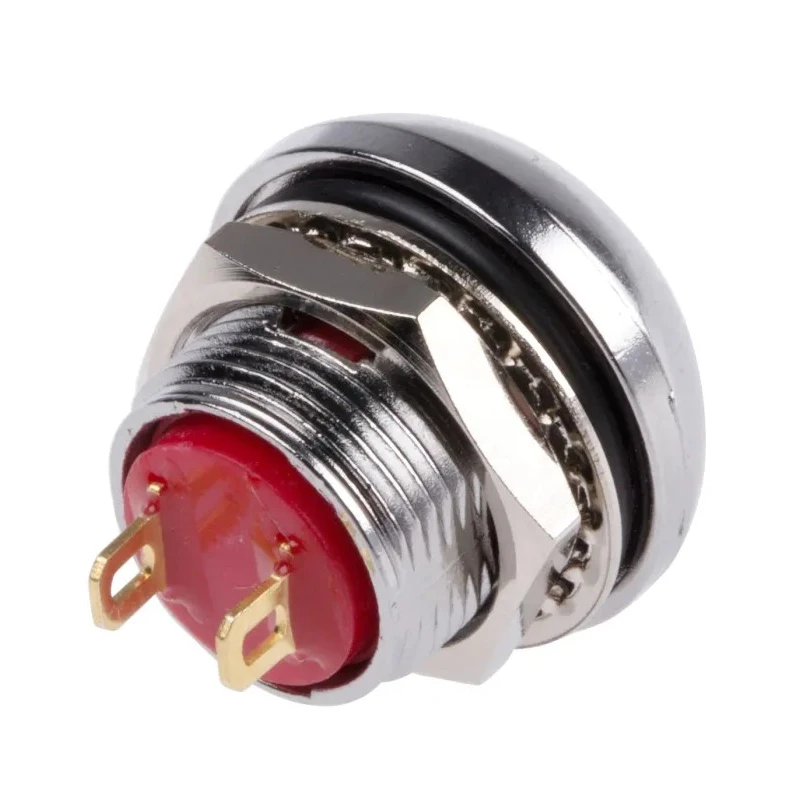

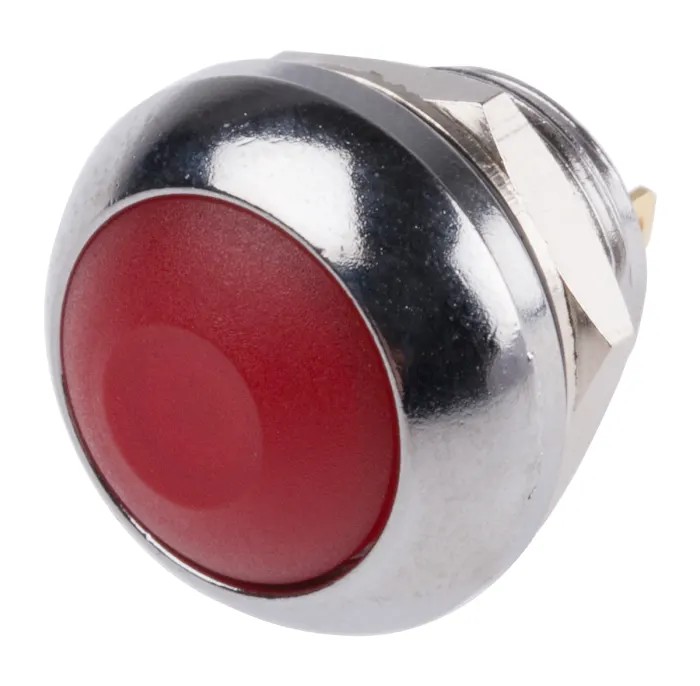

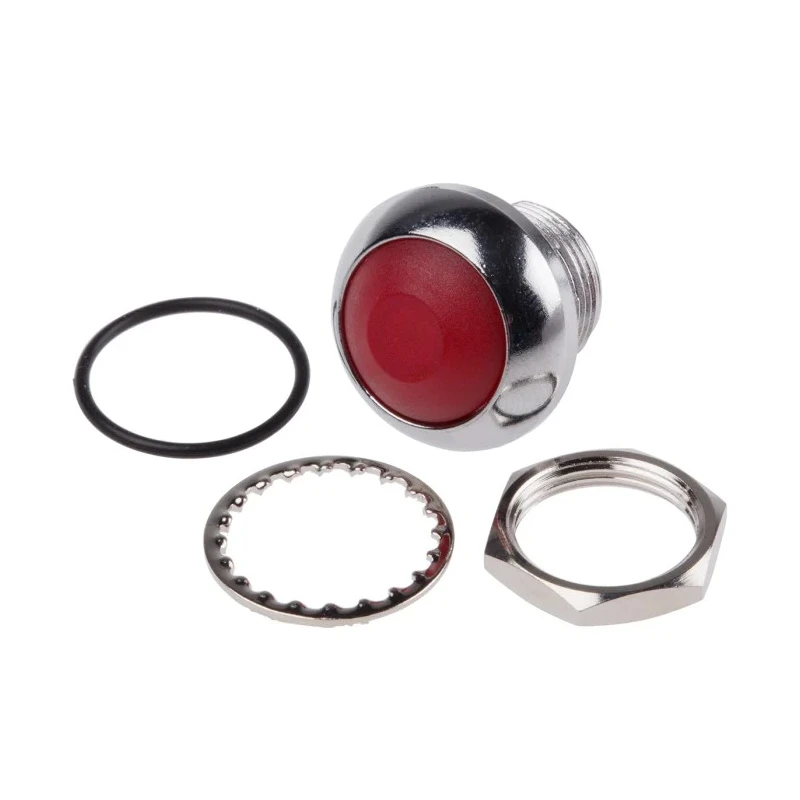

RS PRO Miniature Push Button Switch Momentary Panel Mount 13.6 mm Cutout SPST Red LED IP67 250 V 200 mA 891-9832

Name: RS PRO Miniature Push Button Switch Momentary Panel Mount 13.6 mm Cutout SPST Red LED IP67 250 V 200 mA 891-9832
Brand: RS PRO
SKU: 385625
Price: 1134.55 INR
Availability: InStock



Category Push Button Switches Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	891-9832
IP Rating	IP67
Mount Type	Panel Mount
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	1P
Minimum Operating Temperature	-30°C
Panel Cutout Size	13.6 mm
Terminal type	Solder Lug
Standards/Approvals	IEC 60629 2001, PB Lead-Free, RoHS Compliant
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	250V
Actuator Style	Cap
Switch Contact Current	200mA
Contact AC Voltage	250V ac

Key Features

Red cap actuator designed for panel mounting.
Momentary switch operation suitable for temporary circuit control.
13.6 mm panel cutout size enables easy installation.
Single Pole Single Throw (SPST) contact ensures simple on/off switching.
IP67 rated for protection against dust and water immersion.
Operating temperature range from -30°C to 85°C expands application scope.
Gold-over-silver contacts provide excellent conductivity and durability.
Threaded mounting type for secure fitment in panels.

Product Description

The RS PRO 891-9832 Miniature Push Button Switch Momentary is a high-performance panel mount switch designed to offer reliable control in industrial electrical circuits. Featuring a red round cap actuator and momentary operation, this push button switch allows users to temporarily activate circuits with ease and precision.

Its Single Pole Single Throw (SPST) configuration is ideal for simple switching requirements. The 13.6 mm diameter panel cutout dimension and threaded mounting provide secure and straightforward installation in control panels or enclosures.

Equipped with gold-over-silver contacts, the switch ensures excellent electrical conductivity and minimizes voltage drop. The robust design supports an electrical contact rating of 200 mA at 50 V DC and 500 mA at 32 V AC, catering to a variety of low-power applications.

Rated to IP67, this switch is dust-tight and can withstand temporary immersion in water up to 1 meter for 15 minutes, making it suitable for demanding environments where protection against contaminants is crucial.

Operating in a temperature range from -30°C to 85°C, the switch sustains performance in both cold and hot industrial conditions. Its solder lug terminal configuration supports reliable wiring connections for maintenance and installation convenience.

Red, round cap actuator with momentary operation. Panel mount type with 13.6 mm cutout diameter. Single Pole Single Throw (SPST) contact configuration. Gold-over-silver contacts for durability and efficient conduction. Rated IP67 for dust and water ingress protection.

Voltage rating of 250 V AC and current rating of 200 mA DC. Threaded mounting for secure panel fitting. Operating temperature range of -30°C to 85°C. Solder lug terminal type for ease of connection.

This push button switch is suitable for industrial, manufacturing, automation systems, and electrical control applications that demand dependable momentary switch functionality with environmental resistance.
