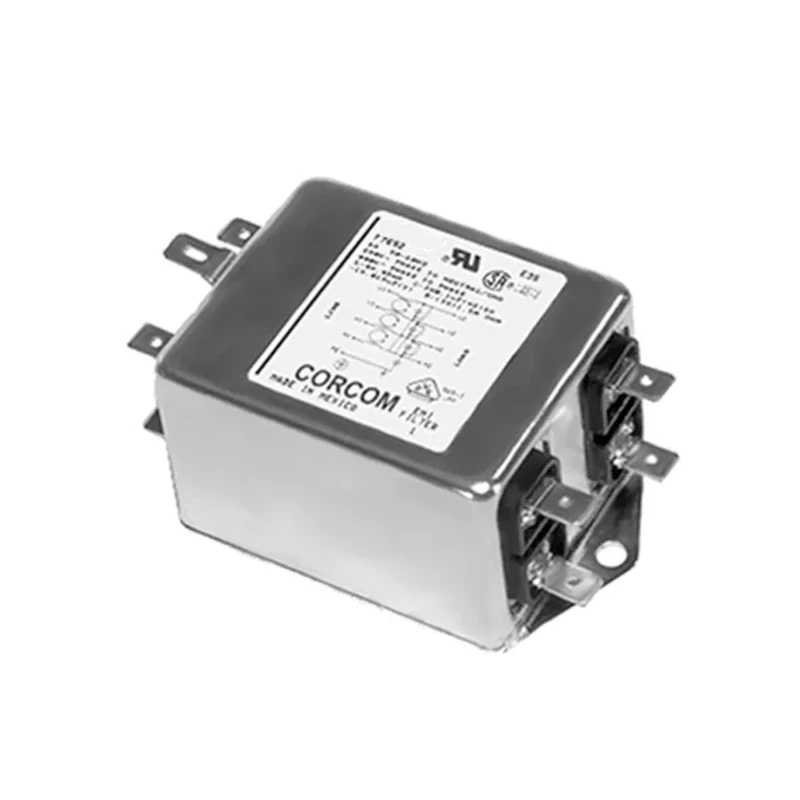

TE Connectivity Corcom AYO Flange RFI Filter 3 A 250V AC 50Hz/60Hz Spade Termination 3 Phase 6609066-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Corcom AYO Flange RFI Filter 3 A 250V AC 50Hz/60Hz Spade Termination 3 Phase 6609066-1

Name: TE Connectivity Corcom AYO Flange RFI Filter 3 A 250V AC 50Hz/60Hz Spade Termination 3 Phase 6609066-1
Brand: TE Connectivity
SKU: 384713
Price: 41.01 USD
Availability: InStock



Category RFI Filter Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	52.5mm
Length	85.6mm
Depth	38.7mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	Corcom AYO
Maximum Operating Temperature	40°C
Number Of Stages	1
Capacitance	100nF
Minimum Operating Temperature	-10°C
Maximum Current	3A
Number of Phases	3
Leakage Current	3mA
Maximum Voltage	250V ac
Inductance	1mH
Termination Style	Spade

Key Features

Designed for three-phase WYE configurations with low leakage current.
Compact flange mount with spade terminal connection for ease of installation.
Single-stage Corcom AYO series filter providing effective EMI attenuation from 100 kHz.
Operating temperature range from -10°C to 40°C for versatile use environments.
Complies with CSA 22.2 No. 0/0.4/8, UL 1283, and VDE 0565-3 safety standards.
Inductance of 1 mH and capacitance of 100 nF for efficient interference suppression.
Suitable for equipment like gaming machines, vending machines, food service, and small machine tools.

Product Description

TE Connectivity 6609066-1 Flange RFI Filter is a compact and efficient EMI suppression filter designed for three-phase WYE AC applications, ideal for operating at currents up to 3 A and voltages up to 250 V AC across 50Hz and 60Hz frequencies. The filter features a robust flange mount with spade terminals to simplify installation in industrial and commercial equipment.

This Corcom AYO series single-stage RFI filter offers excellent attenuation starting at 100 kHz, making it highly effective in reducing electromagnetic interference in sensitive electronic equipment used in commercial sectors including gaming, vending, and food service machinery as well as small machine tools.

The device supports a temperature range from -10°C to 40°C, ensuring reliable operation in typical industrial environments. With adherence to international safety certifications such as CSA 22.2 No. 0/0.4/8, UL 1283, and VDE 0565-3, it meets stringent quality and safety standards.

The filter's electrical characteristics include a capacitance of 100 nF and inductance of 1 mH with a low leakage current of 3 mA, optimizing its interference suppression performance. Its compact dimensions of 85.6mm in length, 52.5mm height, and 38.7mm depth allow space-saving integration into control panels and machinery.

Designed for three-phase WYE applications with easy flange mounting. Spade terminations facilitate quick and secure electrical connections. Effective EMI/RFI filtering across multiple industries. Suitable for use in gaming machines, vending machines, and small machine tools.

Certified safety compliance ensures dependable performance. Compact size aids in saving installation space. Operating temperature range accommodates a variety of environments.

Ideal for industrial, electronic manufacturing, and commercial HVAC applications, this RFI Filter provides a reliable solution for electromagnetic compatibility challenges, enhancing the operational quality of electrical equipment. Explore more EMI and power line filters in TE Connectivity's extensive Corcom series through EnvMart.
