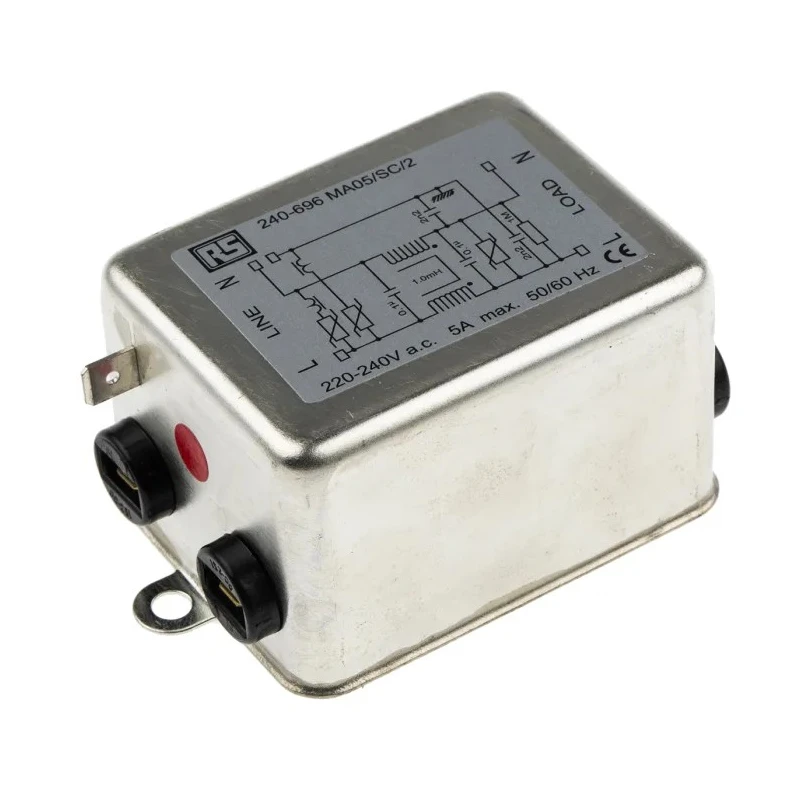

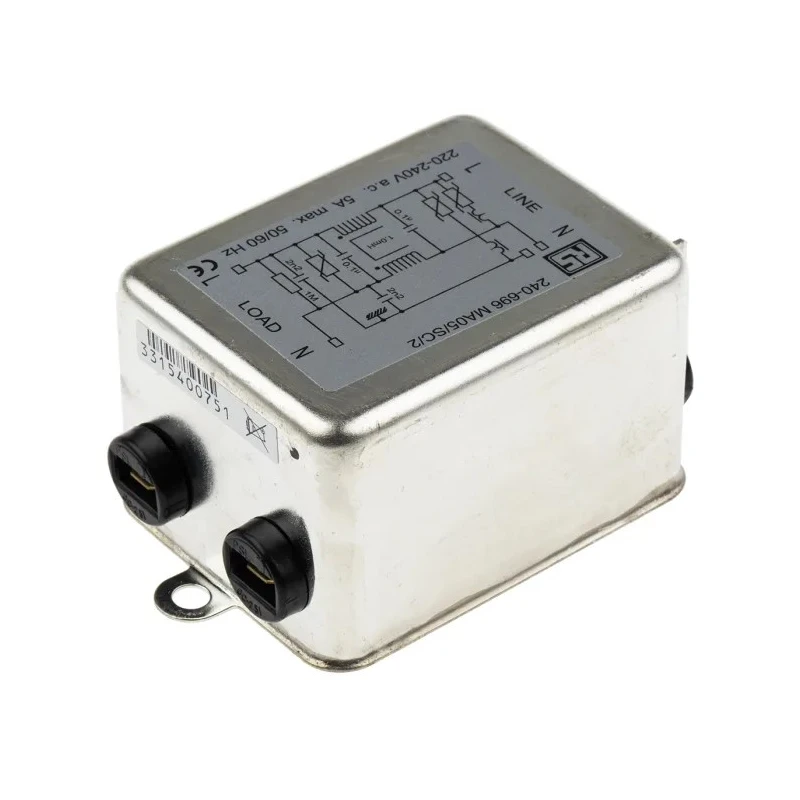

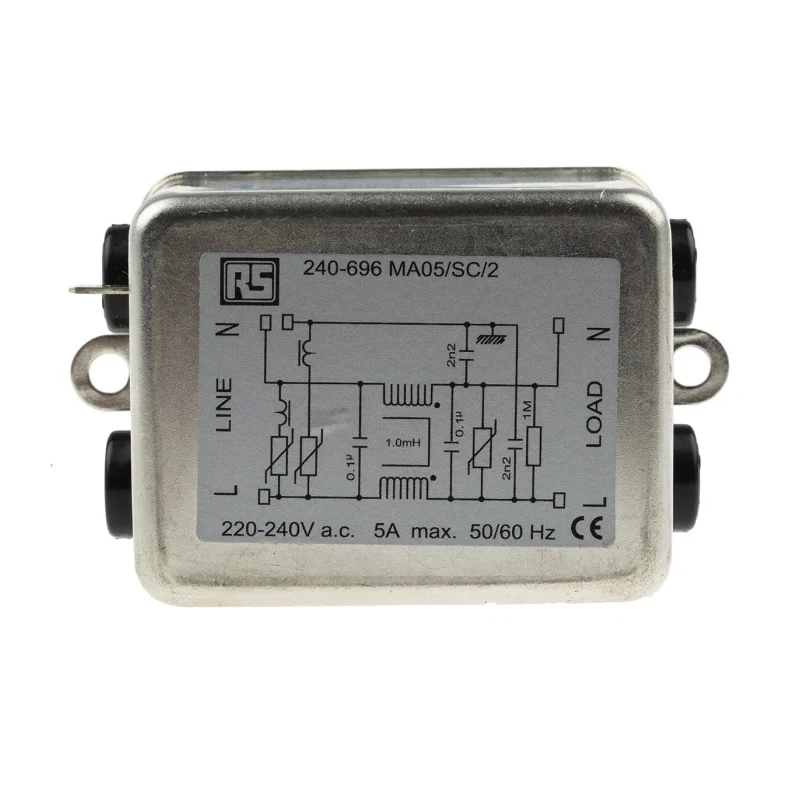

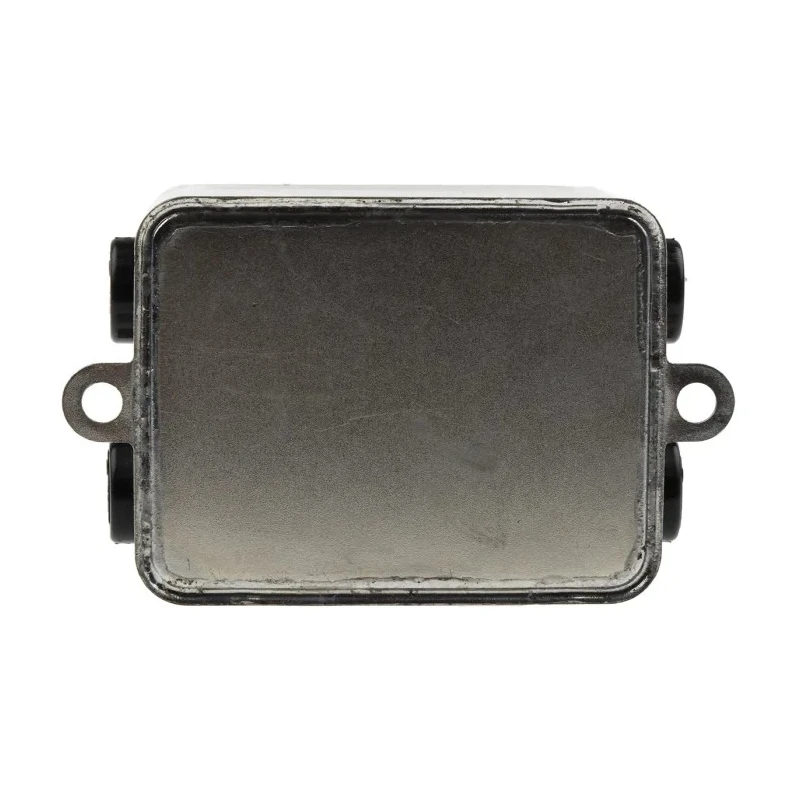

RS PRO Chassis Mount RFI Filter 5 A 240 V AC 50Hz/60Hz Fast-On Termination MA05/10 240-696

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Chassis Mount RFI Filter 5 A 240 V AC 50Hz/60Hz Fast-On Termination MA05/10 240-696

Name: RS PRO Chassis Mount RFI Filter 5 A 240 V AC 50Hz/60Hz Fast-On Termination MA05/10 240-696
Brand: RS PRO
SKU: 149895
Price: 326.19 USD
Availability: InStock



Category RFI Filter Brand RS PRO Condition New

Specifications

Country of Origin	United Kingdom
Brand	RS PRO
Height	40mm
Length	85mm
Model	240-696
Depth	52mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	MA05/10
Maximum Operating Temperature	85°C
Number Of Stages	3
Minimum Operating Temperature	-25°C
Maximum Current	5A
Leakage Current	300μA
Maximum Voltage	240V ac
Standards/Approvals	EN 60950
Termination Style	Fast-On
RS PRO, MA05/10 10 A 240V ac 50Hz, 60 Hz, Chassis Mount RFI Filter, Fast-OnBrand	RS PRO

Key Features

Three-stage filter design offering effective attenuation of radio frequency interference.
Chassis mountable with a robust tin-plated steel enclosure for durability.
Fast-On termination style enables quick and easy electrical connections.
Operates efficiently within a wide temperature range from -25°C to +85°C.
Compact dimensions of 85 mm length, 40 mm height, and 52 mm depth for versatile installation.
Leakage current rated at 300 μA for minimal electrical loss.
Complies with EN 60950 standards ensuring safety and quality.
Designed to withstand surge currents up to 6500 A for equipment protection.

Product Description

RS PRO 240-696 Chassis Mount RFI Filter is a high-performance three-stage radio frequency interference filter designed for power line noise suppression in electrical and electronic equipment. This filter supports a maximum current of 5 A and operates at 240 V AC voltage with a frequency range of 50/60 Hz. Its design facilitates chassis mounting, making it ideal for integration within machinery or control panels.

The enclosure is crafted from tin-plated steel, offering strong impact resistance and extended product lifespan. Its compact size, measuring 85 mm in length, 40 mm height, and 52 mm in depth, allows for installation in constrained spaces without compromising performance.

Equipped with fast-on terminations, this filter ensures rapid and secure electrical connections, reducing setup time and maintenance requirements. Its three-stage design attenuates signal noise up to 73 dB while providing surge protection up to 6500 A, offering robust safeguarding of sensitive equipment in demanding industrial and medical environments.

The filter features a low leakage current of 300 μA and functions effectively across an operating temperature range of -25°C to +85°C, supporting reliability in harsh conditions. Compliance with EN 60950 standards guarantees safety and durability.

Three-stage filter design for effective RFI attenuation. Chassis mount enclosure made of tin-plated steel for durability. Fast-On termination style for simple installation. Compact size compatible with limited installation spaces.

Supports maximum current of 5 A and voltage of 240 V AC. Wide operating temperature range from -25°C to +85°C. Leakage current of 300 μA reduces electrical losses. Surge current withstand capability up to 6500 A. Meets EN 60950 safety standards.

Manufactured in the United Kingdom for high quality assurance.

This RFI Filter is suitable for diverse applications including industrial machinery, medical devices, power grids, and other electrical systems requiring interference suppression and protection against electrical surges. Its durable build and reliable performance make it an excellent choice for maintaining electromagnetic compatibility and operational stability.
