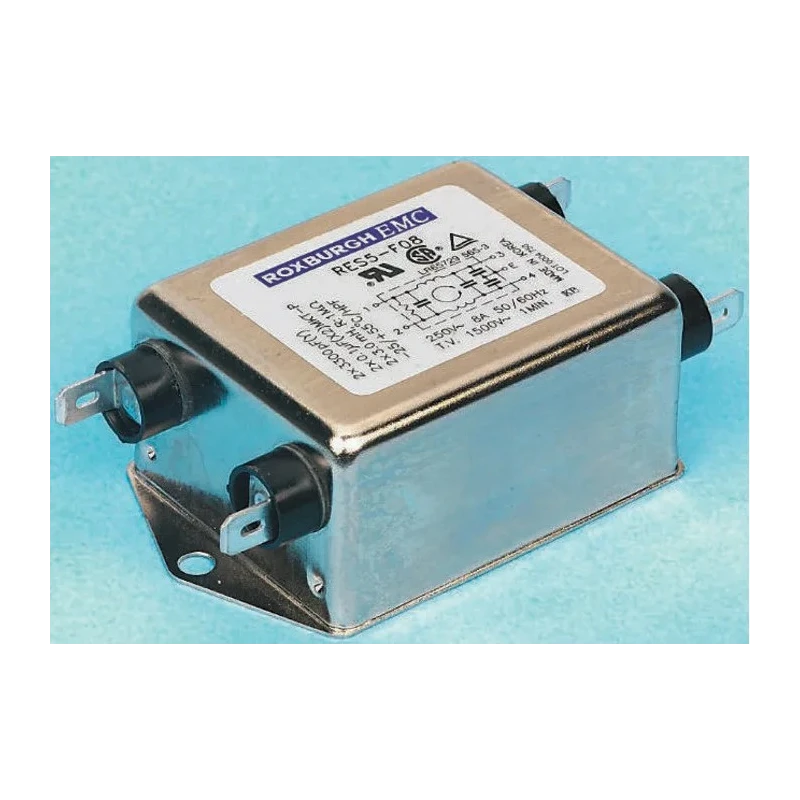

RS PRO Chassis Mount RFI Filter 5 A 250V AC 50Hz, 60Hz Fast-On Termination 1 Phase 386-4239

RS PRO 386-4239 chassis mount RFI filter is engineered for demanding electronic component applications requiring robust interference suppression. It supports a maximum current of 5 A and operates at 250 V AC, suitable for single-phase circuits prevalent in industrial and commercial electrical installations.

The filter features a chassis mount configuration and fast-on termination style, facilitating easy mounting and quick connection. It efficiently attenuates radio frequency interference (RFI) across an operating frequency of 50 Hz to 60 Hz, ensuring compliance with electromagnetic compatibility (EMC) requirements in diverse environments.

With a capacitance of 100 nF and inductance of 5 mH, this filter effectively reduces electrical noise, enhancing the performance and longevity of sensitive electronic equipment. It is designed for temperature ranges from -25°C up to 85°C, allowing for reliable operation in various ambient conditions.

The compact physical dimensions - 87.3 mm length, 32 mm height, and 51.8 mm depth - enable integration into equipment with space constraints without compromising performance. The low resistance value of 1 mΩ aids in maintaining energy efficiency and minimal voltage drop during operation.

RS PRO chassis mount RFI Filters adhere to stringent safety standards including UL recognition and CSA certification, supporting use in both laboratory and industrial settings such as manufacturing, power equipment, automation, and HVAC systems.

Designed for single-phase operation with 1 stage for effective noise filtering. Equipped with fast-on termination for convenient installation. Operates efficiently at 50Hz and 60Hz frequencies. Compact dimensions: length 87.3 mm, height 32 mm, depth 51.8 mm.

Supports maximum operating temperature of 85°C and minimum of -25°C. Low resistance of 1 mΩ ensures minimal power loss. Capacitance rating of 100 nF and inductance of 5 mH provide stable filtering performance. Leakage current limited to 500 μA for safety compliance.

Meets recognized UL and CSA certifications. RS PRO series known for reliable EMI suppression solutions in industrial and electronic applications.

This product is suitable for use in diverse electrical and electronic applications requiring effective EMI and RFI noise attenuation such as power supplies, motor drives, industrial machinery control panels, and laboratory instrumentation.
