TE Connectivity Corcom B Series Flange RFI Filter 1 A 250V AC 50Hz/60Hz Fast-On Termination 6609020-1

Free Delivery in India | Lowest Global Shipping Charges

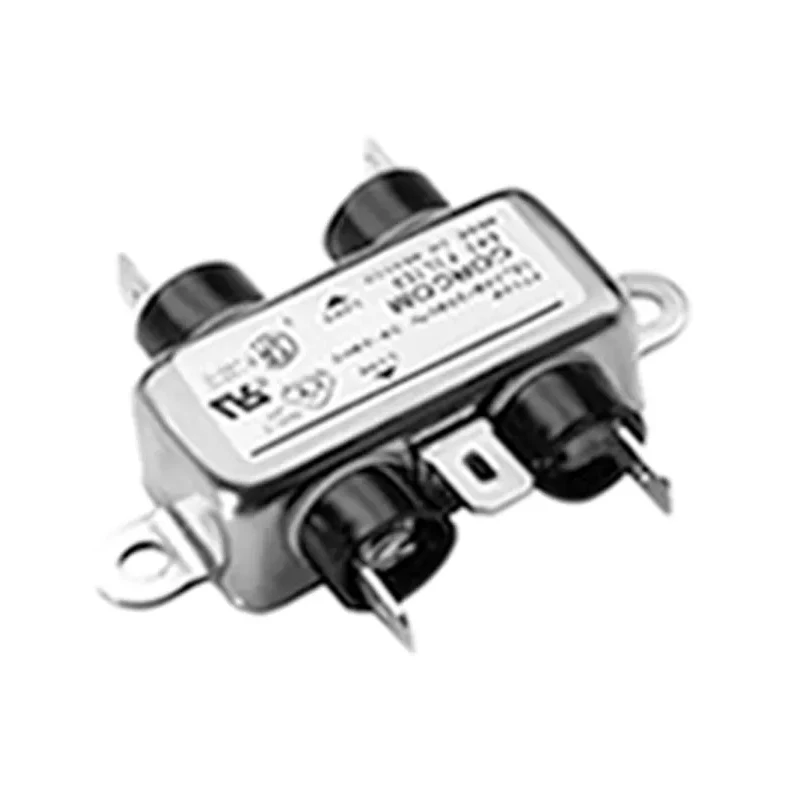

TE Connectivity Corcom B Series Flange RFI Filter 1 A 250V AC 50Hz/60Hz Fast-On Termination 6609020-1

Name: TE Connectivity Corcom B Series Flange RFI Filter 1 A 250V AC 50Hz/60Hz Fast-On Termination 6609020-1
Brand: TE Connectivity
SKU: 384711
Price: 26.6 USD
Availability: InStock



Category RFI Filter Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	64.3mm
Length	57.2mm
Depth	16.8mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	Corcom B
Maximum Operating Temperature	40°C
Number Of Stages	1
Capacitance	100nF
Minimum Operating Temperature	-10°C
Maximum Current	1A
Number of Phases	1
Leakage Current	700μA
Maximum Voltage	250V ac
Inductance	1.86mH
Standards/Approvals	UL1283
Termination Style	Fast-On

Key Features

The filter features a compact flange mount with Fast-On termination for easy installation.
It provides effective EMI/RFI suppression with low leakage current of 700μA.
Designed for single-phase power lines with one stage filtering performance.
Capacitance is rated at 100nF and inductance at 1.86mH for wide band noise attenuation.
Operating temperature ranges from -10°C minimum to 40°C maximum.
Complies with UL1283 standards for safety and performance.
Suitable for general purpose EMI filtering in HVAC, battery chargers, home appliances, and computing equipment.
Low leakage current makes it applicable for VDE portable equipment and non-patient medical devices.

Product Description

TE Connectivity 6609020-1 Corcom B Series Flange RFI Filter is engineered as a general-purpose EMI/RFI suppression solution for low current applications operating at AC voltages up to 250V. This filter is designed to reduce electromagnetic interference across a wide frequency band for sensitive electronic equipment.

The compact flange mounting supports stable mechanical installation, while Fast-On termination style simplifies wiring connections. It is a single-phase filter with one stage of noise suppression, featuring 100nF capacitance and 1.86mH inductance.

Its operating frequency range of 50Hz to 60Hz makes it versatile for global power systems. The filter supports a maximum continuous current of 1 ampere and a leakage current of 700 microamperes, which compliance to UL1283 and recognized by major safety agencies ensures product reliability and safety.

The device performs well in various industrial and commercial environments including HVAC systems, battery chargers, exercise machines, domestic appliances, audio and video electronics, and computing accessories. It is particularly suitable for applications requiring low attenuation and low leakage current, making it compliant with VDE portable equipment and non-patient medical devices.

The physical dimensions of height 64.3mm, length 57.2mm, and depth 16.8mm ensure compatibility with many installations where space constraints exist. The operating temperature range from -10°C to 40°C allows reliable performance under typical environmental conditions.

The filter offers general purpose EMI/RFI attenuation with flange mounting and Fast-On terminations. Low leakage current ensures compatibility with VDE portable and medical equipment standards. Compliant with UL1283 and recognized by global safety agencies.

Compact size suitable for space-limited assemblies. Ideal for industrial, HVAC, battery charging, and consumer electronics applications. Reliable suppression at 50Hz and 60Hz operating frequencies. Corcom B series recognized worldwide for robust EMI filtering performance.
