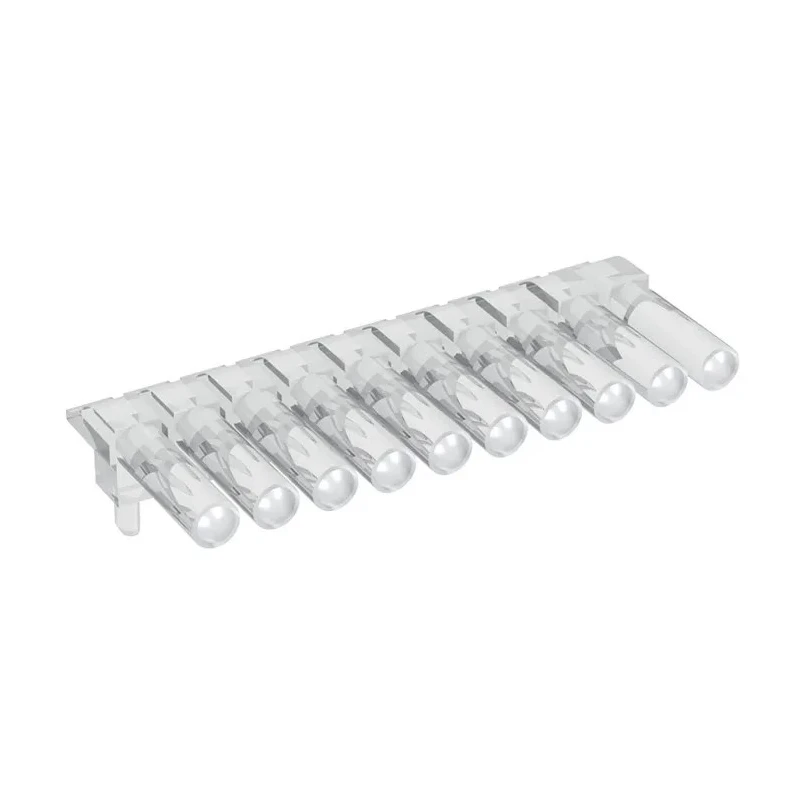

Mentor GmbH PCB 10-Way Right Angle Rigid LED Light Pipe Clear 1271.2010
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Mentor GmbH |
| Orientation | Right Angle |
| Length | 11.55mm |
| Number Of Ways | 10 |
| Mount Type | PCB |
| Outside diameter | 2mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | UL94 |
| Flexible/Rigid | Rigid |
| Light Pipe Shape | Round |
| Number of Light Pipes | 10 |
| Configuration Rows x Columns | 1 x 10 |
Key Features
- The light pipe features a rigid, right angle orientation for space-efficient PCB mounting.
- Comprises a single row of 10 round clear light pipes with 2mm outside diameter.
- Constructed from PMMA material complying with UL94 standard for flame retardancy.
- Designed to fit securely via push-fit lugs onto PCB boards.
- Operates reliably within ambient temperatures from -40°C to +85°C.
- Enables high ESD protection and prevents light bleed between adjacent pipes.
- Light pipe length measures precisely 11.55mm, ideal for surface-mount LED applications.
- Manufactured in Germany ensuring consistent quality and strict compliance.
Product Description
Mentor GmbH 1271.2010 PCB 10-Way Right Angle Rigid LED Light Pipe Clear is engineered for high precision horizontal light guiding on electronic circuit boards. This assembly consists of a single row of 10 rigid round light pipes, each with a 2mm diameter and 11.55mm length, configured at a right angle to the PCB for optimal user interface illumination.
The light pipes are fabricated from PMMA material that meets UL94 flame retardancy standards, ensuring safety in electrical and electronic applications. Designed specifically for PCB mounting using secure push-fit lugs, these light guides position the light pipe inject face in close proximity to the LED, maximizing luminance transfer with minimal light bleed between adjacent sections.
Operating within a wide ambient temperature range from -40°C to +85°C, this product is suitable for rigorous industrial, commercial, and laboratory applications requiring reliable LED light transmission and precision visual indication.
Mentor GmbH light pipes are widely employed in manufacturing, electronic displays, instrumentation, and control panels where compact, efficient, and robust illumination is essential. Their rigid construction complements surface-mount LEDs, providing both durability and simplicity in assembly.
Package contents include the 10-way light pipe assembly as described. The product is manufactured in Germany, underscoring its high manufacturing standards and quality assurance. The light pipe features a rigid, right angle orientation for space-efficient PCB mounting.
Comprises a single row of 10 round clear light pipes with 2mm outside diameter. Constructed from PMMA material complying with UL94 standard for flame retardancy. Designed to fit securely via push-fit lugs onto PCB boards.
Operates reliably within ambient temperatures from -40°C to +85°C. Enables high ESD protection and prevents light bleed between adjacent pipes. Light pipe length measures precisely 11.55mm, ideal for surface-mount LED applications.
Manufactured in Germany ensuring consistent quality and strict compliance. Explore the full range of LED lighting components and PCB accessories at EnvMart for industrial and electronic system integration projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The light pipe measures precisely 11.55mm in length.
Each light pipe has an outside diameter of 2mm.
This model features a right angle orientation for efficient PCB mounting.
It operates reliably within ambient temperatures from -40°C to +85°C.
The assembly comprises a single row of 10 round light pipes.
The light pipe is constructed from PMMA material, which complies with UL94 standards for flame retardancy.
It is designed to fit securely onto PCB boards via push-fit lugs.
The light pipes are round in shape.
It is suitable for surface-mount LED applications, as well as in manufacturing, electronic displays, instrumentation, and control panels.
It enables high ESD protection and prevents light bleed between adjacent pipes.
This product is manufactured in Germany, ensuring high manufacturing standards and quality assurance.
The configuration consists of 1 row with 10 columns of light pipes.
