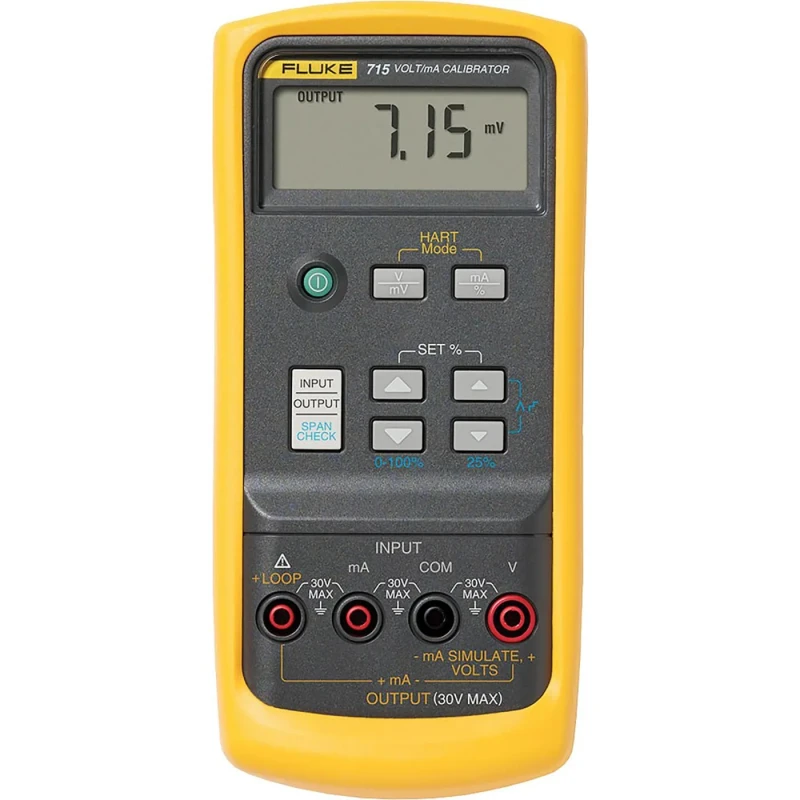

Fluke Current & Voltage Calibrator, 20V Max Voltage, 20 mA Max Current, 0.01% Accuracy FLUKE 715
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ± 0.01 % |
| Voltage | Calibrators Fluke 715 Current & Voltage Calibrator, Max Voltage 20V 20 mA RS Sto |
| Brand | Fluke |
| Battery type | Alkaline |
| Height | 201mm |
| Length | 52mm |
| Model | FLUKE 715 |
| Gross Weight | 330g |
| Width | 98mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | CSA C22.2 No. 1010.1:1992 |
| Safety Category Voltage | 30V |
| Maximum Voltage Measurement | 20V |
| Maximum Source Current | 24mA |
| Maximum Current Measurement | 20mA |
| Maximum Source Voltage | 10V |
| Minimum Source Voltage | 100mV |
| Minimum Source Current | 4mA |
| Standards/Approvals CSA C22.2 No. 1010.1 | 1992 |
| Fitting replacement fuse | RS 323-6965 |
Key Features
- Provides 0.01% accuracy for precise calibration and verification.
- Sources and measures currents from 0mA to 20mA including 4mA to 20mA for loop applications.
- Can simulate over-range conditions with 24mA sourcing capability.
- Battery operated with quick removable battery door for onsite replacements.
- Lightweight at 330 grams, housed in a rugged case for easy handheld use.
- Operates safely within 30V safety category for bench and field checks.
- Suitable for field verification of loop-powered instruments and commissioning control loops.
- Supports environmental operation from -10°C to 55°C for reliable site use.
Product Description
Fluke FLUKE 715 Current & Voltage Calibrator is a compact, battery-powered instrument designed for calibrating and troubleshooting industrial process loops and voltage outputs. It provides a max voltage measurement capability of 20V and max current measurement of 20mA with an exceptional accuracy of ±0.01% across operational temperature range -10°C to 55°C.
This calibrator sources and measures 0mA to 20mA current including the common 4mA to 20mA control loop range. It supports 24mA sourcing to simulate fault or over-range conditions and voltage sourcing up to 10V for transmitter and PLC output verification.
The device is lightweight at 330 grams, encased in a rugged housing suitable for handheld field use. Powered by alkaline batteries with a quick-release door, it enables rapid battery changes on-site without interruption.
Its safety rating up to 30V ensures secure operation during bench and field calibration work. The FLUKE 715 is ideal for commissioning and maintenance tasks on 4mA to 20mA control loops, verifying loop-powered instruments, and simulating fault conditions for field testing.
Operational in ambient temperatures from -10°C up to 55°C, it withstands harsh industrial environments. This calibrator is designed for use in industrial and manufacturing environments requiring high-precision process calibration equipment.
High precision 0.01% accuracy for calibration. Sources/measures 0mA to 20mA current loops. 24mA sourcing for fault simulation. Voltage sourcing up to 10V for transmitter and PLC checks. Battery powered for portable field use with removable battery door.
Rugged, lightweight casing for handheld operation. Safety rating up to 30V for safe bench/field calibration. Environmental operation from -10°C to 55°C. Supports field verification of industrial instrumentation. Set contains the Fluke 715 Calibrator unit with alkaline battery compartment and quick access door. This product is new and originates from India.
Explore more measuring and testing instruments in EnvMart’s Industrial Machines & Instruments category to find precise calibration tools that meet your industrial needs.
Explore more products in our Process Calibrators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FLUKE 715 has a maximum voltage measurement capability of 20V.
This model provides an accuracy of ±0.01%.
The maximum current measurement capability of this calibrator is 20mA.
Yes, it can simulate over-range conditions with a 24mA sourcing capability.
It operates reliably within an ambient temperature range of -10°C to 55°C.
This unit is powered by alkaline batteries, featuring a quick-release door for easy battery changes.
The dimensions are 201mm in height, 52mm in length, and 98mm in width.
The maximum source voltage for the FLUKE 715 is 10V.
It operates safely within a safety category voltage of up to 30V.
It complies with CSA C22.2 No. 1010.1:1992 standards.
The gross weight of this model is 330 grams.
It is suitable for field verification of loop-powered instruments and commissioning control loops.
