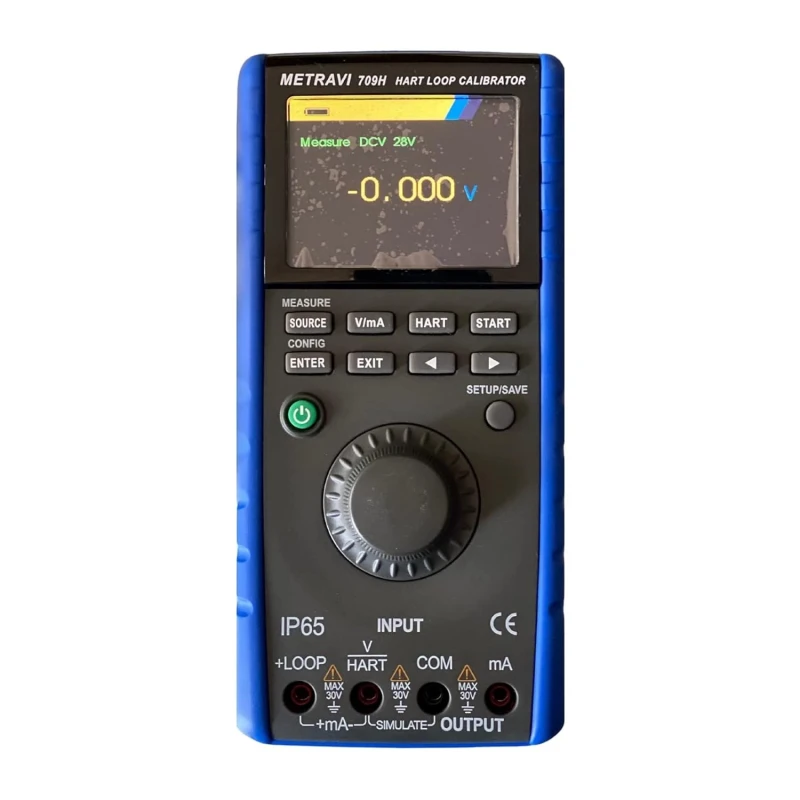

Metravi mV mA Loop Calibrator with HART Communication 709H
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi 709H mV mA Loop Calibrator / Test Pen / Industrial-quality Test Lead / Crocodile Clips / Quick Guide / Test Certificate / User Manual / Insurance tube |
| Operating Humidity | ≤80%RH |
| Display | 3.2-inch TFT color |
| Brand | Metravi |
| Power Supply | 4×1.5V alkaline batteries(LR6) |
| Operating Temperature | 0–50°C |
| Dimensions | 206×97×60mm |
| Storage Temperature | -20–60°C |
| Model | 709H |
| Weight | 600g |
| Safety Standard | EN61010-1 |
| Temperature Coefficient | 0.1×basic accuracy/°C( Less than 18°C or Greater than 28°C) |
| Protection level | IP65(dust & water spray) |
| Storage Humidity | ≤90%RH |
Key Features
- Compact Loop Calibrator with HART communication
- Able to read basic device information and execute diagnostic tests
- High precision ±0.01%
- High resolution 0.001mA
- Automatic Ramp & Step
- High visibility 3.2″ TFT colour display with backlight
- Source and Measure: Output DCA upto 20mA Internal Loop Power Supply 24V Loop Current upto 20mA Voltage upto 28V Current upto 30mA
- Supports SCPI
- Auto Power Off and Low Battery display
- Max. permitted voltage: 30V (between any two terminals or between any terminal and earth ground)
- Operating temperature : 0°C ~ 50°C
- Operating relative humidity: ≤ 80%RH
- Protection level: IP65 (Dust, Water spray)
- Safety: EN61010-1:2001
Product Description
The Metravi 709H Loop Calibrator integrates advanced mA/mV calibration with built-in HART communication capabilities. This device supports 4-20 mA loop sourcing, simulation, and measurement, along with HART protocol-based transmitter communication. It enables configuration, testing, and diagnostics of HART-enabled devices without a separate communicator. The dual screen displays process values and HART commands simultaneously. With rugged casing, rechargeable battery, and easy-to-use interface, it suits field instrumentation technicians in process industries. Ideal for critical plant environments, the 709H simplifies complex calibration while enabling HART device interaction.
Available on EnvMart, these Process Calibrators are essential for testing and calibrating process instrumentation such as pressure, temperature, and electrical signals—crucial for maintaining accuracy and compliance in industrial operations. Metravi Process Calibrators are trusted for their high precision, multifunction capabilities, and rugged design, making them indispensable tools for instrumentation and maintenance engineers.
