APEM Raised Rotary Coded DIP Switch Through Hole NDS-12-V

Free Delivery in India | Lowest Global Shipping Charges

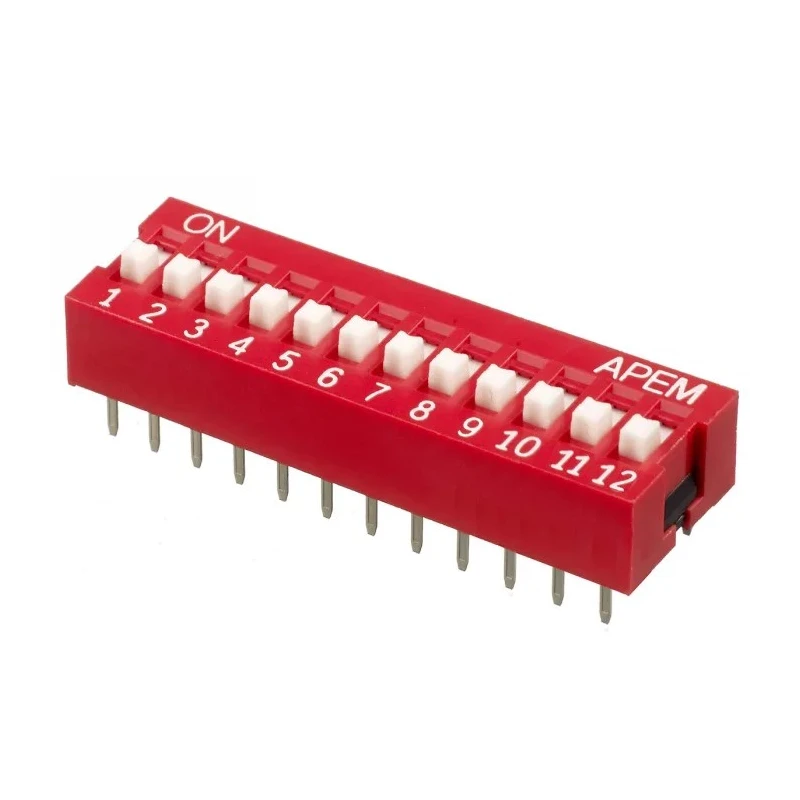

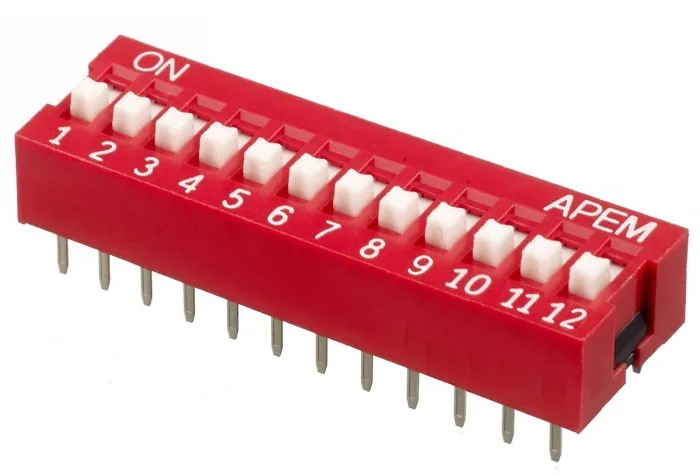

APEM Raised Rotary Coded DIP Switch Through Hole NDS-12-V

Name: APEM Raised Rotary Coded DIP Switch Through Hole NDS-12-V
Brand: APEM
SKU: 384138
Price: 20.22 USD
Availability: InStock



Category Rotary Coded DIP Switch Brand APEM Condition New

Specifications

Country of Origin	China
Brand	APEM
Model	NDS-12-V
Mount Type	Through Hole
Actuator Type	Raised
APEM 12 Way PCB DIP Switch SPSTBrand	Apem
TE Connectivity 12 Way PCB DIP Switch 12PDT, DIP-FIX ActuatorBrand	TE Connectivity

Key Features

The switch uses a through-hole mount type ensuring secure PCB installation.
The actuator is raised, providing tactile feedback during operation.
It offers an operating force of maximum 10N with a 2mm stroke for precise control.
The switching rating is 25mA at 24Vdc with a non-switching rating of 100mA at 50Vdc.
This model is manufactured in China ensuring consistent quality.
The product is ideal for industrial automation and electronic equipment requiring encoded rotary DIP switches.
Compact and durable design suitable for long-term industrial use.
Compatible with systems requiring reliable rotary coded input switches.

Product Description

APEM NDS-12-V Raised Rotary Coded DIP Switch Through Hole is a high-quality SPST Rotary Coded DIP Switch featuring a through-hole mounting style and a raised actuator for enhanced usability.

Constructed for applications demanding precise and reliable switching, this switch is well-suited for telecom equipment, computers, test apparatus, security systems, and various instrumentation tasks.

The switch operates with a maximum actuation force of 10N over a 2mm stroke, ensuring consistent tactile feedback and control. Electrical ratings include a switching current of 25mA at 24Vdc and a non-switching rating of 100mA at 50Vdc, which are suitable for low-power electronic circuits.

Manufactured in China, it adheres to quality standards expected in industrial electronics components. The through-hole mounting provides strong mechanical stability on printed circuit boards. The raised actuator facilitates ease of operation and improved user interaction.

SPST configuration supports single-pole single-throw switching needs. Compact form factor fits various design requirements. Applications include telecom, computers, test equipment, security, and instrumentation industries.

This switch is recommended for industrial automation, electronic control systems, and embedded devices that require reliable rotary coded input components. Explore more in the Rotary Encoded DIP Switch category at EnvMart for compatible products and accessories.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum actuation force of the NDS-12-V switch is 10N.

This model has a stroke length of 2mm.

The switching rating is 25mA at 24Vdc, and the non-switching rating is 100mA at 50Vdc.

It uses a through-hole mounting style, ensuring secure installation on printed circuit boards.

The switch features a raised actuator, providing tactile feedback during operation.

This switch has a single-pole single-throw (SPST) configuration.

The switch is manufactured in China.

Industries that can benefit include industrial automation, electronic control systems, and embedded devices requiring reliable rotary coded input components.

The raised actuator design enhances usability by providing improved tactile feedback during operation.

Yes, it has a compact form factor that fits various design requirements.
