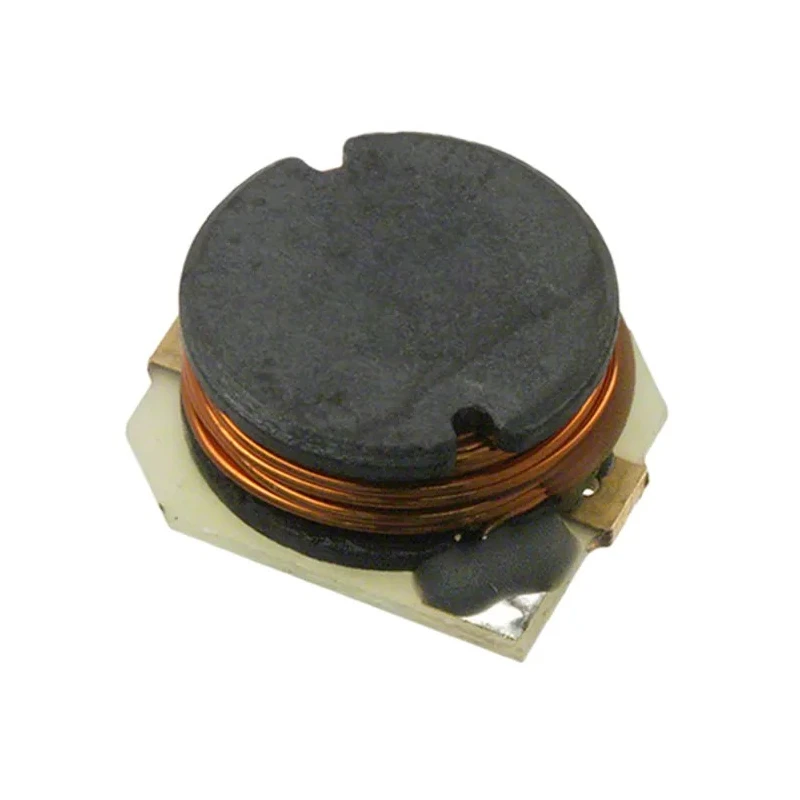

Bourns Wirewound Surface Mount Inductor 100μH ±10% 2.8A Idc Ferrite DR Core E6 Package SDR1105
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 4.8mm |
| Length | 10mm |
| Model | SDR1105 |
| Depth | 11.1mm |
| Packaging | Reel |
| Series | SDR1105 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | E6 |
| Maximum DC Current | 2.8A |
| Pin Count | 2 |
| Maximum DC Resistance | 320mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Compact E6 package with dimensions 10mm length, 4.8mm height, and 11.1mm depth.
- Constructed with wirewound induction technology on ferrite DR core ensuring high reliability.
- Operating temperature range from -40°C up to 125°C suits diverse applications.
- Maximum DC resistance of 320mΩ minimizes power loss during operation.
- Termination style is solder, compatible with surface mount assembly processes.
- Compliant with RoHS standards for environmental safety.
- High current capability with Irms of 4.0A suitable for demanding power applications.
- IDc rating of 2.8A supports use in portable communications and power supply circuits.
Product Description
Bourns SDR1105 wirewound surface mount inductor features a ferrite DR core and is crafted with precision for robust performance in electronic circuits requiring inductance of 100μH ±10%.
The compact E6 package measures 10mm in length, 4.8mm in height, and 11.1mm in depth, enabling integration in space-constrained designs. With a maximum DC current rating of 2.8A and a high Irms rating of 4.0A, this inductor is built for sustained current handling in demanding applications.
Its low maximum DC resistance of 320mΩ reduces power dissipation, enhancing system efficiency. The solder termination style facilitates reliable surface mount PCB assembly.
Operating temperature spans from -40°C to 125°C, making the SDR1105 suitable for a wide range of industrial and commercial environments including automotive electronics, communication devices, and consumer electronics.
The inductor is RoHS compliant, underlining its adherence to environmental and safety standards. Compact E6 package for streamlined PCB layout. Wirewound construction on ferrite core for high inductance stability. High current capability with 2.8A Idc and 4.0A Irms ratings.
Low DC resistance improves efficiency. Suitable for power supply circuits and portable electronics. RoHS certified to support green manufacturing. Applications include filtering and energy storage in DC/DC converters powering portable communications, camcorders, LCD TVs, and automotive radios.
Packaged on reels, it enables efficient volume production with automated insertion equipment. Explore more Surface Mount Inductors and passive electronic components to optimize your circuit designs on EnvMart platform.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SDR1105 wirewound surface mount inductor has an inductance value of 100μH with a tolerance of ±10%.
This inductor has a maximum DC current rating of 2.8A, making it suitable for various applications requiring sustained current handling.
The operating temperature range for this model is from -40°C to 125°C, allowing it to function in diverse environments.
The E6 package of this inductor measures 10mm in length, 4.8mm in height, and 11.1mm in depth.
The inductor is constructed with a ferrite DR core, which contributes to its performance and reliability.
The maximum DC resistance of this inductor is 320mΩ, which helps minimize power loss during operation.
This inductor features a solder termination style, making it compatible with surface mount assembly processes.
Yes, the Bourns SDR1105 is RoHS compliant, ensuring it meets environmental safety standards.
This inductor is suitable for applications such as filtering and energy storage in DC/DC converters, as well as in portable communications and power supply circuits.
The inductor is packaged on reels, which facilitates efficient volume production and automated insertion equipment use.
The SDR1105 has a high Irms rating of 4.0A, making it suitable for demanding power applications.
This model has a pin count of 2, which is typical for surface mount inductors.
