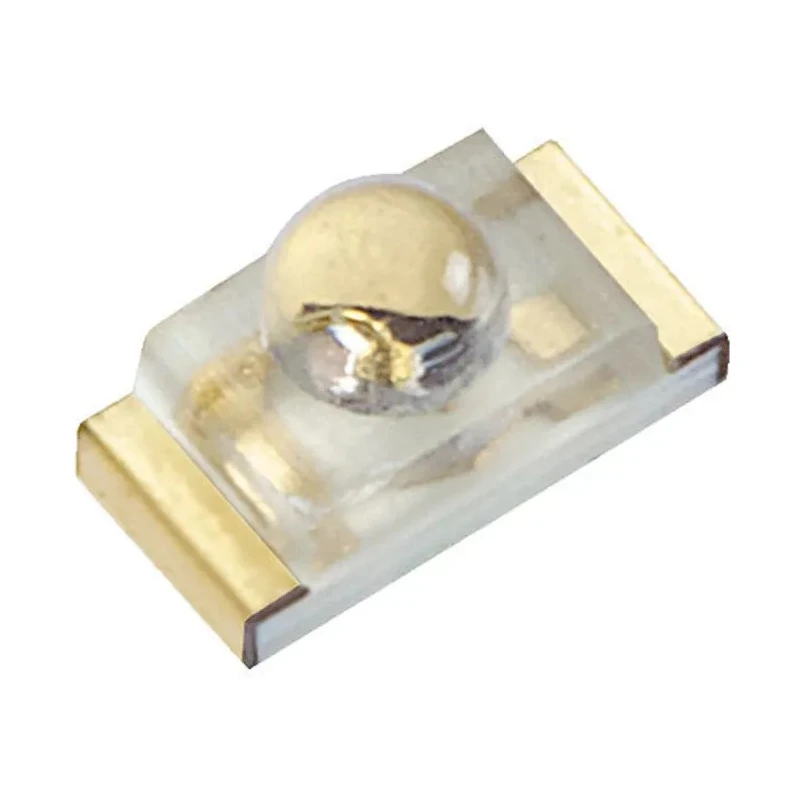

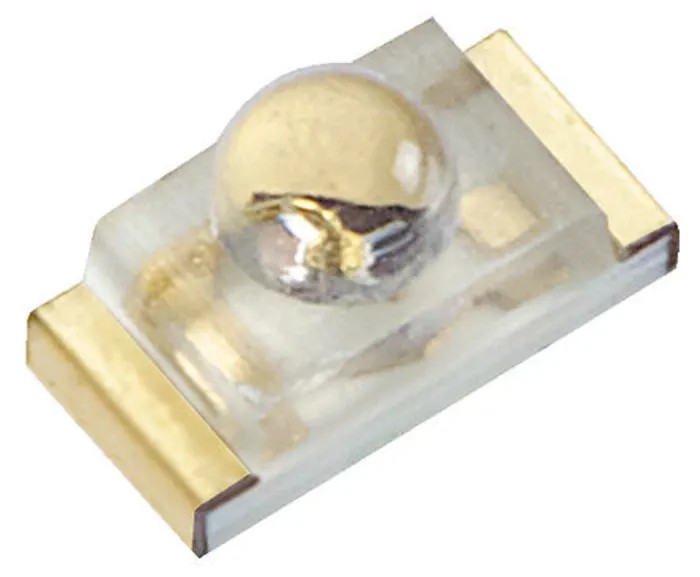

Kingbright 4 V Green Surface Mount 0603 LED Dome Lens 1.6 x 0.8 x 0.95 mm KPTD-1608ZGC-G

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 4 V Green Surface Mount 0603 LED Dome Lens 1.6 x 0.8 x 0.95 mm KPTD-1608ZGC-G

Name: Kingbright 4 V Green Surface Mount 0603 LED Dome Lens 1.6 x 0.8 x 0.95 mm KPTD-1608ZGC-G
Brand: Kingbright
SKU: 383194
Price: 1.09 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	1.6 x 0.8 mm
Model	KPTD-1608ZGC-G
Packaging	Tape & Reel
Mount Type	Surface
Series	KPTD-1608
Maximum forward current	100mA
Viewing angle	60 °
Package Type	0603
Standards/Approvals	RoHS
LED Colour	Green
Dominant Wavelength	525nm
Forward Voltage	4V
Number of Pins	2
LED Luminosity	1.3 cd
Maximum Power Dissipation	120mW
Lens Dimensions	1.6 x 0.8 x 0.95 mm
Lens Shape	Dome

Key Features

This LED features a 1.6 x 0.8 x 0.95 mm dome-shaped lens for efficient light output.
It has a maximum forward current of 100 mA suitable for low-power applications.
The viewing angle is 60 degrees, ideal for indicator and backlighting use.
This component is RoHS compliant ensuring environmental safety.
It is supplied on tape and reel packaging for automated assembly.
The LED has two pins and a forward voltage of 4 V for stable operation.
It emits green light with a dominant wavelength of 525 nm and brightness of 1.3 cd.
Designed for surface mount technology (SMT) applications with standard 0603 footprint.

Product Description

Kingbright KPTD-1608ZGC-G is a high-quality 4 V green LED designed for surface mount applications using the standard 0603 (1608 metric) package footprint. It features a dome-shaped lens measuring 1.6 x 0.8 x 0.95 mm, which enhances the LED's luminosity and viewing angle, making it suitable for precise indicator lights and backlighting purposes in industrial, electronic, and commercial environments.

This LED operates with a maximum forward current of 100 mA and has a forward voltage rating of 4 V, optimized for low power consumption and long-term reliability. The 60-degree viewing angle provides a focused light output that ensures visibility in various lighting conditions.

The device emits bright green light with a dominant wavelength of 525 nm and an LED luminosity of 1.3 candela (cd), suitable for diverse applications from consumer electronics to instrumentation panels. Its clear dome lens ensures minimal diffusion and high efficiency.

Compliant with RoHS environmental standards, the KPTD-1608ZGC-G is packed on tape and reel to support automated placement machines, improving manufacturing efficiency and yield. With two pins and surface mount compatibility, it easily integrates into compact PCB designs.

This LED is ideal for use in electronic equipment, indicators, displays, and backlighting applications. The 0603 package ensures compatibility with industry-standard mounting and assembly processes. Bright green illumination with low power consumption supports energy-efficient designs.

RoHS compliance guarantees adherence to environmental and safety regulations. Tape and reel packaging supports high-volume automated assembly lines. Compact size and SMT form factor enable space-saving PCB layouts. Reliable performance suited for commercial and industrial electronics.
