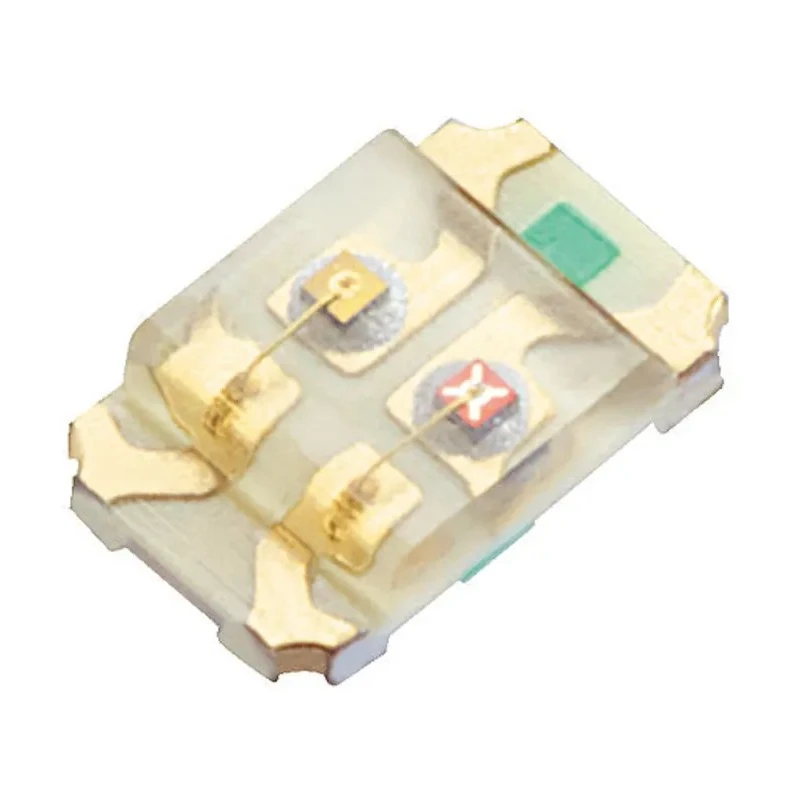

Kingbright Surface Mount 2012 Multi-Colour LED 2.5 V Red, Blue, 30mA Forward Current KPHBM-2012QBDSURKC

Free Delivery in India | Lowest Global Shipping Charges

Kingbright Surface Mount 2012 Multi-Colour LED 2.5 V Red, Blue, 30mA Forward Current KPHBM-2012QBDSURKC

Name: Kingbright Surface Mount 2012 Multi-Colour LED 2.5 V Red, Blue, 30mA Forward Current KPHBM-2012QBDSURKC
Brand: Kingbright
SKU: 383192
Price: 0.82 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	2 x 1.25 mm
Model	KPHBM-2012QBDSURKC
Packaging	Tape & Reel
Mount Type	Surface
Series	Multi-Colour LED
Number Of Leds	2
Maximum forward current	30mA
Viewing angle	120 °
Package Type	2012
Standards/Approvals	RoHS
LED Colour	Red, Blue
Dominant Wavelength	465, 630nm
Forward Voltage	2.5V
Number of Pins	4
LED Luminosity	80 mcd, 250 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	2 x 1.25 x 0.45 mm
Lens Shape	Rectangular

Key Features

Operates at a forward voltage of 2.5 V and a maximum forward current of 30 mA.
The rectangular 2012 package measures 2 x 1.25 x 0.45 mm for compact PCB integration.
Provides two LEDs with luminosity ratings of 80 mcd and 250 mcd for distinct brightness levels.
Viewing angle of 120 degrees ensures wide light dispersion for indicator applications.
Lens is clear with a rectangular shape and clear finish for optimal light output.
Compliant with RoHS standards, ensuring environmental safety in industrial usage.
Ideal for use in backlighting, indicators, and multi-colour signalling in electronics and electrical assemblies.
Manufactured in China with automotive standard not applicable.

Product Description

Kingbright KPHBM-2012QBDSURKC is a high-quality surface mount device (SMD) multi-colour LED housed in the industry standard 2012 (0805) package. With precise dimensions of 2 x 1.25 x 0.45 mm, this compact component is suitable for dense PCB layouts in manufacturing and assembly lines.

The LED operates at a forward voltage of 2.5 V and supports a maximum forward current of 30 mA, making it a low power consumption solution for various electronic applications. It features two LEDs in red and blue colours, with luminosities of 80 mcd and 250 mcd respectively, providing clear and bright visual signals.

The wide viewing angle of 120 degrees allows for effective light dispersion, ideal for indicator lights, backlighting panels, and multi-colour signalling in industrial, commercial, and consumer electronics equipment.

The lens is rectangular and clear finished to optimize light output while maintaining durability. The product is RoHS compliant, affirming its suitability for environment-conscious manufacturing and use within global industrial standards.

Though not automotive-rated, this LED is perfect for industrial electronics, laboratory devices, display modules, and general electrical applications requiring multi-colour visual indicators.

Operates efficiently at low voltage and current. Standard 2012 package ensures compatibility with automated SMT assembly. Suitable for indicator, backlight, and signalling applications. Wide 120° viewing angle for extensive visual coverage.

Environmentally compliant with RoHS certificate. Compact size for space-sensitive circuit designs. Two distinct LED colours in one package enhance multi-colour display capabilities.

This Kingbright KPHBM-2012QBDSURKC multi-colour LED is a reliable component choice for manufacturers and engineers seeking advanced LED solutions in electronics assemblies. Explore more high-quality LEDs in the Electronics Components category at EnvMart.
