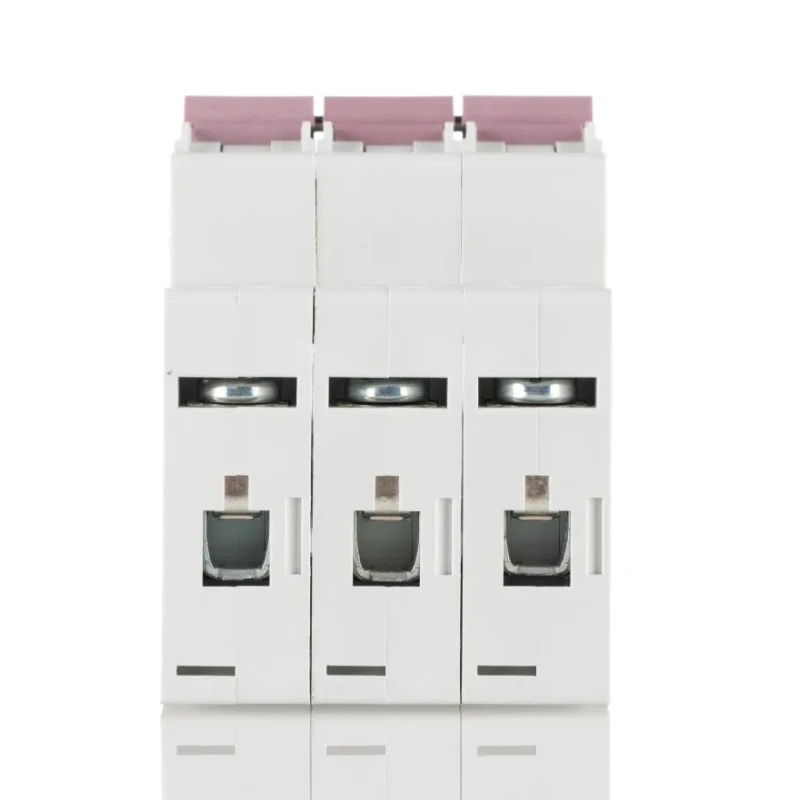

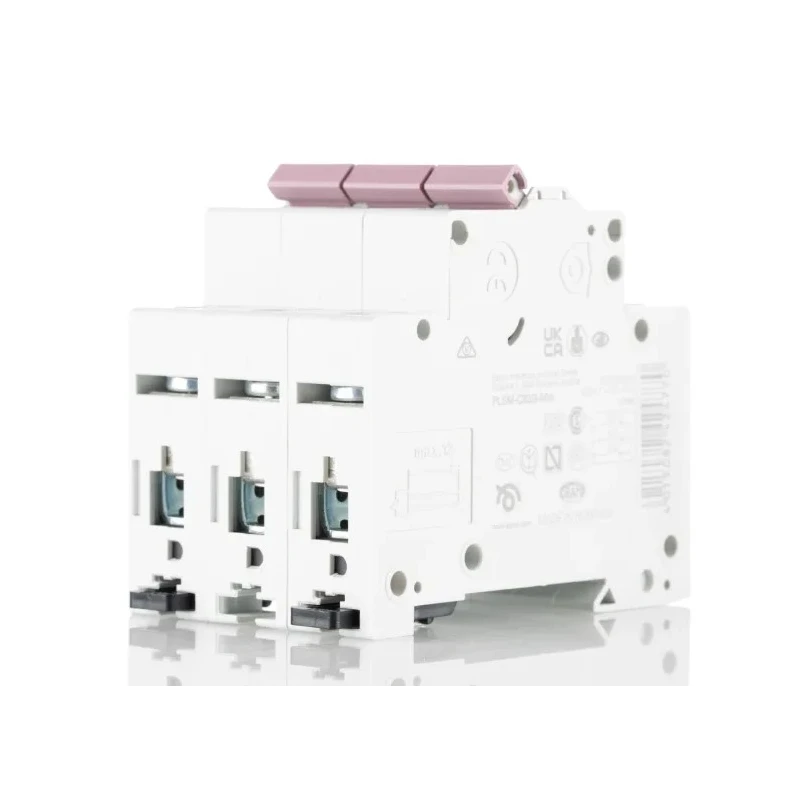

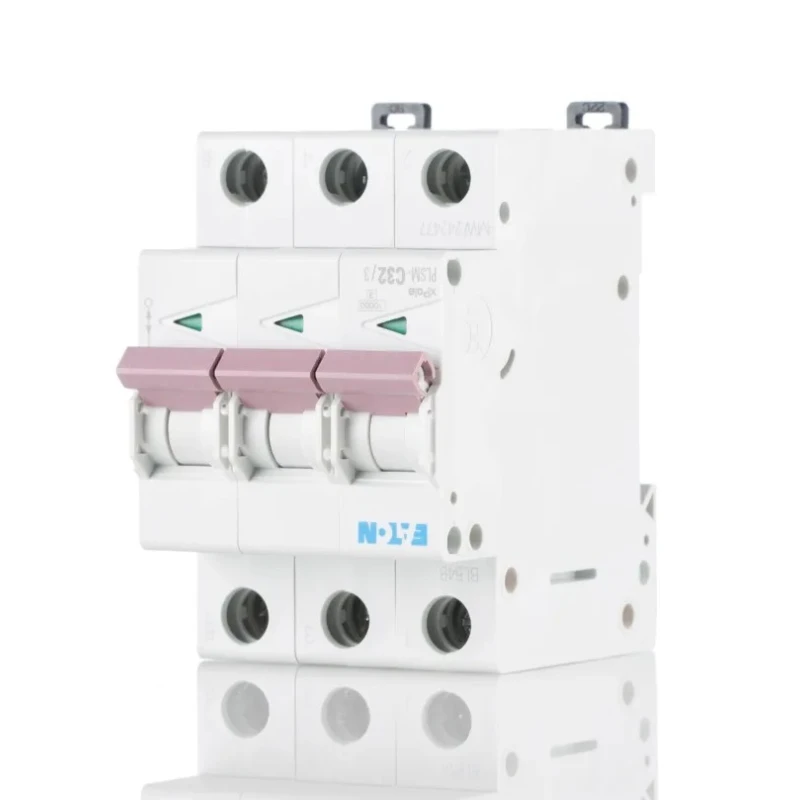

Eaton xPole PL Miniature Circuit Breaker, 3-Pole, 32A, Type C, 48V DC, 10 kA Breaking Capacity 242477 PLSM-C32/3-MW

Eaton 242477 PLSM-C32/3-MW Miniature Circuit Breaker is a 3-pole, 32 amp rated device designed for the protection of industrial and commercial electrical circuits operating at 48 volts DC. This compact and robust circuit breaker provides reliable overload and short circuit protection with Type C tripping characteristics, making it ideal for use in applications involving fluorescent lighting, light-duty motors, and other similar electrical loads.

With a breaking capacity of 10 kA, this circuit breaker ensures safe interruption of fault currents and limits possible damage to connected equipment. Its thermoplastic housing provides electrical insulation and impact resistance, enhancing operational safety and durability in demanding environments. The breaker dimensions of 52.5 mm length, 80 mm width, and 75 mm depth make it suitable for installations in confined spaces.

This model supports connection of both multi-wired and solid-core conductors within a 1 to 25 mm² cross-sectional range, increasing installation versatility. The red-green contact position indicator clearly displays the breaker's operational status, while the 3-position DIN rail clip allows for straightforward installation and removal from existing busbar systems.

Rated for a wide ambient temperature range from -25 to +75 °C, and offering a rated impulse withstand voltage of 4 kV, this circuit breaker withstands electrical surges and harsh environmental conditions. Its IP20 rating provides finger-safe protection against accidental contact with live parts or penetration of conductive tools larger than 12 mm in size.

Compliant with IEC/EN 60898-1 standards, Eaton's xPole PL Miniature Circuit Breaker assures high-performance circuit protection meeting international quality and safety norms. It is suitable for diverse industrial, manufacturing, and commercial electrical distribution systems requiring reliable DC circuit protection.

Compact dimensions fit limited space electrical panels and installations. Robust thermoplastic body ensures insulation and mechanical durability. Type C tripping characteristic ideal for motor and lighting applications. Supports conductor sizes from 1 mm² to 25 mm².

Clear visual contact indicator for easy operational status monitoring. Simple DIN rail mounting and removal for maintenance ease. Wide operating temperature and high surge withstand voltage for reliability. Complies with IEC/EN 60898-1 safety standards.
