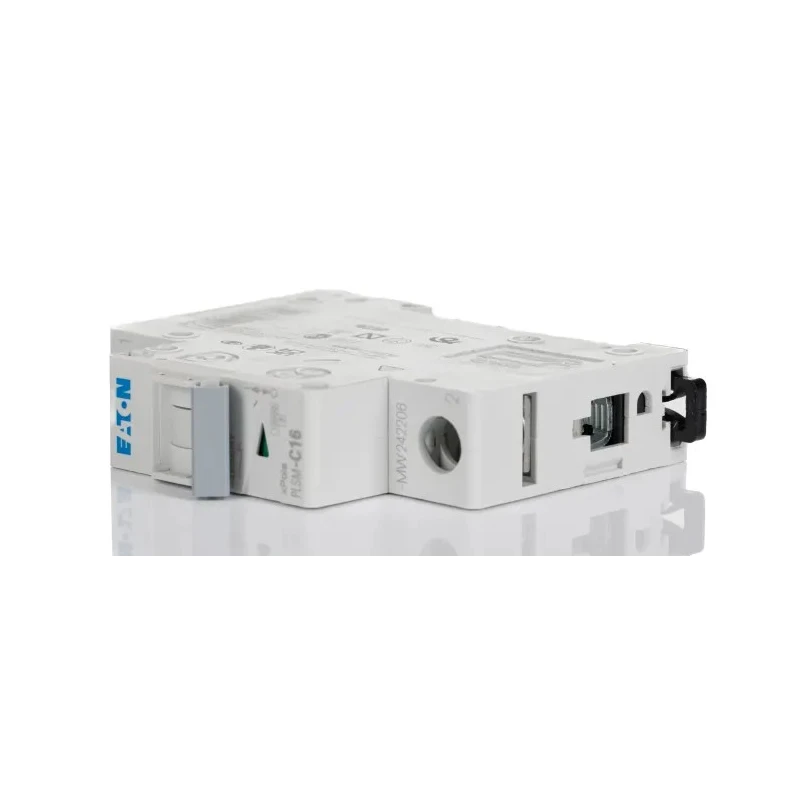

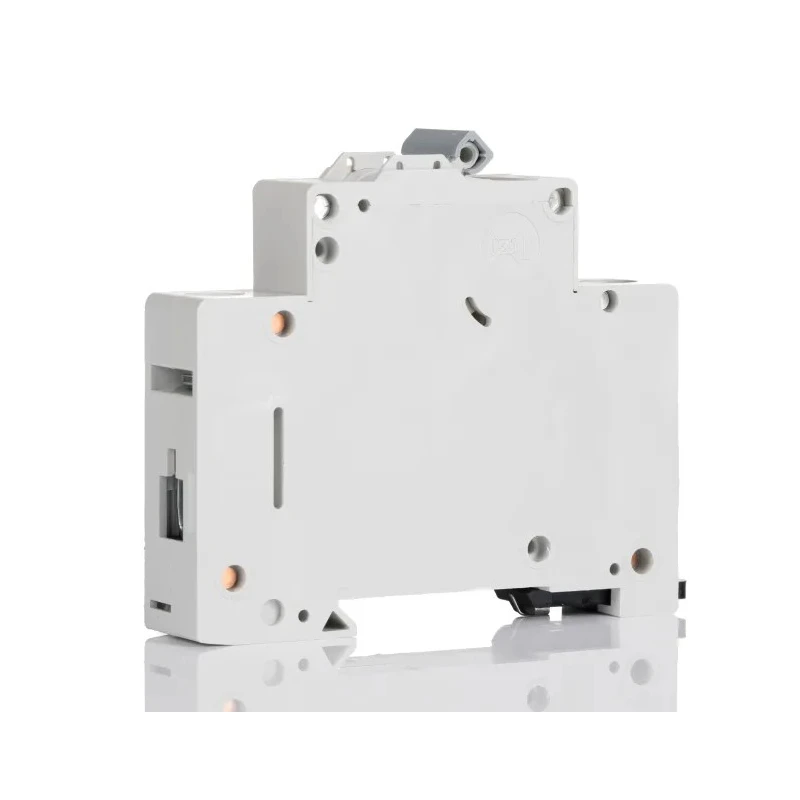

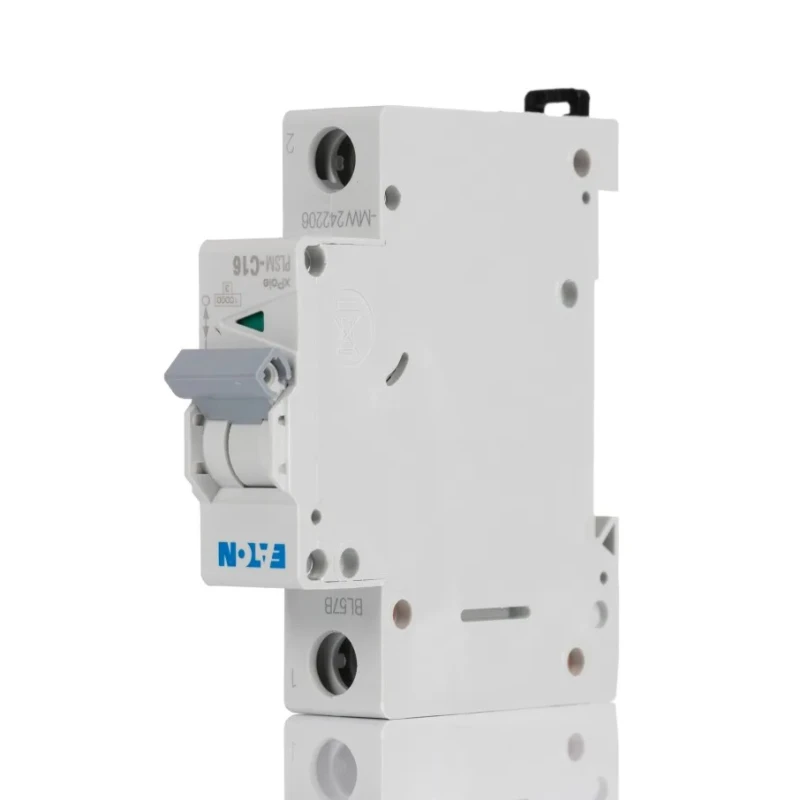

Eaton xPole Miniature Circuit Breaker, 1-Pole, 16A, Type C, 230V AC, 48V DC, 10kA Breaking Capacity 242206 PLSM-C16-MW

Free Delivery in India | Lowest Global Shipping Charges

Eaton xPole Miniature Circuit Breaker, 1-Pole, 16A, Type C, 230V AC, 48V DC, 10kA Breaking Capacity 242206 PLSM-C16-MW

Name: Eaton xPole Miniature Circuit Breaker, 1-Pole, 16A, Type C, 230V AC, 48V DC, 10kA Breaking Capacity 242206 PLSM-C16-MW
Brand: Eaton
SKU: 382648
Price: 38.73 USD
Availability: InStock



Category Miniature Circuit Breaker Brand Eaton Condition New

Specifications

Country of Origin	India
Range	xPole
Brand	Eaton
Model	242206 PLSM-C16-MW
Depth	75mm
IP Rating	IP20
Width	80mm
Mount Type	DIN Rail
Current Rating	16A
Series	PLSM
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	1
Standards/Approvals	EN 60898-1, IEC
Rated AC Voltage	230V ac
Rated DC Voltage	48V dc
Tripping Characteristics	Type C
Reset Actuator Type	Toggle Switch
Break Time	Instantaneous

Key Features

Offers a breaking capacity of 10kA for interrupting high current faults safely.
Suitable for AC voltages up to 230V and DC voltages up to 48V.
Features Type C tripping ideal for high inrush currents such as motors and transformers.
Compact dimensions of 75mm height, 17.5mm width, and 80mm depth enable easy installation.
Mounts easily on a standard 35mm DIN rail with screw terminals for secure connections.
Green and red contact position indicators provide quick visual status.
IP20 rating ensures it is touch-proof and dust resistant for safety.
Reset actuator is a toggle switch allowing simple manual reset.

Product Description

Eaton 242206 PLSM-C16-MW Miniature Circuit Breaker is a single-pole protection device rated at 16A, designed to safeguard electrical circuits by tripping instantly under overload or short circuit conditions.

It supports AC voltage up to 230V and DC voltage up to 48V, making it versatile for various industrial and commercial electrical installations. The breaker delivers a robust 10kA breaking capacity, allowing it to safely interrupt high fault currents without damage.

This model features Type C tripping characteristics, making it suitable for circuits with high inrush currents such as motors, transformers, and lighting loads. The compact design with dimensions 75mm (height) x 17.5mm (width) x 80mm (depth) allows seamless integration into electrical panels.

The device mounts on a standard 35mm DIN rail with reliable screw terminals and includes green and red contact position indicators for rapid operational status checks. Its IP20 rating ensures protection against touch and dust ingress, suitable for harsh industrial environments.

Designed for durable use, the breaker operates effectively within a wide temperature range from -25°C to +75°C. It conforms to international safety standards EN 60898-1 and IEC. Offers a breaking capacity of 10kA for safe fault interruption.

Type C trip for high inrush current compatibility. Compact dimensions for panel space efficiency. Screw terminal connections ensure secure wiring. Toggle switch reset actuator for easy manual resetting. Touch-proof and dust-resistant IP20 rated enclosure.

Green and red contact indicators for operational visibility.

This Eaton Miniature Circuit Breaker is ideal for telecommunications systems, industrial automation, and electrical distribution applications requiring reliable, high-performance circuit protection. Available as part of the xPole series, it supports safe, efficient power management in demanding environments.
