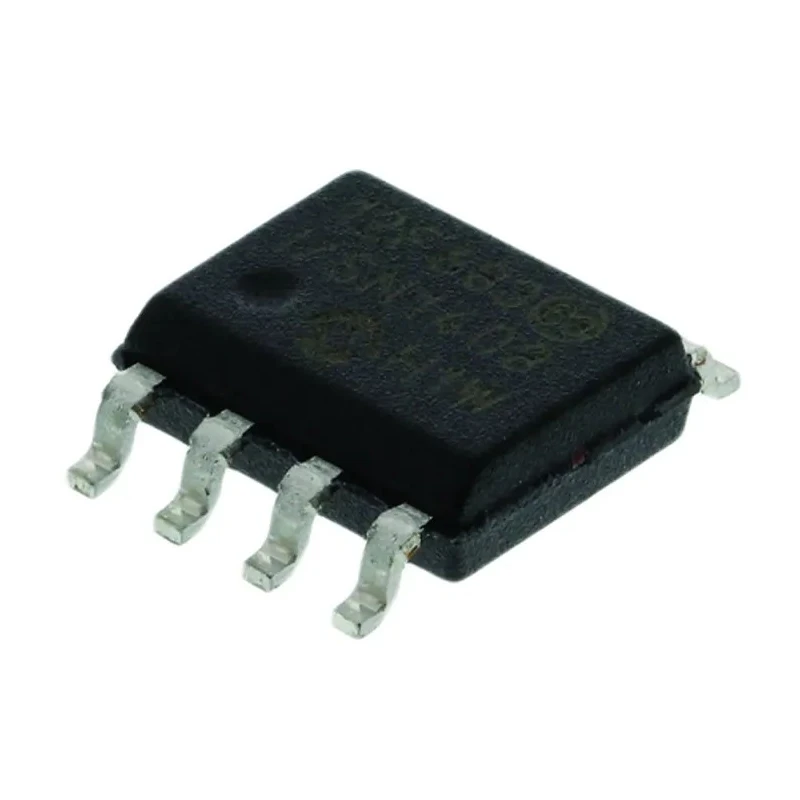

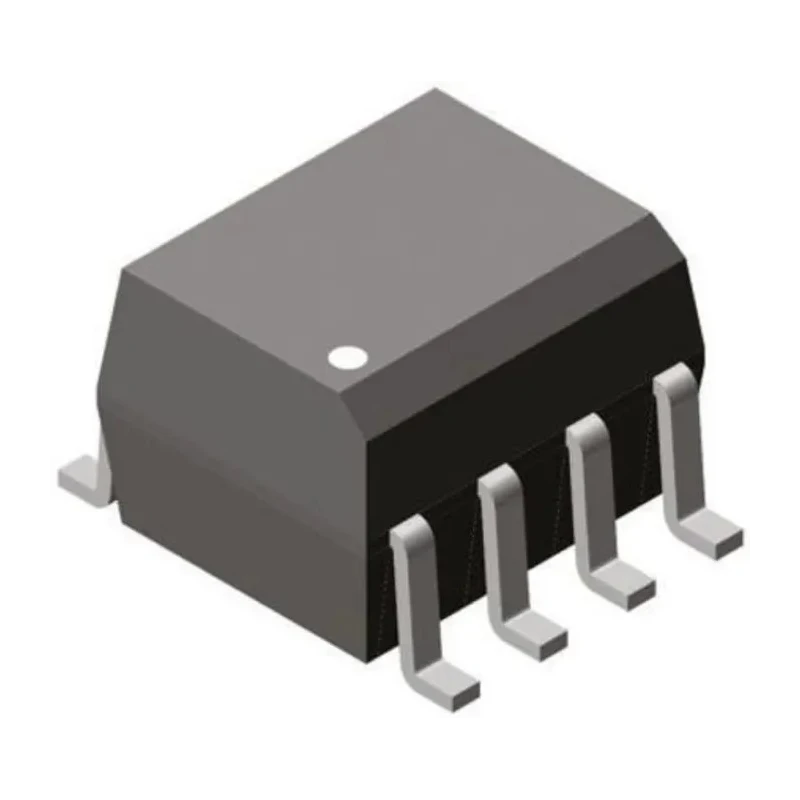

onsemi DC Input 2-Channel Optocoupler, Surface Mount, Open Collector Output, 8-Pin SOIC HCPL062N

Free Delivery in India | Lowest Global Shipping Charges

onsemi DC Input 2-Channel Optocoupler, Surface Mount, Open Collector Output, 8-Pin SOIC HCPL062N

Name: onsemi DC Input 2-Channel Optocoupler, Surface Mount, Open Collector Output, 8-Pin SOIC HCPL062N
Brand: onsemi
SKU: 382561
Price: 4.7 USD
Availability: InStock



Category Optocoupler Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Model	HCPL062N
Packaging	Tape & Reel
Mount Type	Surface
Output type	Open Collector
Series	HCPL
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Maximum input current	50mA
Number Of Channels	2
Standards/Approvals	UL recognised (File E90700)
Maximum Forward Voltage	1.8V
Number of Pins	8
Input Current Type	DC
Typical Rise Time	16ns
Typical Fall Time	4ns

Key Features

Operates with DC input current for efficient signal isolation.
Features 2 channels to support multiple inputs.
Maximum forward voltage rating of 1.8 volts for reliable operation.
Typical rise and fall times of 16ns and 4ns respectively for fast switching.
Supports maximum input current of 50mA enhancing versatility.
High isolation voltage of 2500Vrms for safety in electrical isolation.
Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
UL recognised component ensuring quality assurance.

Product Description

onsemi HCPL062N is a high-performance DC input optocoupler designed with 2 channels and an open collector output type encapsulated in a surface mount 8-Pin SOIC package. It features a maximum forward voltage of 1.8V and supports a maximum input current of 50mA, making it suitable for precise electrical isolation in industrial and electronic applications.

The device offers fast switching capabilities with typical rise and fall times of 16ns and 4ns, respectively, ensuring efficient signal transmission with minimal delay. It complies with UL recognition (File E90700) that confirms adherence to quality and safety standards.

Offering a wide operating temperature range from -40°C to 85°C, the HCPL062N can reliably operate in harsh environmental conditions typical in industrial automation, power electronics, and control systems.

This optocoupler is packaged in tape and reel, facilitating its use in automated assembly lines and improving production efficiency. The logic output with open collector configuration allows easy interface with various digital circuits requiring electrical isolation.

The 2500Vrms isolation voltage delivers robust protection between input and output, ensuring signal integrity and user safety in demanding industrial, laboratory, and commercial applications.

Operates with DC input current for efficient signal isolation. Features 2 channels to support multiple inputs. Designed for surface mount applications with 8-pin SOIC package. Fast switching with typical rise time of 16ns and fall time of 4ns.

Offers high isolation voltage of 2500Vrms for safety and performance. Maximum input current of 50mA supports versatile input conditions. Wide operating temperature range from -40°C to 85°C. UL recognised for compliance with safety standards.

Suitable for industrial automation, power electronics, and control applications. Packaging in tape and reel format enhances manufacturing ease. Explore a wide range of Optocouplers and electronic components at EnvMart for your industrial, laboratory, and commercial needs.
