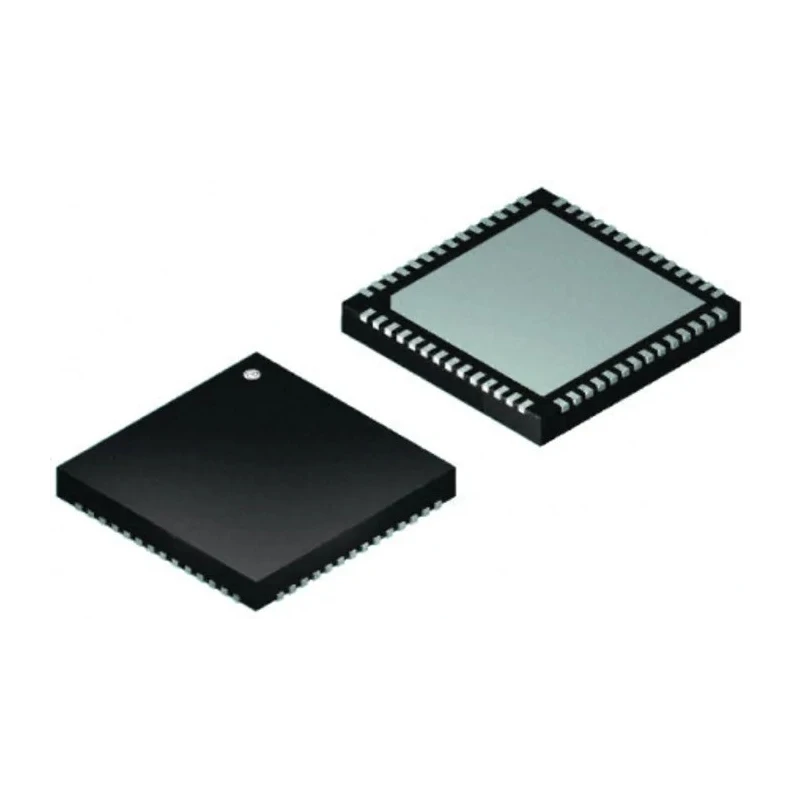

Microchip 32-bit PIC PIC32MX Microcontroller 50 MHz 3kB FLASH 44-Pin QFN PIC32MX170F256D-50I/ML

Microchip PIC32MX170F256D-50I/ML is a high-performance 32-bit PIC microcontroller operating at a maximum clock speed of 50 MHz with 3kB FLASH program memory and 64kB RAM. It is designed for advanced embedded applications requiring efficient multitasking, connectivity, and user interfaces.

This microcontroller is packaged in a compact 44-pin QFN surface mount form factor, measuring 8mm x 8mm with a height of 950μm, making it suitable for space-constrained industrial and consumer electronics. Its operating voltage ranges between 2.3V and 3.6V, supporting low power consumption modes.

Equipped with 13 channels of 12-bit ADCs and 3 analogue comparators, the device enables precise analog signal processing. The device supports multiple timers (five 16-bit and two 32-bit timers), a real-time clock and calendar module, and several output/input compare modules for versatile control functions.

Communication options include USB 2.0 full-speed On-The-Go controller (model-dependent), two UART modules with LIN 2.0 and IrDA support, dual 4-wire SPI modules, and I2C modules with SMBus compatibility. These features make it ideal for applications requiring Ethernet, USB, or CAN connectivity.

The PIC32MX170F256D integrates a MIPS32 M4K core with code-efficient instruction architecture, offering up to 83 DMIPS, delivering high performance in compact embedded systems. Power management features include multiple configurable power modes and a watchdog timer to enhance reliability in industrial and commercial environments.

Employs a 32-bit PIC architecture with 64kB RAM for efficient processing. Features a 44-pin QFN surface mount package suitable for compact designs. Operates at a voltage range of 2.3V to 3.6V supporting low power usage. Includes 13 channels of 12-bit ADC and 3 analogue comparators for precise analog input handling.

Designed for operating temperature range from -40°C to 85°C ensuring industrial reliability. Integrates multiple timers, USB OTG controller, and communication interfaces like UART, SPI, and I2C. Supports advanced applications such as high-impact graphics, Ethernet, USB, CAN connectivity, and multitasking control.

Features configurable watchdog timer, peripheral pin select, and multiple power management modes.

This microcontroller is suitable for industrial, laboratory, manufacturing, and embedded system design requiring compact, high-performance control and connectivity functions. Explore more Microchip Microcontrollers and embedded solutions on EnvMart for your project needs.
