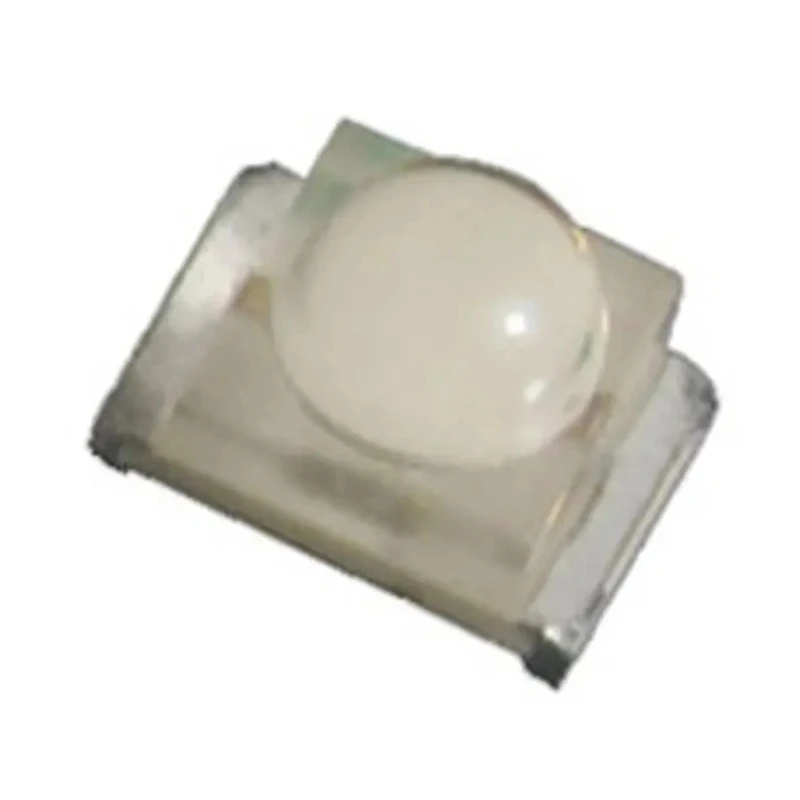

Kingbright 2.5 V Red, Green LED 3020 Surface Mount Bi-Colour Right Angle LED KPBDA-3020SURKCGKC-PF

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 2.5 V Red, Green LED 3020 Surface Mount Bi-Colour Right Angle LED KPBDA-3020SURKCGKC-PF

Name: Kingbright 2.5 V Red, Green LED 3020 Surface Mount Bi-Colour Right Angle LED KPBDA-3020SURKCGKC-PF
Brand: Kingbright
SKU: 382515
Price: 0.64 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Model	KPBDA-3020SURKCGKC-PF
Packaging	Tape & Reel
Mount Type	Surface
Number Of Leds	2
Maximum forward current	30mA
Viewing angle	15 °
Package Type	3020
Standards/Approvals	RoHS
LED Colour	Red, Green
Dominant Wavelength	630nm
Forward Voltage	2.5V
Number of Pins	3
LED Luminosity	300 mcd, 900 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	3 x 2 x 2.8 mm
Lens Shape	Dome

Key Features

This device features side-looking right angle SMT LED technology.
It includes 2 LEDs with separate red and green colors for bi-color indication.
The maximum forward current is rated at 30 mA for durability.
The package has a 3-pin 3020 form factor with dome-shaped clear lens.
The viewing angle is narrow at 15 degrees for focused light output.
The LED luminosity outputs are 300 mcd (red) and 900 mcd (green) respectively.
Lens dimensions measure 3 x 2 x 2.8 mm providing compact mounting footprint.
This LED complies with RoHS standards for environmental safety.

Product Description

Kingbright KPBDA-3020SURKCGKC-PF is a high-quality bi-colour light emitting diode designed for surface mount technology (SMT) applications. Featuring two LEDs in a 3020 right angle package, it delivers red and green light with a compact dome-shaped lens measuring 3 x 2 x 2.8 mm.

The device operates at a forward voltage of 2.5 V and can tolerate a maximum forward current of 30 mA, ensuring reliable and efficient performance. This LED offers a narrow 15-degree viewing angle, making it ideal for applications requiring focused illumination such as backlighting and status indicators in electronic devices.

With luminosity ratings of 300 mcd for red and 900 mcd for green, this component provides clear visible indication. It is compliant with RoHS environmental standards and features a tape & reel packaging suitable for high-volume automated manufacturing processes.

The 3-pin surface mount design facilitates straightforward PCB assembly and integration into a wide range of electronic components, power connectors, and display lighting systems. Manufactured in China, this LED is suited for industrial, electronic, and commercial applications requiring reliable visual signaling solutions with efficient energy usage.

This device features side-looking right angle SMT LED technology. It includes 2 LEDs with separate red and green colors for bi-color indication. The maximum forward current is rated at 30 mA for durability. The package has a 3-pin 3020 form factor with dome-shaped clear lens.

The viewing angle is narrow at 15 degrees for focused light output. The LED luminosity outputs are 300 mcd (red) and 900 mcd (green) respectively. Lens dimensions measure 3 x 2 x 2.8 mm providing compact mounting footprint.

This LED complies with RoHS standards for environmental safety. Intended for backlighting and indicator applications in electronic components. Manufactured in China and supplied in tape & reel packaging for automated assembly.
