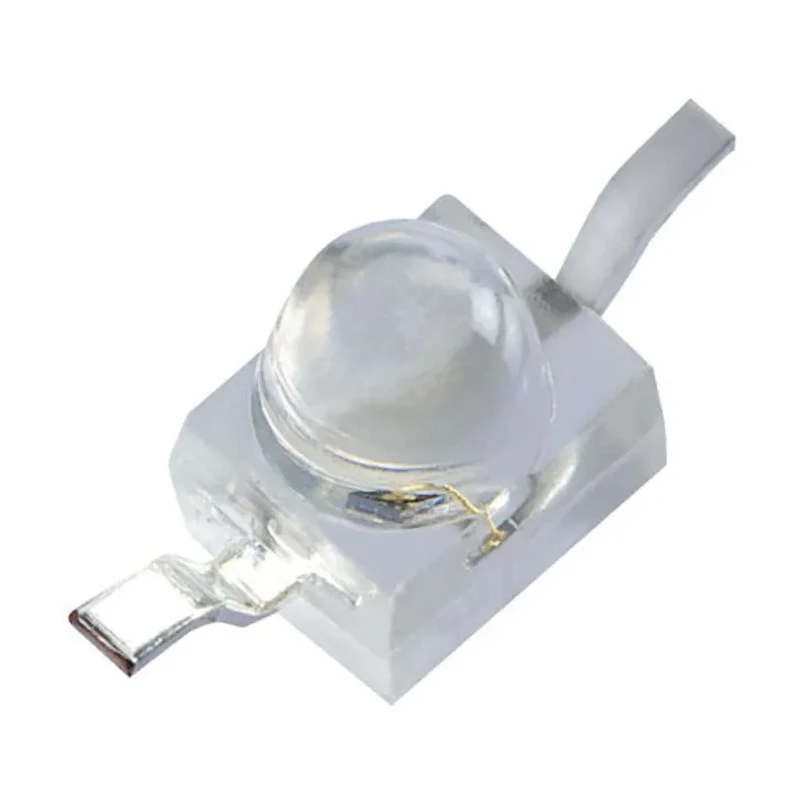

Kingbright 2.5 V Yellow LED Subminiature Surface Mount Dome Lens KM2520YC09

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 2.5 V Yellow LED Subminiature Surface Mount Dome Lens KM2520YC09

Name: Kingbright 2.5 V Yellow LED Subminiature Surface Mount Dome Lens KM2520YC09
Brand: Kingbright
SKU: 382499
Price: 0.33 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Model	KM2520YC09
Packaging	Tape & Reel
Mount Type	Surface
Series	KM2520
Maximum forward current	140mA
Viewing angle	20 °
Package Type	Subminiature
Standards/Approvals	RoHS
LED Colour	Yellow
Dominant Wavelength	588nm
Forward Voltage	2.5V
Number of Pins	2
LED Luminosity	50 mcd
Maximum Power Dissipation	105mW
Lens Dimensions	2.5 x 2 x 2.8 mm
Lens Shape	Dome
Lead types	Gull-wing (GW), yoke and z-bend

Key Features

This LED has a maximum forward current rating of 140 mA.
Maximum power dissipation is 105 mW ensuring efficient energy use.
It features a clear dome lens measuring 2.5 x 2 x 2.8 mm for effective illumination.
The device uses a gull-wing, yoke, or z-bend lead type for versatile mounting options.
LED has 2 pins and a dominant wavelength of 588 nm delivering yellow color light.
Viewing angle is approximately 20 degrees providing focused light emission.
Packaging is tape & reel suitable for automated assembly processes.
The product is RoHS compliant, ensuring environmental safety standards.

Product Description

Kingbright KM2520YC09 is a high-quality Yellow LED engineered in a subminiature surface mount package, operating at 2.5 V forward voltage. It is designed with a low profile to fit compact circuit boards, offering a 50 mcd luminosity with a clear dome lens shape for optimal light emission. The LED package size is 2.5 x 2 x 2.8 mm, ideal for applications requiring reliable and long-lasting indicators.

This LED is rated for a maximum forward current of 140 mA and a power dissipation of up to 105 mW, ensuring energy efficiency and longevity in usage. It provides a focused viewing angle of 20 degrees and a dominant wavelength of 588 nm, delivering vibrant yellow light for signal and display purposes.

Available with gull-wing, yoke, and z-bend lead types, the KM2520 series supports various PCB mounting techniques suitable for automated production lines. Its tape and reel packaging facilitate efficient handling during assembly processes.

The LED is RoHS compliant, meeting environmental safety regulations. This LED provides consistent yellow illumination with a dominant wavelength of 588 nm. It supports up to 140 mA maximum forward current for robust performance.

Compact 2.5 x 2 x 2.8 mm package is suitable for surface mount technology. Clear dome lens offers a wide but focused viewing angle of 20 degrees. RoHS certification ensures compliance with hazardous substance restrictions.

Kingbright KM2520YC09 Yellow LED is ideal for electronic components, power & connectors, displays, optoelectronics, and various applications requiring reliable yellow LEDs. Explore other LED options and related components at EnvMart to enhance your projects with high-quality lighting solutions.
