Kingbright 4 V Blue Subminiature Surface Mount LED with Dome Lens KM2520QBC-D09

Free Delivery in India | Lowest Global Shipping Charges

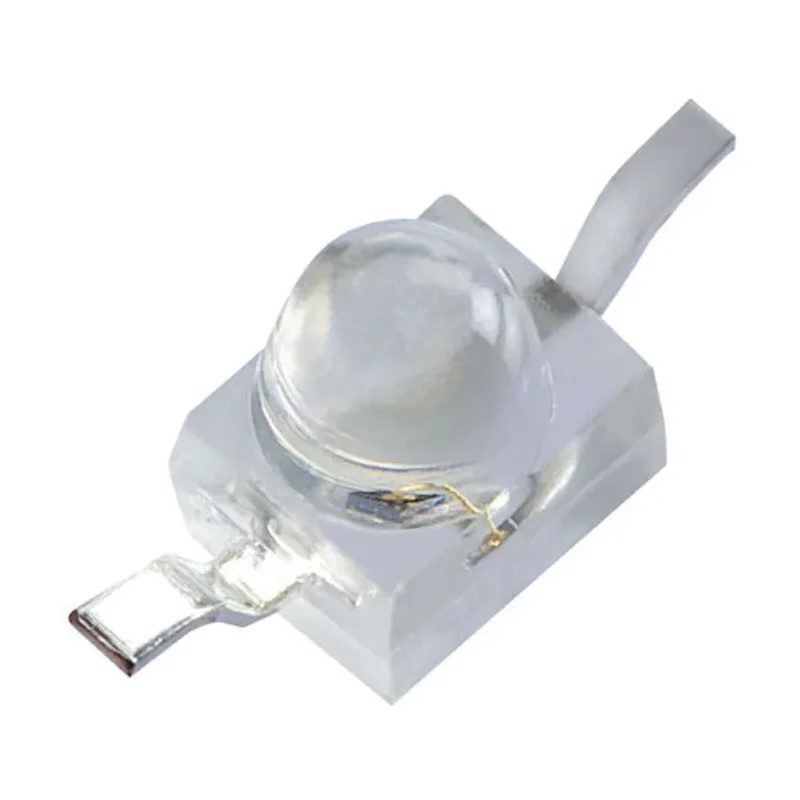

Kingbright 4 V Blue Subminiature Surface Mount LED with Dome Lens KM2520QBC-D09

Name: Kingbright 4 V Blue Subminiature Surface Mount LED with Dome Lens KM2520QBC-D09
Brand: Kingbright
SKU: 382486
Price: 0.65 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Model	KM2520QBC-D09
Packaging	Tape & Reel
Mount Type	Surface
Series	KM2520
Maximum forward current	150mA
Viewing angle	20 °
Package Type	Subminiature
Standards/Approvals	RoHS
LED Colour	Blue
Dominant Wavelength	465nm
Forward Voltage	4V
Number of Pins	2
LED Luminosity	900 mcd
Maximum Power Dissipation	120mW
Lens Dimensions	2.5 x 2 x 2.8 mm
Lens Shape	Dome
Lead types	Gull-wing (GW), yoke and z-bend

Key Features

The LED operates at a forward voltage of 4 volts.
It supports a maximum forward current of 150 mA for reliable performance.
This LED package features a low-profile 2.5 x 2 x 2.8 mm dimension.
The dome lens design provides a narrow 20° viewing angle.
It has a luminous intensity of 900 mcd for bright light output.
The LED is RoHS compliant, ensuring environmental safety.
Packaging is supplied on tape and reel for automated assembly.
It includes Gull-wing, yoke, and z-bend lead types for mounting versatility.

Product Description

Kingbright KM2520QBC-D09 is a high-quality blue LED designed in a subminiature surface mount package with a dome-shaped clear lens. The LED operates at a typical forward voltage of 4 V and a maximum forward current of 150 mA, making it suitable for numerous electronics and lighting applications requiring compact, efficient light sources.

The LED's package dimensions measure approximately 2.5 mm x 2.0 mm x 2.8 mm, offering a low-profile solution ideal for space-sensitive circuit designs. Its dome lens provides a narrow viewing angle of 20 degrees, concentrating light output with a luminous intensity rating of 900 millicandelas (mcd), delivering bright, clear blue illumination.

This LED is supplied on tape and reel packaging to enable efficient, automated manufacturing processes in industrial and commercial electronics production. It features multiple lead styles including Gull-wing (GW), yoke, and z-bend for diverse surface mount configurations.

Compliant with RoHS standards, the KM2520QBC-D09 offers environmentally responsible performance without compromising reliability. Although not compliant with automotive standards, it is well suited for general electronic indicator, display, and signaling applications in electronics manufacturing, laboratory instrumentation, and consumer devices.

The product origin is China, ensuring adherence to international manufacturing quality. Kingbright's KM2520 series sets a benchmark for durable, long-life solid state lamps in compact surface mount formats.

The LED operates with a forward voltage of 4 volts and maximum current of 150 mA. Low-profile subminiature 2.5 x 2 x 2.8 mm package size. Dome lens with 20° viewing angle for focused blue light output. Luminous intensity of 900 mcd providing high brightness.

RoHS compliant to meet environmental safety standards. Supplied in tape and reel packaging for automated assembly. Multiple lead types including Gull-wing for versatile mounting. Manufactured in China with proven quality assurance.
