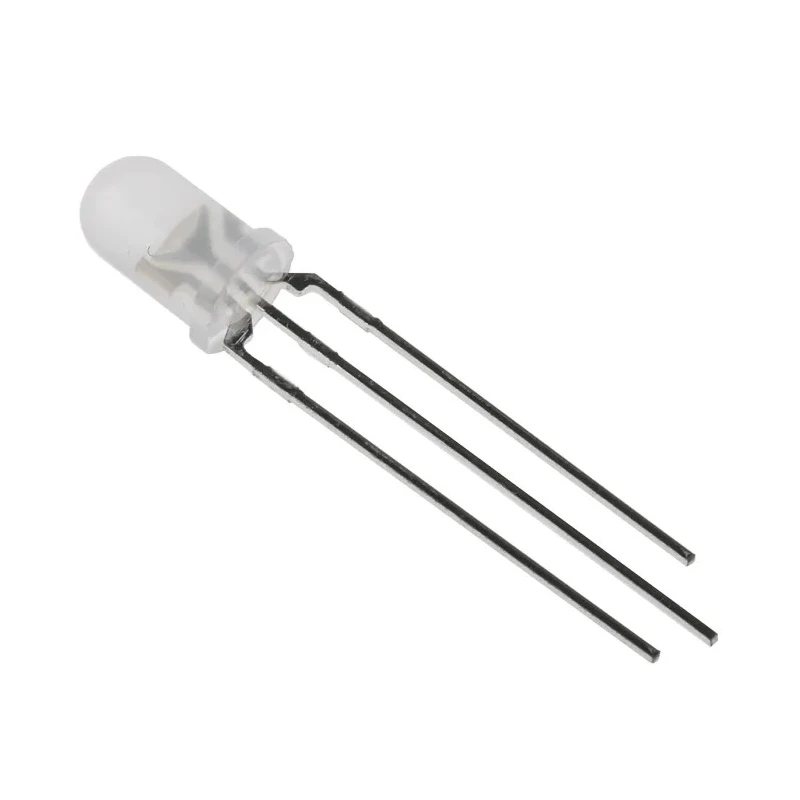

Kingbright 2.5 V Red, Green LED 5 mm (T-1 3/4) Through Hole Multi-Colour LED L-59EGC

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 2.5 V Red, Green LED 5 mm (T-1 3/4) Through Hole Multi-Colour LED L-59EGC

Name: Kingbright 2.5 V Red, Green LED 5 mm (T-1 3/4) Through Hole Multi-Colour LED L-59EGC
Brand: Kingbright
SKU: 382469
Price: 0.36 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Model	L-59EGC
Packaging	Tape & Reel
Mount Type	Through Hole
Series	Multi-Colour LED
Number Of Leds	1
Maximum forward current	30mA
Viewing angle	24 °
Package Type	5 mm (T-1 3/4)
Standards/Approvals	RoHS
LED Colour	Red, Green
Dominant Wavelength	568, 617nm
Forward Voltage	2.5V
Number of Pins	3
LED Luminosity	120 mcd, 200 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	5 (Dia.) x 8.6 mm
Lens Shape	Round

Key Features

The LED package is a 5 mm diameter clear round lens with a viewing angle of 24 degrees.
It operates at a maximum forward current of 30 mA and maximum power dissipation of 75 mW.
The LED has three pins and is supplied in tape and reel packaging for ease of assembly.
This multi-colour LED features dominant wavelengths of 568 nm (green) and 617 nm (red) with brightness levels of 120 mcd and 200 mcd respectively.
The LED is RoHS compliant and manufactured in China, ensuring environmental and regulatory standards compliance.
Suitable for use in electronic displays, indicators, and general optoelectronic applications requiring visible red and green light output.

Product Description

Kingbright L-59EGC is a 5 mm (T-1 3/4) through-hole multi-colour LED designed for various electronic applications. It operates at a forward voltage of 2.5 V and supports a maximum forward current of 30 mA with a power dissipation limit of 75 mW. The component features a clear, round lens with a diameter of 5 mm and an overall lens dimension of 5 (Dia.) x 8.6 mm, emitting red and green light with dominant wavelengths of 617 nm and 568 nm respectively.

This LED includes three pins for through-hole mounting and is packaged in tape and reel format compatible with automated assembly processes. The viewing angle of 24 degrees provides a focused light output, while luminous intensities of 200 mcd (red) and 120 mcd (green) ensure visibility in various ambient lighting conditions.

Certified to comply with RoHS directives, this LED meets environmental standards restricting hazardous substances, making it suitable for industrial, electronic, and commercial lighting indicator use. Manufactured in China under Kingbright's established quality protocols, it offers a reliable and long-lasting solution for multi-colour LED requirements.

The LED’s robust design delivers low power consumption and extended service life. Its versatility makes it ideal for applications including status indicators, electronic display backlighting, and signal lights in industrial devices.

Clear lens finish enhances luminous efficiency and light transmission. Packaging in tape and reel aids in efficient surface mount or through-hole assembly operations. Explore the Electronics Components category on EnvMart for additional Kingbright LEDs and complementary optoelectronic components suitable for your electronic design needs.
