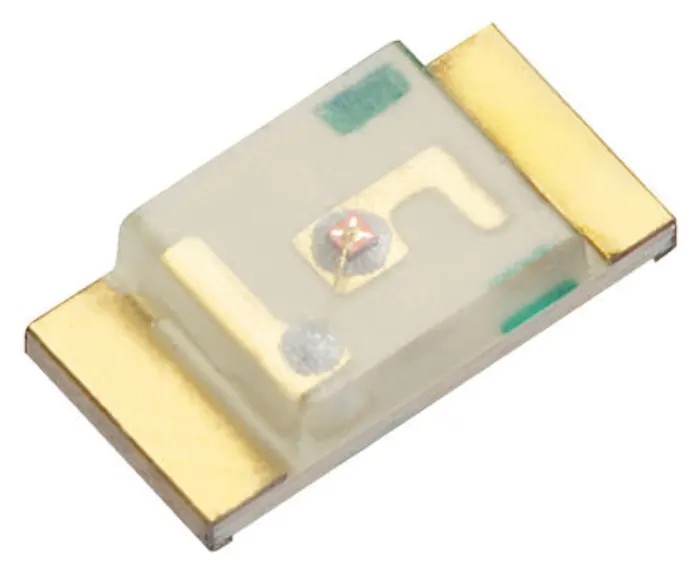

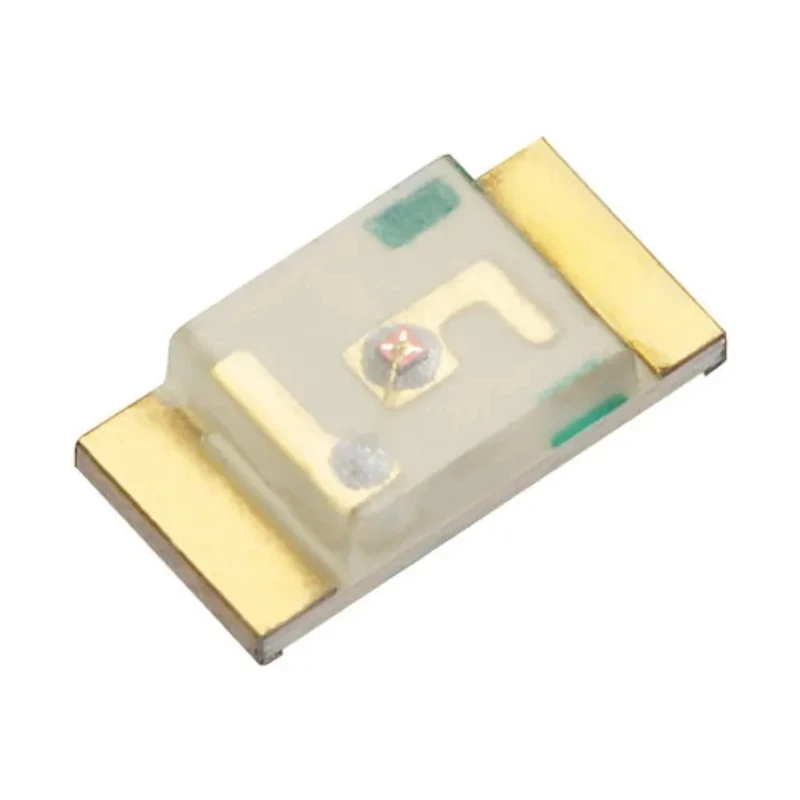

Kingbright 2.5 V Yellow LED 3216 Surface Mount 8 mcd Luminosity Rectangular Lens KPT-3216YC

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 2.5 V Yellow LED 3216 Surface Mount 8 mcd Luminosity Rectangular Lens KPT-3216YC

Name: Kingbright 2.5 V Yellow LED 3216 Surface Mount 8 mcd Luminosity Rectangular Lens KPT-3216YC
Brand: Kingbright
SKU: 382376
Price: 0.14 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Height	0.75 mm
Model	KPT-3216YC
Mount Type	Surface
Series	KPT-3216YC
Maximum forward current	30mA
Viewing angle	120 °
Package Type	3216
Standards/Approvals	RoHS
LED Colour	Yellow
Dominant Wavelength	588nm
Forward Voltage	2.5V
Number of Pins	2
LED Luminosity	8 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	3.2 x 1.6 x 0.75 mm
Lens Shape	Rectangular

Key Features

The LED features a compact 3216 (1206) SMT package with a height of 0.75 mm.
It is designed with a rectangular clear lens for wide viewing angle of 120 degrees.
The maximum forward current is rated at 30 mA ensuring reliable performance.
Power dissipation peaks at 75 mW to ensure energy-efficient operation.
This yellow LED has a dominant wavelength of 588 nm for accurate colour reproduction.
The device includes two pins for surface mounting on PCBs.
The product meets RoHS compliance standards for environmental safety.
Manufactured in China, it is suitable for backlighting and indicator applications.

Product Description

Kingbright KPT-3216YC Yellow LED 3216 Surface Mount is a high-quality surface mount LED designed for efficient illumination in compact electronic devices and circuit boards. With a forward voltage of 2.5 V and maximum power dissipation of 75 mW, this LED provides bright yellow light at a luminosity of 8 mcd, making it ideal for indicator lights and backlighting applications.

The 3216 SMT package features a low height of 0.75 mm and a clear rectangular lens that offers a wide 120-degree viewing angle, ensuring broad light dispersion. The LED is designed with two pins for secure surface mounting, supporting ease of integration in various electronics manufacturing contexts.

Operating at a maximum forward current of 30 mA, this LED balances brightness with power efficiency. The dominant wavelength of 588 nm ensures the emitted light is a vivid yellow, suited for diverse uses including dashboard indicators, electronic displays, and consumer electronics.

This Kingbright LED is RoHS compliant, indicating that it meets environmental standards by limiting hazardous substances. Manufactured in China, it is a reliable component for electronic product manufacturers and repairers.

The LED is part of the KPT-3216YC series, known for its standard 1206 (3216) package and excellent build quality. This product is suitable for industrial, laboratory, manufacturing, and commercial electronics assembly and repair applications.

The LED features a compact SMT 3216 package with low profile height. It provides a yellow light output with 8 mcd luminosity and 588 nm wavelength. Designed for surface mounting with two pins for easy PCB integration. Wide viewing angle of 120 degrees from the clear rectangular lens.

Maximum forward current rating of 30 mA ensures controlled current operation. Complies with RoHS standards for safe environmental use. Manufactured in China with consistent quality standards. Explore more high-quality electronic components and LEDs in our comprehensive catalog to meet your industrial and commercial electronics assembly needs.
