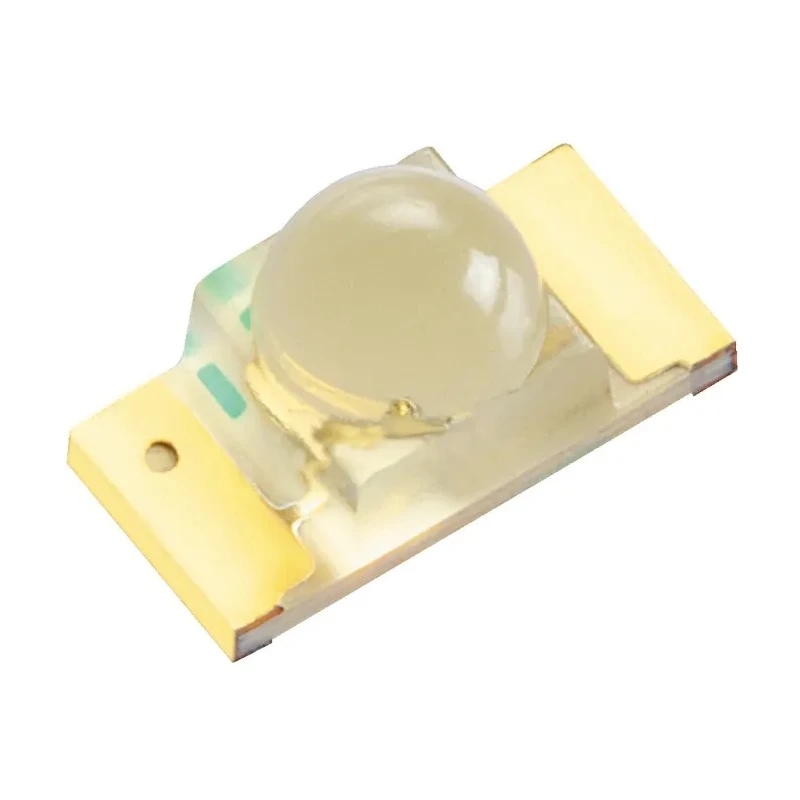

Kingbright 2.5 V Yellow LED 3216 Surface Mount Dome Lens 800 mcd KPTD-3216SYCK

Kingbright KPTD-3216SYCK is a surface mount yellow LED in the 3216 package offering reliable performance for electronic lighting applications. Operating at 2.5 V forward voltage and supporting a maximum forward current of 175 mA, this LED provides bright illumination with a luminous intensity of 800 mcd. Its compact 3.2 x 1.6 x 1.8 mm dimensions and dome lens with a 1.8 mm height produce a focused 35-degree viewing angle, ideal for indicator and backlighting systems.

The clear, dome-shaped lens enhances light output and color purity, emitting yellow light at a dominant wavelength of 590 nm. Packaged in tape and reel format, it supports efficient automated surface mount device (SMD) manufacturing processes. This LED complies with RoHS directives, ensuring no hazardous substances in its construction.

This component is commonly used in industrial electronics, consumer devices, instrumentation, and display systems where clear yellow indication is required. Its small size and surface mount design make it suitable for compact PCBs in commercial and manufacturing settings.

Forward voltage: 2.5 V provides efficient power use. Maximum forward current of 175 mA ensures consistent brightness. Compact 3216 package size (3.2 x 1.6 x 1.8 mm) supports dense PCB layouts. Clear dome lens with 35° viewing angle enhances light focus.

Brightness of 800 mcd delivers visible indication even in bright environments. RoHS compliance for environmental safety. Available on tape and reel for automated SMT assembly. Two-pin design for standard electrical connections.

This Kingbright LED series is well-suited for diverse electronics applications including instrumentation displays, control panels, communication equipment, and various signal indicators in industrial and commercial environments. Explore more LED components and other optoelectronic solutions in the Electronics Components category on EnvMart.
