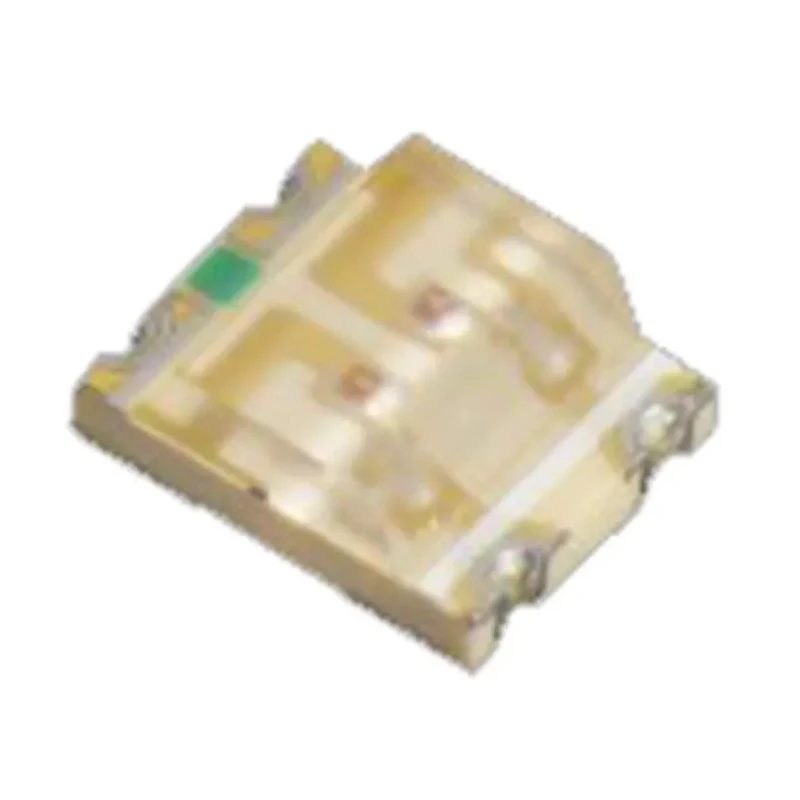

Kingbright 2.5 V Yellow, Green Bi-Colour LED 3025 Surface Mount KPBL-3025SYKCGKC

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 2.5 V Yellow, Green Bi-Colour LED 3025 Surface Mount KPBL-3025SYKCGKC

Name: Kingbright 2.5 V Yellow, Green Bi-Colour LED 3025 Surface Mount KPBL-3025SYKCGKC
Brand: Kingbright
SKU: 382289
Price: 0.32 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	3.0 x 2.5 mm
Model	KPBL-3025SYKCGKC
Packaging	Tape & Reel
Mount Type	Surface
Number Of Leds	2
Maximum forward current	30mA
Viewing angle	100 °
Package Type	3025
Standards/Approvals	RoHS
LED Colour	Yellow, Green
Dominant Wavelength	570, 590nm
Forward Voltage	2.5V
Number of Pins	4
LED Luminosity	120 mcd, 400 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	3 x 2.5 x 1.4 mm
Lens Shape	Dome

Key Features

This LED features a 1109 SMT chip package with dimensions of 3.0 x 2.5 mm.
It has a maximum forward current rating of 30 mA ensuring low power consumption.
The LED provides luminous intensities of 120 mcd and 400 mcd for yellow and green respectively.
Its dome-shaped clear lens offers a wide viewing angle of 100 degrees.
Designed with 4 pins for stable surface mount installation.
Suitable applications include backlighting and indicators in electronic devices.
Complies with RoHS standards and is manufactured in China.

Product Description

Kingbright KPBL-3025SYKCGKC is a bi-colour LED device designed in a compact 1109 surface mount technology (SMT) package commonly known as the 3025 package. Operating at 2.5 V forward voltage, this LED incorporates yellow and green light-emitting elements ideal for multi-colour indication and display applications.

The LED features a clear dome-shaped lens with dimensions 3.0 x 2.5 x 1.4 mm, providing a broad viewing angle of 100 degrees which ensures visibility from various angles. It is capable of handling a maximum forward current of 30 mA with a maximum power dissipation of 75 mW, effectively balancing brightness and energy efficiency.

Its luminance ratings are 120 mcd for the yellow LED and 400 mcd for the green LED, emitting dominant wavelengths of 570 nm and 590 nm respectively. The device is constructed with 4 pins enabling stable and reliable surface mount placement on printed circuit boards (PCBs).

Compliant with RoHS directives, Kingbright guarantees environmentally friendly manufacturing standards. These LEDs are commonly used in industrial, electronic, consumer, and automotive display applications where dual colour indication is required.

This LED device features the well-recognized 1109 package in SMT form. Its wide 100° viewing angle supports enhanced visibility and display effectiveness. Yellow and green colours provide versatile indication options for various industrial and electronic purposes.

Low forward voltage and current ratings promote energy-efficient operation. Clear dome lens aids in optimal light diffusion and visual appeal. Suitable for incorporation into backlights, indicators, and signaling systems.
