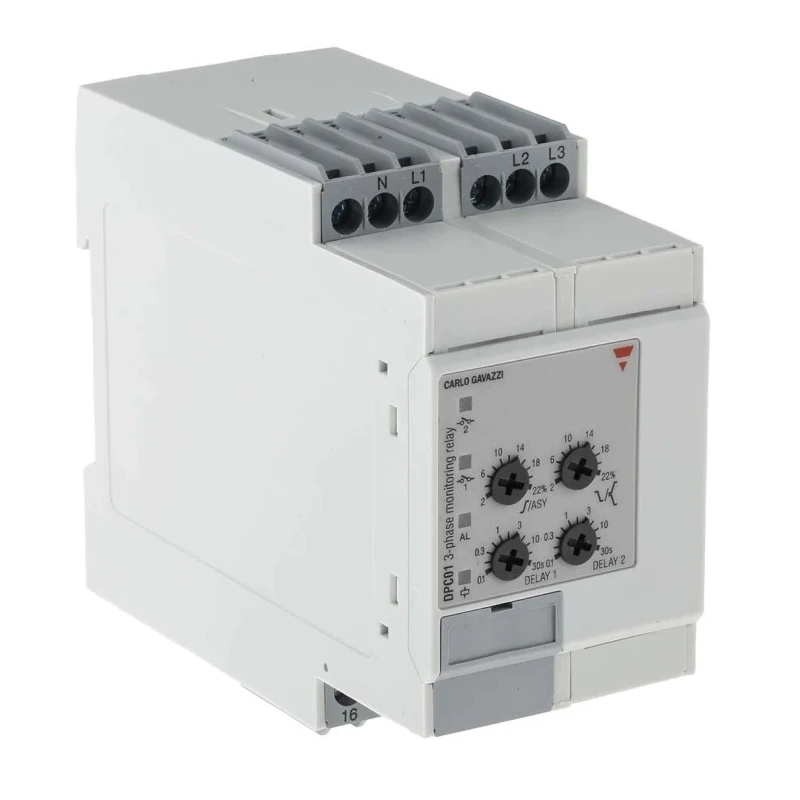

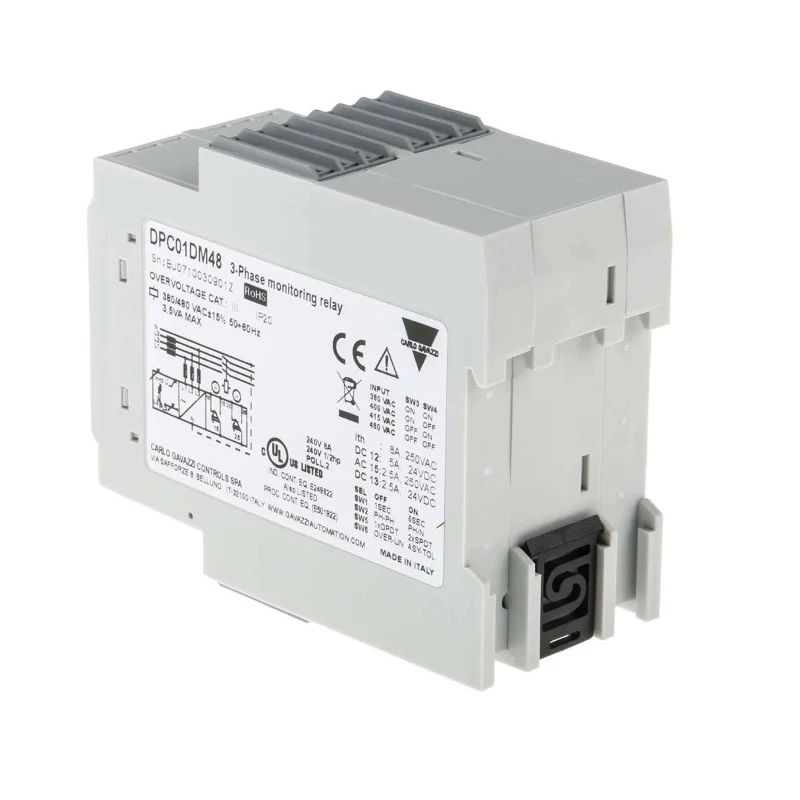

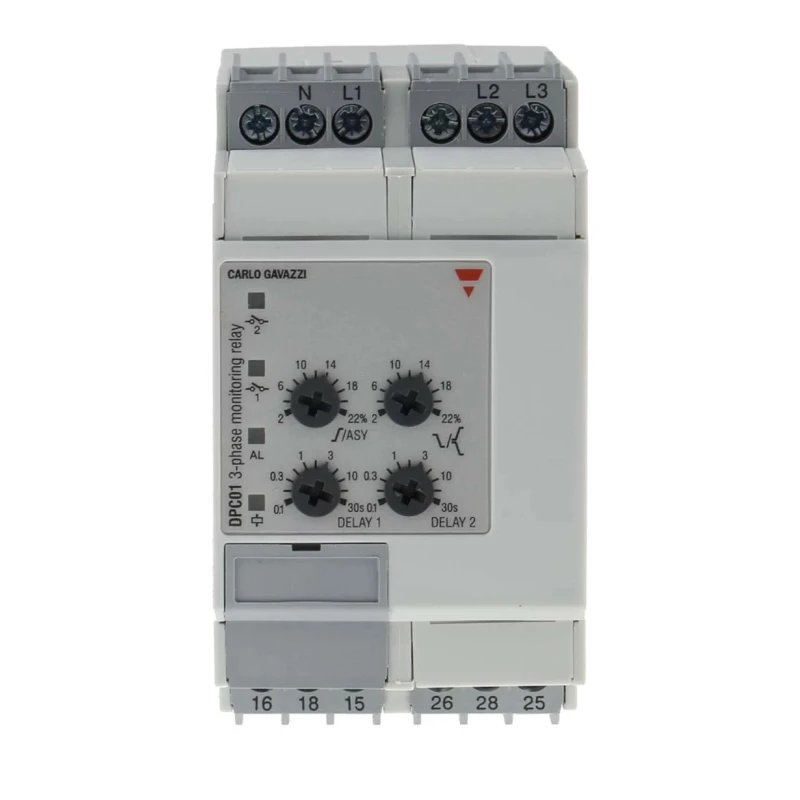

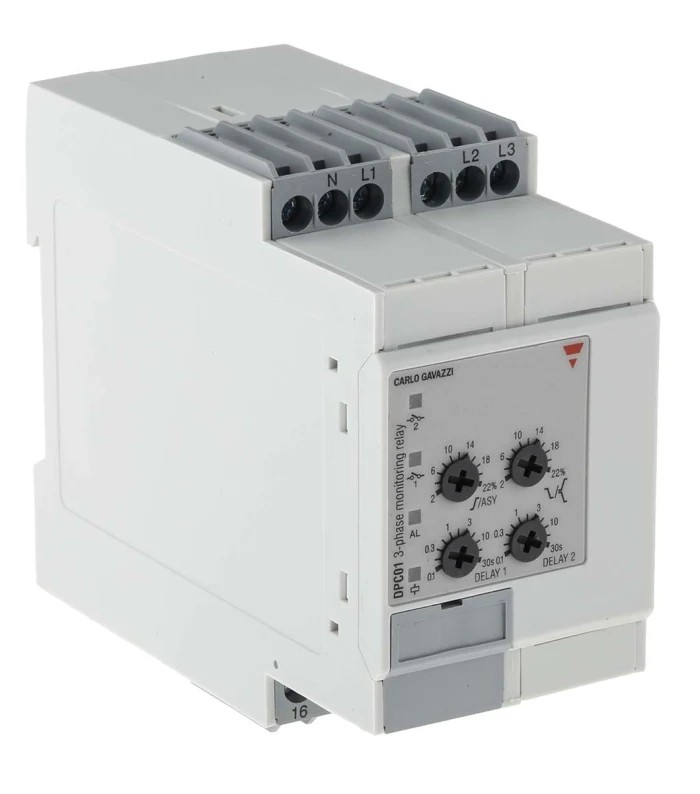

Carlo Gavazzi Monitoring Relay, 3 Phase, 323/550 V AC Monitor Range, SPDT Contact, DIN Rail Mount, 0V AC 24 V DC DPC01DM48

Carlo Gavazzi DPC01DM48 monitoring relay is designed for industrial and commercial electrical applications requiring comprehensive three-phase monitoring. This multifunction relay monitors phase sequence, phase presence, under and over-voltage, and phase asymmetry with separately adjustable set points for high precision.

The relay features a Single Pole Double Throw (SPDT) contact configuration enabling flexible application in control systems. Its DIN rail mount design facilitates quick and secure installation within electrical cabinets commonly used in manufacturing, HVAC, and automation industries.

This model operates on a 24 V DC power supply with a 0 V AC auxiliary input voltage, ensuring compatibility with various industrial power systems. The relay's monitoring voltage range spans 323 to 550 V AC, suitable for standard three-phase supply voltages in industrial setups.

An LED indicator provides clear visual feedback on relay status, alarm conditions, and power supply health, improving system monitoring and troubleshooting. Adjustable delay times from 0.1 to 30 seconds allow customization of relay response to transient voltage conditions, reducing nuisance tripping.

The relay's IP20 rated enclosure offers protection against solid objects larger than 12.5 mm, appropriate for controlled indoor environments. This product meets international compliance standards including UL certification, RoHS, CSA, IEC 60947, and electromagnetic compatibility standards EN 61000-6-2 and EN 61000-6-3.

With compact dimensions of 99.5 mm length, 80 mm height, and 45 mm width, the DPC01DM48 fits efficiently into space-constrained panel designs. Manufactured in Italy, this relay assures durable quality and reliable performance for critical electrical monitoring tasks.

Package contents include one Carlo Gavazzi DPC01DM48 monitoring relay with screw-type terminals for secure wiring connections. Ideal for industries such as industrial automation, power distribution, HVAC systems, and manufacturing plants requiring precise phase monitoring and protection.

Browse the Electronics & Electricals category for more Monitoring Relay solutions designed to optimize your electrical infrastructure. Supports 3-phase electrical monitoring with adjustable set points for phase sequence and voltage.

Provides SPDT contact configuration for versatile switching applications. DIN rail mountable for easy installation in control panels. Operates with 24 V DC supply and 0 V AC auxiliary voltage. Includes LED indication for relay, alarm, and power supply status.

Adjustable delay functions between 0.1 and 30 seconds for custom response times. IP20 rated enclosure suitable for industrial environments. Complies with UL, RoHS, CSA, IEC 60947, and EN 61000 standards. Compact dimensions: 99.5 mm length, 80 mm height, and 45 mm width.

Designed and made in Italy ensuring high product quality.
