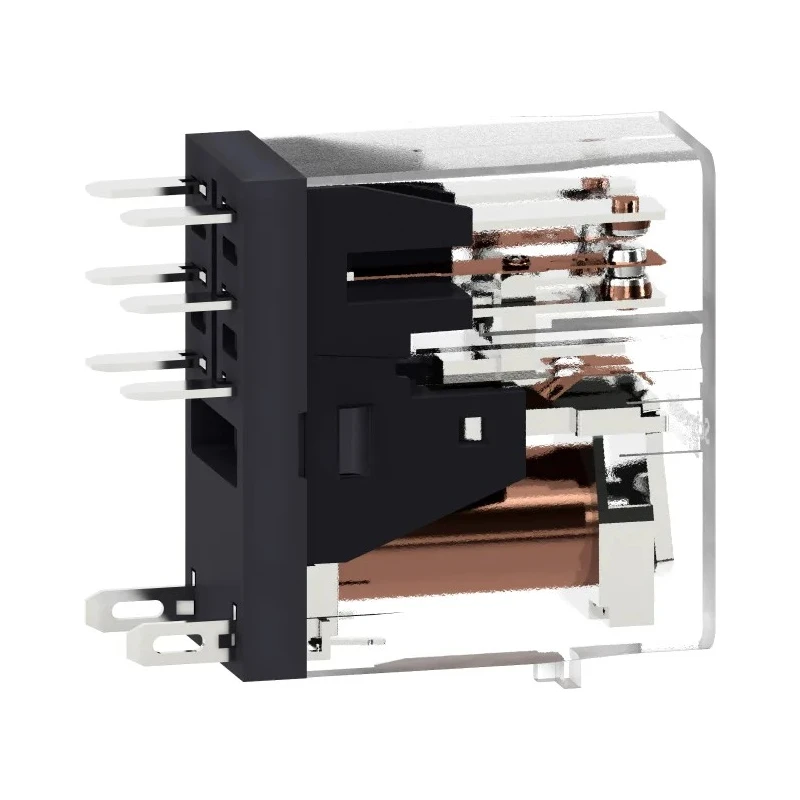

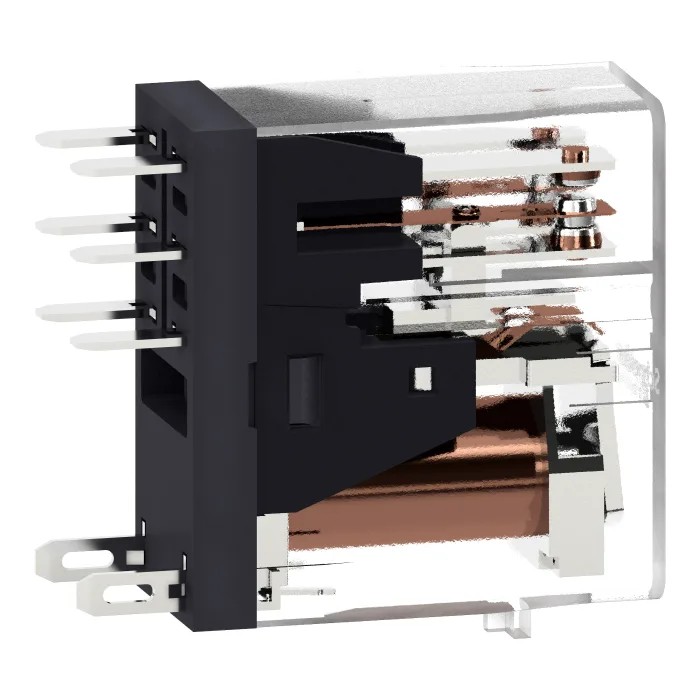

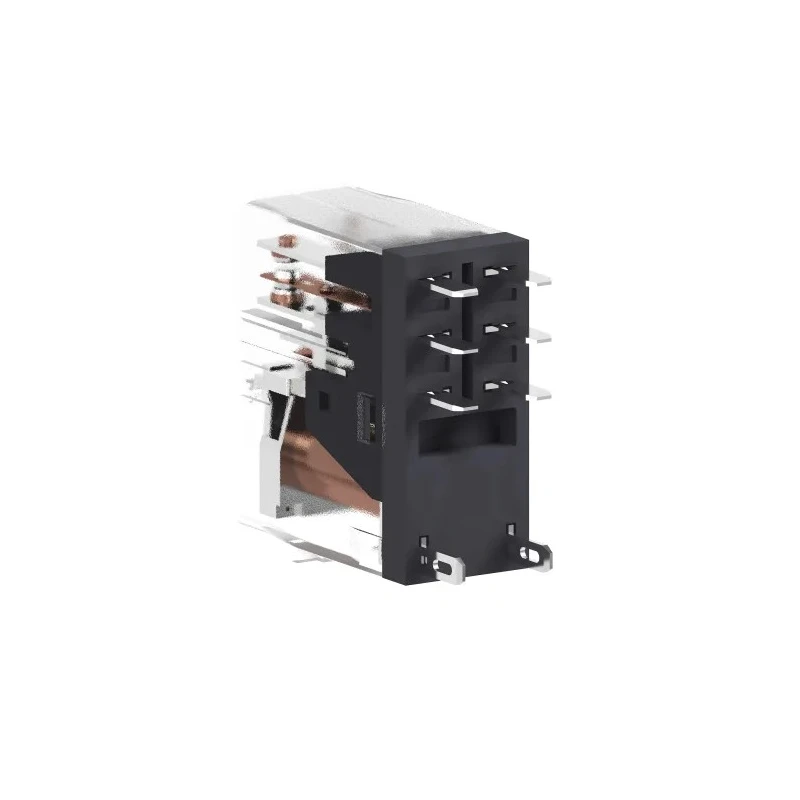

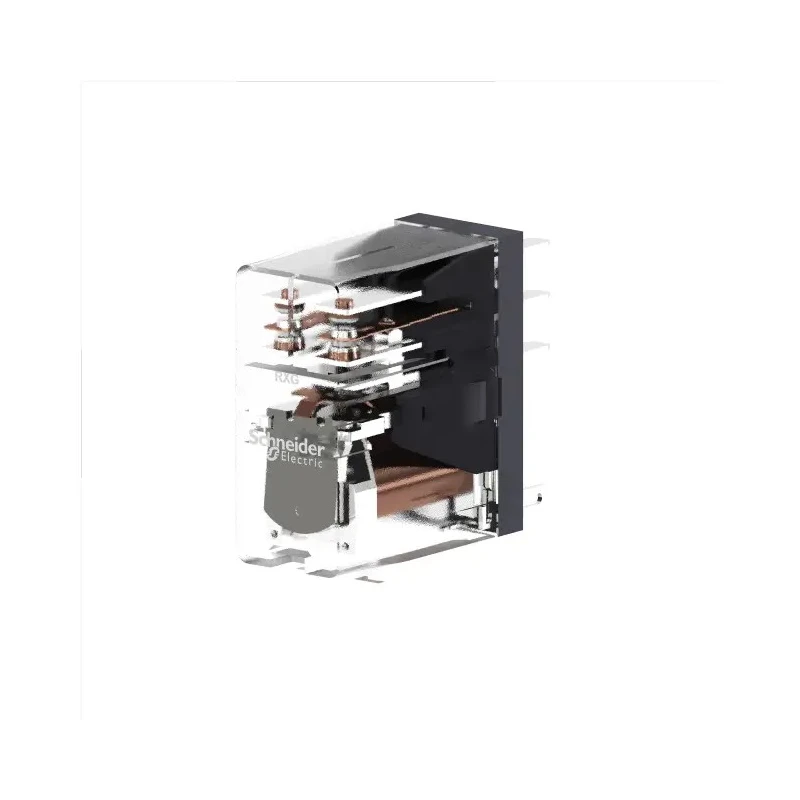

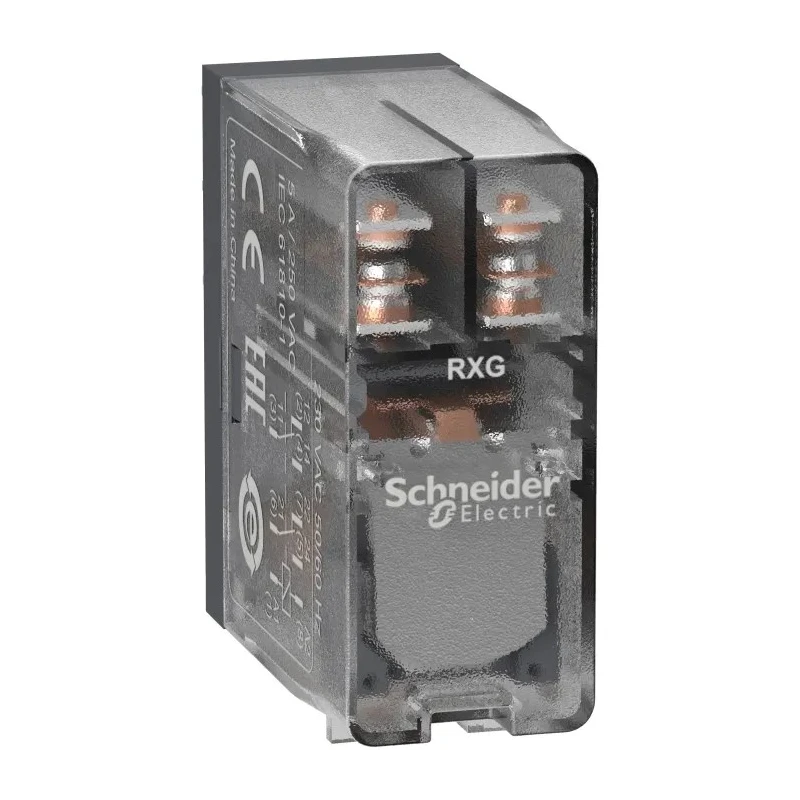

Schneider Electric Power Relay 24V AC Coil 5A Switching Current DPDT Harmony RXG RXG25B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 29mm |
| Length | 13mm |
| Model | RXG25B7 |
| Width | 30.8mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 260Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 820mW |
Key Features
- Plug-in terminal type ensures quick and secure installation.
- Operates reliably between -40°C and 70°C for industrial environments.
- Silver alloy contacts provide durable and low contact resistance of 100mΩ.
- Compact dimensions of 29mm height, 30.8mm width, and 13mm length save space in enclosures.
- CE and CSA standards compliance ensures quality and safety in applications.
- Coil resistance measured at 260Ω with coil power of 820mW.
- Switching voltage ratings include 250V AC and 30V DC for versatile control uses.
- Transparent IP40 enclosure cover allows visual status inspection of contacts.
Product Description
Schneider Electric RXG25B7 is a high-quality Power Relay designed for industrial and automation applications requiring reliable control switching. Featuring a 24V AC coil and double pole double throw (DPDT) contact arrangement, it supports a switching current of 5A suitable for a variety of control systems.
The relay's plug-in terminal design ensures quick mounting and replacement, making it ideal for use in programmable logic controllers (PLCs) and hard-wired logic systems. It operates efficiently in temperature ranges from -40°C to 70°C, accommodating harsh industrial environments.
Contact material is silver alloy providing excellent conductivity and low resistance of 100mΩ, which helps reduce power loss during operation. The compact size with 29mm height, 30.8mm width, and 13mm length allows for space-saving layouts in electrical panels and enclosures. The transparent IP40 protective cover offers easy visual inspection of relay status for maintenance personnel.
It supports switching voltages of up to 250V AC and 30V DC, making it versatile for AC and DC control circuits. Coil resistance and power specifications (260Ω, 820mW) ensure energy-efficient operation. The product complies with CE and CSA standards confirming its safety and reliability credentials.
This relay is well-suited for electrical automation, manufacturing, HVAC control, and industrial machinery applications where precise and dependable relay switching is necessary. Plug-in terminal type ensures quick and secure installation.
Operates reliably between -40°C and 70°C for industrial environments. Silver alloy contacts provide durable and low contact resistance of 100mΩ. Compact dimensions of 29mm height, 30.8mm width, and 13mm length save space in enclosures.
CE and CSA standards compliance ensures quality and safety in applications. Coil resistance measured at 260Ω with coil power of 820mW. Switching voltage ratings include 250V AC and 30V DC for versatile control uses. Transparent IP40 enclosure cover allows visual status inspection of contacts.
Explore the wide range of Schneider Electric automation and relay products on EnvMart for dependable industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V AC.
This model has a switching current capacity of 5A.
The relay has a height of 29mm, a width of 30.8mm, and a length of 13mm.
It features a double pole double throw (DPDT) contact configuration.
The relay operates reliably between -40°C and 70°C.
The contacts are made from silver alloy, providing low contact resistance.
The contact resistance is measured at 100mΩ.
It complies with CE and CSA standards, ensuring quality and safety.
The coil resistance is 260Ω, and the coil power is 820mW.
It supports switching voltages of up to 250V AC and 30V DC.
It features a plug-in terminal type for quick and secure installation.
This relay is suitable for electrical automation, manufacturing, HVAC control, and industrial machinery applications.
