Schneider Electric Power Relay 240V AC Coil, 8A Switching Current, 4PDT RXM4AB1U7

Free Delivery in India | Lowest Global Shipping Charges

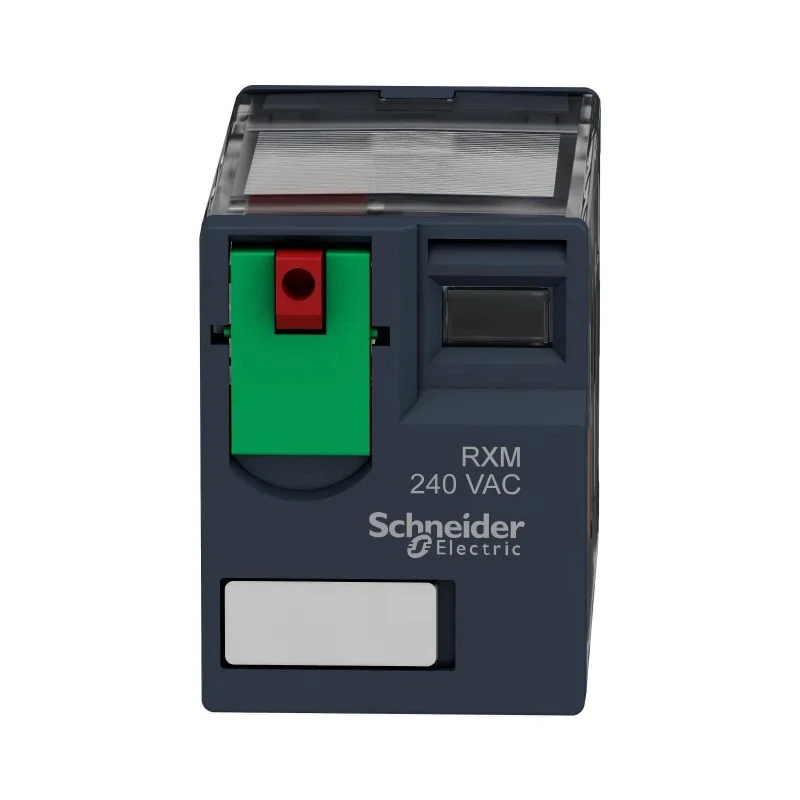

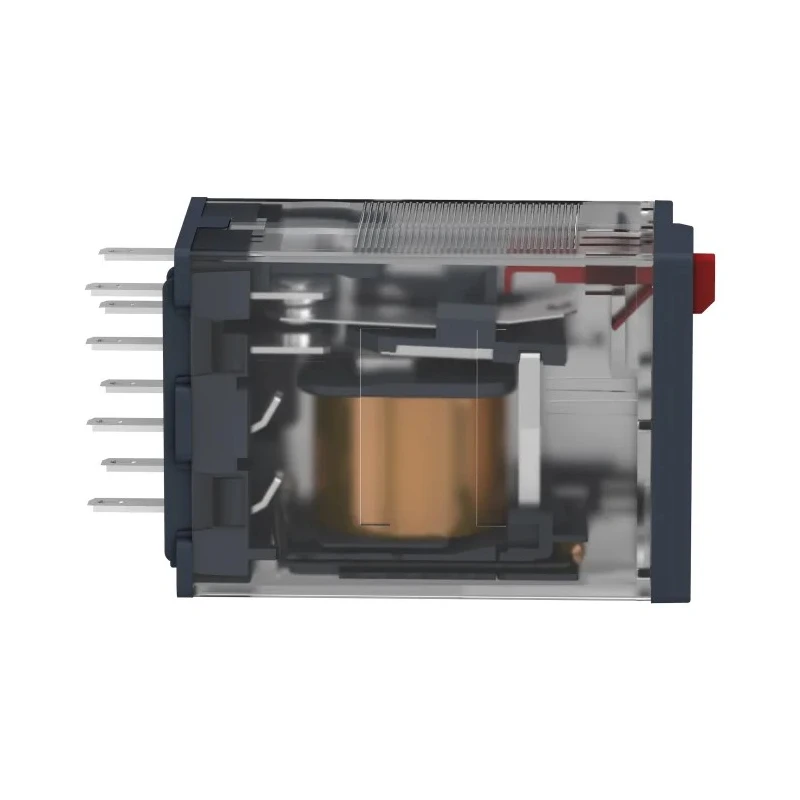

Schneider Electric Power Relay 240V AC Coil, 8A Switching Current, 4PDT RXM4AB1U7

Name: Schneider Electric Power Relay 240V AC Coil, 8A Switching Current, 4PDT RXM4AB1U7
Brand: Schneider Electric
SKU: 384925
Price: 16.57 USD
Availability: InStock



Category Power Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	China
Brand	Schneider Electric
Height	27mm
Length	21mm
Model	RXM4AB1U7
Width	47.7mm
Contact Material	Silver Alloy
Series	Harmony Relay RXM
Maximum Operating Temperature	55°C
Contact Configuration	4PDT
Minimum Operating Temperature	-40°C
Switching Current	8A
Terminal type	Plug-In
Standards/Approvals	CE, CSA
Coil Resistance	17.7kΩ
Coil Voltage	240V ac
Switching DC Voltage	28V dc
Switching AC Voltage	250V ac
Coil Power	1.2W

Key Features

The relay operates with a coil voltage of 240V AC for standard industrial power supply compatibility.
Equipped with a 4PDT (four-pole double throw) contact configuration allowing for versatile circuit control.
The switching capacity supports currents up to 8 amps and switching power of 1.5 kVA.
Constructed with silver alloy contacts providing reliable conductivity and durability.
The relay coil consumes 1.2 watts of power, ensuring low energy usage.
Capable of operating in a wide temperature range from -40°C to 55°C for various environmental conditions.
Plug-in terminal type makes installation and maintenance straightforward.
Compact dimensions measuring 27mm height, 21mm length, and 47.7mm width to fit tight spaces.

Product Description

Schneider Electric RXM4AB1U7 Power Relay is a compact miniature relay with a 240V AC coil voltage and an 8A switching current, designed for industrial machinery, building automation, and HVAC systems. This relay employs a 4PDT contact configuration, offering multiple simultaneous circuit switching capabilities essential in complex control panels.

The relay features silver alloy contacts that provide excellent conductivity and resistance to wear, ensuring long operational life even in demanding environments. Its coil resistance of 17.7 kΩ and coil power rating of 1.2W contribute to efficient energy usage.

Designed for durability, the RXM4AB1U7 functions reliably within a temperature range of -40°C to 55°C making it suitable for a diverse range of industrial and commercial applications. The plug-in terminal type facilitates ease of installation and replacement, minimizing downtime.

Measuring 27 mm in height, 21 mm in length, and 47.7 mm in width, the relay fits convenient installation in electrical enclosures with limited space. It meets CE and CSA approvals, underlining its compliance with international safety and quality standards.

This power relay enhances the functional capabilities of automation and control systems in industrial manufacturing, water treatment plants, HVAC units, and building management systems. Its robust construction and approved certifications make it a reliable choice for critical electrical applications.

The relay operates at 240V AC coil voltage ensuring compatibility with standard industrial controls. It supports an 8A switching current for medium power switching tasks. The 4PDT contact configuration allows connection to multiple circuits concurrently.

Silver alloy contact material ensures excellent electrical performance and durability. Plug-in terminals offer practical ease of installation and replacement. Explore a comprehensive range of Power Relays and electrical control products on EnvMart for your industrial and commercial needs.
