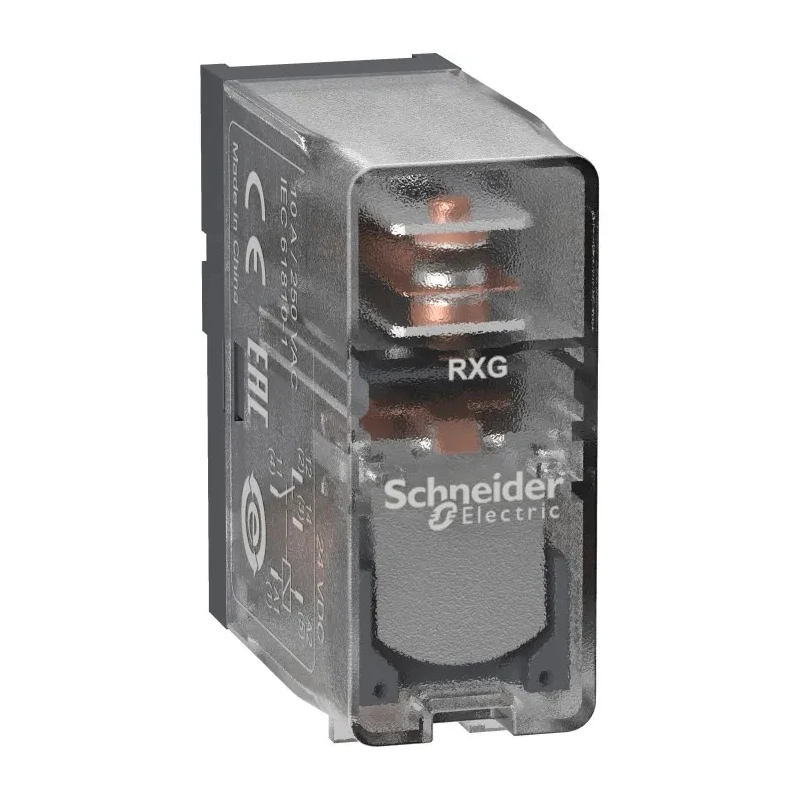

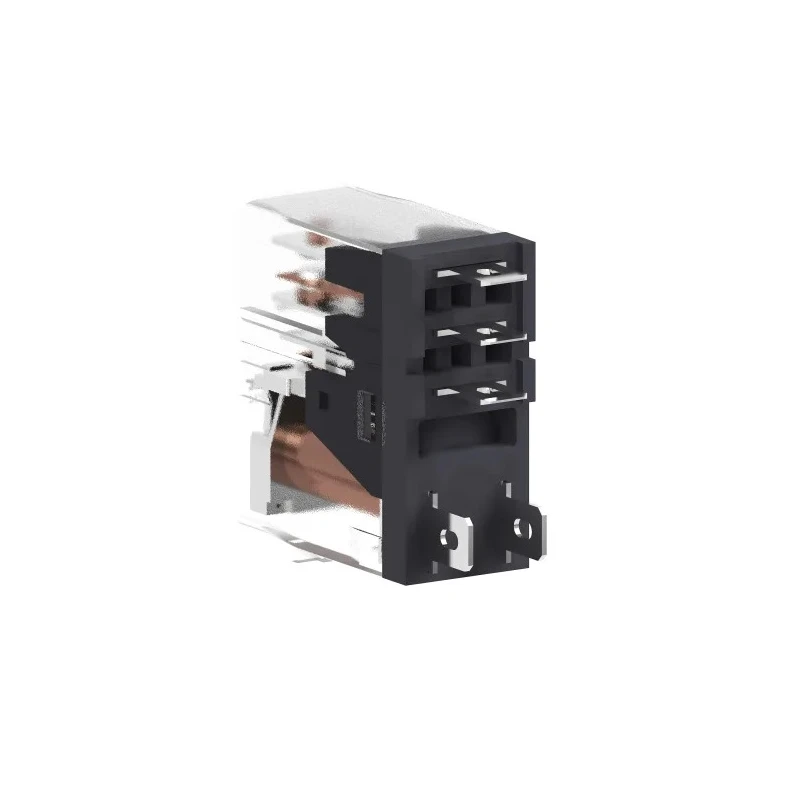

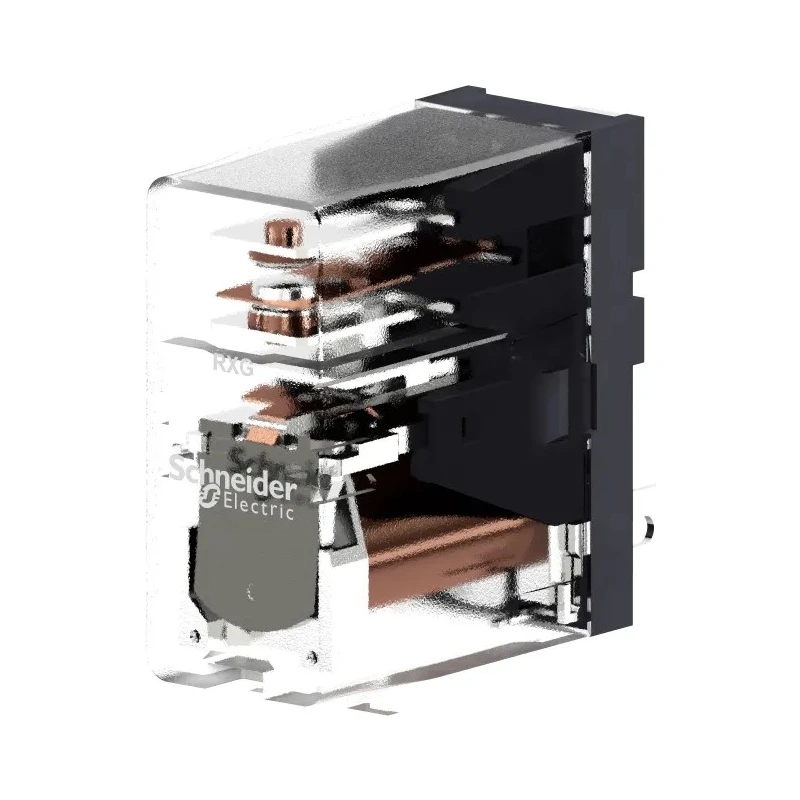

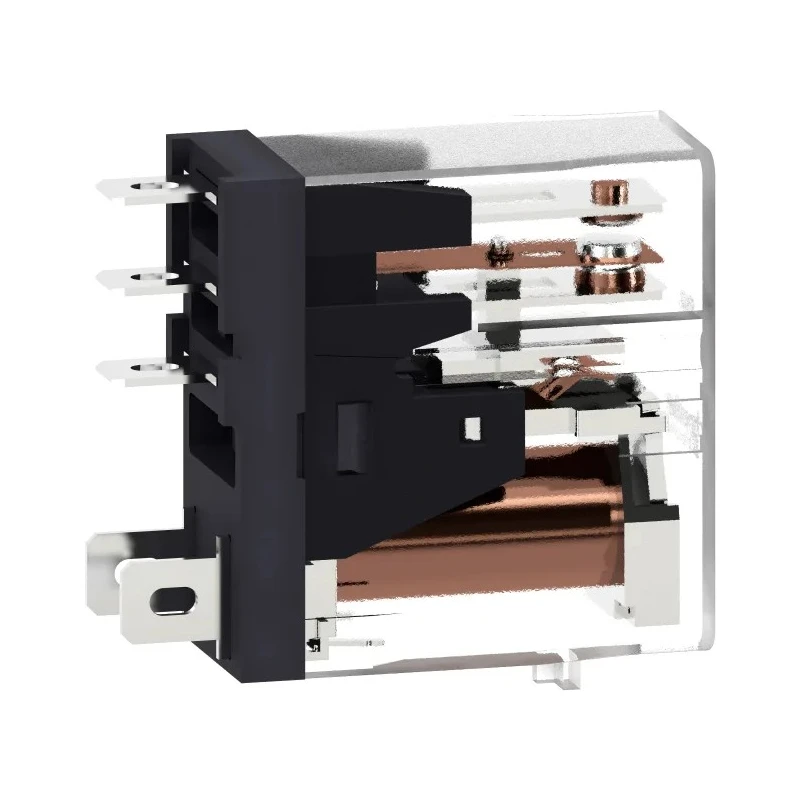

Schneider Electric Power Relay, 24V DC Coil, 10A Switching Current, SPDT, Harmony Relay RXG Series RXG15BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 29mm |
| Length | 13mm |
| Model | RXG15BD |
| Width | 29mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- The relay supports a coil voltage of 24V DC for efficient electromagnetic operation.
- It features a single pole double throw (SPDT) contact configuration suitable for various circuit switching tasks.
- This Harmony Relay RXG Series model consumes only 0.53W coil power, making it energy efficient.
- Compact in size with dimensions 13mm (L) x 29mm (W) x 29mm (H) for space-saving installations.
- Rated for a switching current of 10A allowing use in medium power applications.
- Withstand voltage up to 5kV AC dielectric strength ensures workplace safety by insulation against electrical hazards.
- The relay can operate in temperatures ranging from -40°C to 70°C, suitable for industrial environments.
- Silver alloy contacts provide reliable and low resistance switching with 100mΩ contact resistance.
Product Description
Schneider Electric RXG15BD Power Relay is a durable industrial relay from the Harmony Relay RXG Series, designed for reliable switching in automation and electrical control systems. It operates with a 24V DC coil voltage and supports switching currents up to 10A, suitable for medium-duty applications in various sectors such as transportation, marine engineering, and oil and gas plants.
The relay measures a compact 13 mm length, 29 mm width, and 29 mm height, making it ideal for installations where space is limited. The contact configuration is single pole double throw (SPDT), using silver alloy material to ensure low contact resistance of 100mΩ, delivering consistent electrical performance and enhanced longevity.
Energy efficiency is key, with only 0.53W coil power consumption during operation. It can withstand a dielectric strength of 5kV AC, ensuring electrical safety and protecting the workplace environment. The relay supports a wide operating temperature range from -40°C to +70°C to meet the demands of harsh industrial settings.
Its IP40 rating means it is finger-safe and protected from objects larger than 1 mm, contributing to safe user handling. The robust design also supports mechanical endurance of up to 10 million operation cycles, delivering long-term reliability and maintenance-free operation.
The relay's plug-in terminal type enables easy integration into control panels and devices. Certified with CSA and CE standards, adhering to industrial quality and safety regulations. Its compact profile and high switching power capacity of 2.5 kVA suit diverse industrial automation challenges.
The coil resistance value of 1.1 kΩ is optimized for efficient coil energizing with 24V DC input. Manufactured in China under strict quality controls to ensure product consistency.
Suitable for applications in transportation industries, marine engineering projects, and oil and gas plants, this Schneider Electric Power Relay delivers reliable switching performance while optimizing energy consumption. Its versatile design allows assembly in any position, supporting flexible system layouts. For professionals requiring dependable relay performance in demanding environments, the RXG15BD is an excellent choice.
Explore more industrial automation products and Schneider Electric solutions on EnvMart to build efficient control systems tailored to your needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power relay supports a switching current of up to 10A, making it suitable for medium power applications.
This model operates with a coil voltage of 24V DC, which is essential for its electromagnetic operation.
The relay measures 13mm in length, 29mm in width, and 29mm in height, allowing for compact installations.
It features a single pole double throw (SPDT) contact configuration, suitable for various circuit switching tasks.
The relay can withstand a dielectric strength of up to 5kV AC, ensuring safety against electrical hazards.
This model can operate in temperatures ranging from -40°C to +70°C, making it suitable for harsh industrial environments.
The contact resistance is rated at 100mΩ, providing reliable and low resistance switching performance.
The relay consumes only 0.53W of power during operation, which contributes to its energy efficiency.
It is certified with CSA and CE standards, ensuring adherence to industrial quality and safety regulations.
The relay features a plug-in terminal type, allowing for easy integration into control panels and devices.
The contacts are made of silver alloy, which helps ensure low contact resistance and reliable switching.
The coil resistance is rated at 1.1 kΩ, optimized for efficient coil energizing with a 24V DC input.
