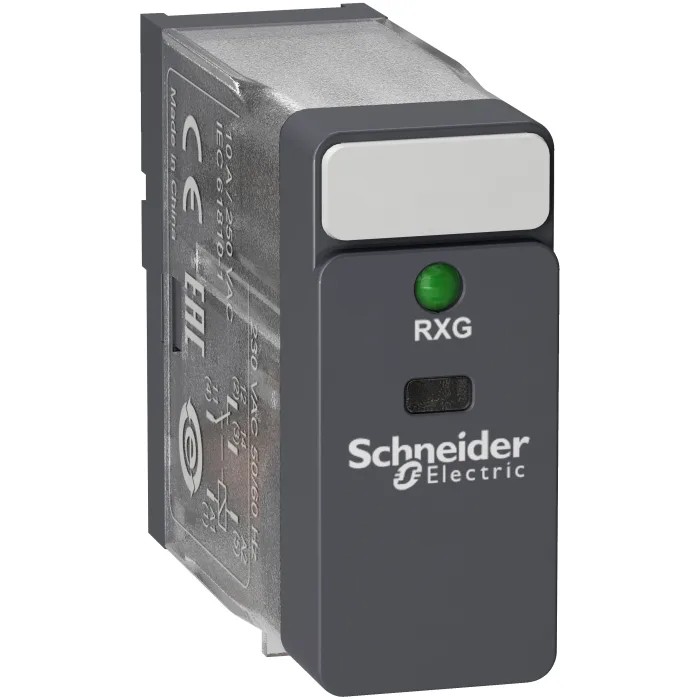

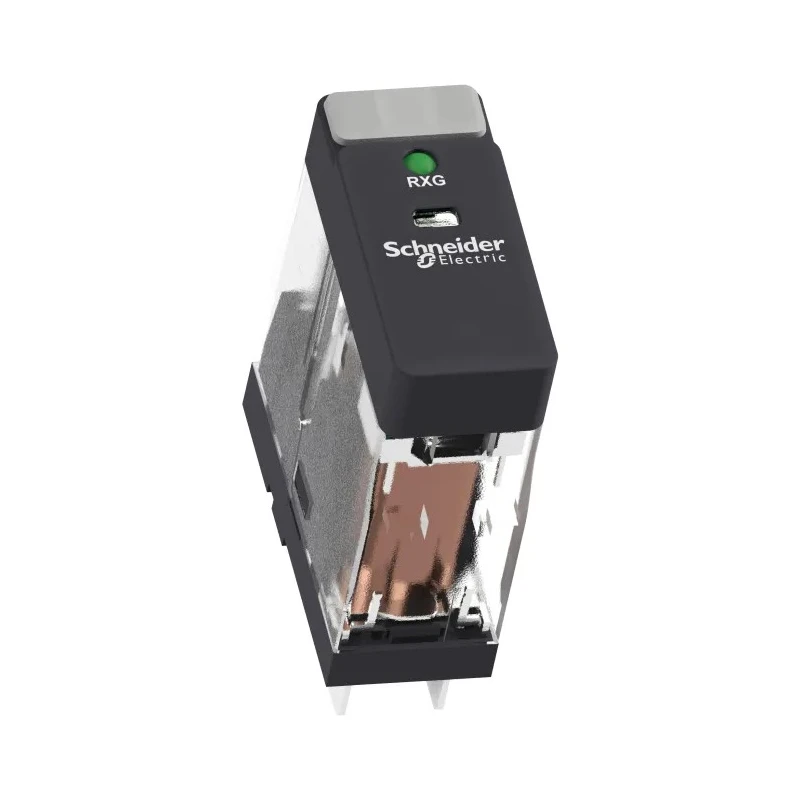

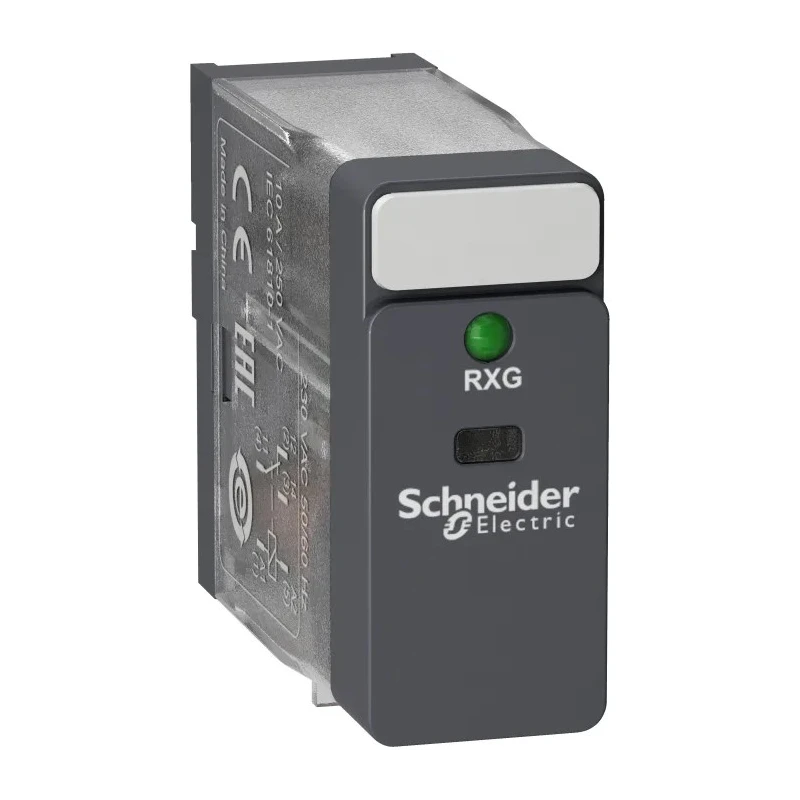

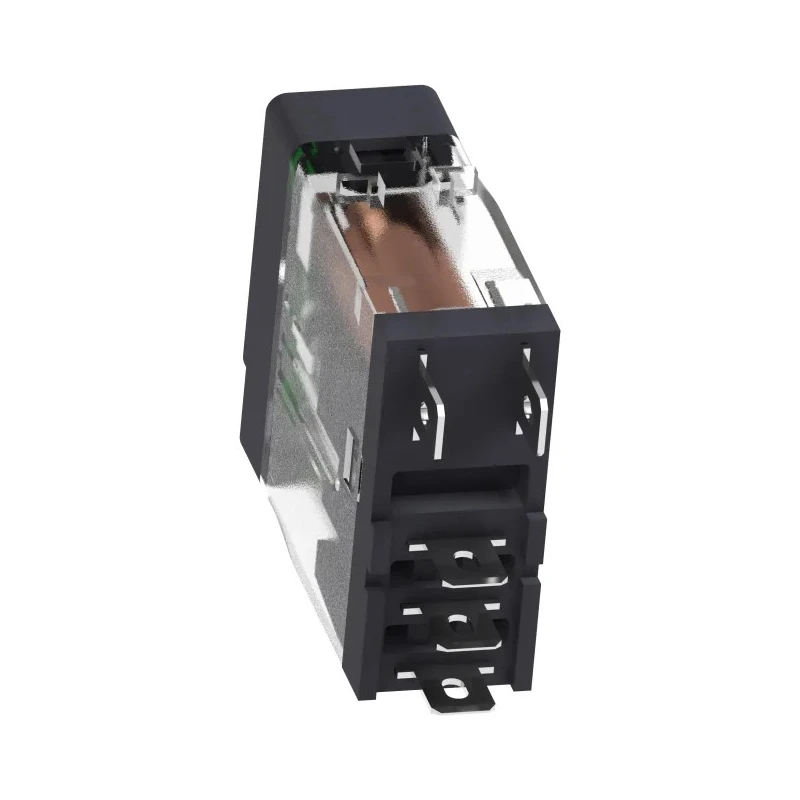

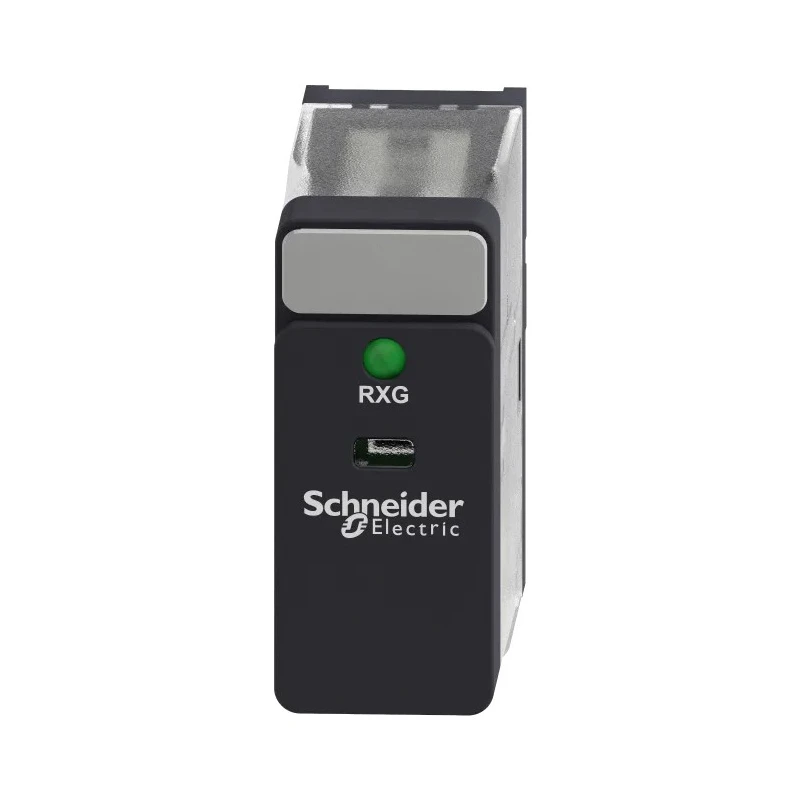

Schneider Electric Power Relay with 230V AC Coil, 10A Switching Current, SPDT Contact Configuration RXG13P7

Schneider Electric RXG13P7 is a robust and reliable power relay designed with a 230V AC coil and capable of switching currents up to 10A through its SPDT contact configuration. This model belongs to the Harmony Relay RXG series, known for its plug-in relay sockets that enable quick installation and improved machine reliability in industrial and automation settings.

The relay operates within a temperature range from a low of -40°C up to a high of 70°C, making it suitable for diverse industrial environments including manufacturing, automation control systems, and HVAC applications. Its compact form factor, with dimensions of 37.1 mm in height, 30.6 mm in width, and 13 mm in length, helps minimize enclosure space and facilitates flexible mounting options such as DIN rail or panel installation.

The contact system uses a silver alloy material, providing low contact resistance (100 mΩ) and enhanced durability for long operational life. The relay switches up to 2.5 kVA power and can handle AC voltages up to 250V and DC voltages up to 30V, thus accommodating various electrical control requirements.

Energy consumption is optimized with a coil power rating of 820 mW and coil resistance of 23.5 kΩ, ensuring efficient performance within automated logic control networks, including programmable logic controllers (PLCs). The device is designed to meet CE and CSA safety approvals, further affirming its suitability for industrial electrical applications.

The RXG13P7 includes a built-in LED indicator for real-time status signaling, enhancing maintenance and monitoring capabilities both day and night. Its plug-in socket with faston pin terminal offers reliable and secure electrical connections, supporting ease of wiring and installation changes.

This Power Relay is manufactured in China under Schneider Electric's quality standards, emphasizing reliability and efficiency in demanding environments.

Choose the RXG13P7 relay for dependable switching solutions in industrial automation, electrical control panels, and HVAC systems. Explore the broader Schneider Electric Harmony Relay RXG series for varied configurations and contact arrangements to suit your specific application needs.

Discover more high-quality industrial electrical components and relay devices in the Electronics & Electricals category at EnvMart - your source for trusted, efficient automation solutions.

Designed with a Harmony RXG series plug-in relay socket for easy mounting and enhanced reliability. Offers a switching power capacity of 2.5 kVA and switching AC voltage up to 250V. Supports a minimum operating temperature of -40°C and a maximum of 70°C for versatile application environments.

Equipped with silver alloy contact material and a low contact resistance of 100 mΩ for efficient signal conduction. Compact dimensions measuring 37.1 mm height, 30.6 mm width, and 13 mm length to reduce enclosure size. Coil power consumption is 820 mW with a coil resistance of 23.5 kΩ ensuring energy-efficient operation.

Complies with CE and CSA standards for safety and quality assurance. Includes LED indicator for clear status display day and night in automated control systems.
