Trumeter Digital Panel Multifunction Meter Voltage Current 68 mm x 68 mm APM-PROC-ANO

Free Delivery in India | Lowest Global Shipping Charges

Trumeter Digital Panel Multifunction Meter Voltage Current 68 mm x 68 mm APM-PROC-ANO

Name: Trumeter Digital Panel Multifunction Meter Voltage Current 68 mm x 68 mm APM-PROC-ANO
Brand: Trumeter
SKU: 381771
Price: 217.39 USD
Availability: InStock



Category Digital Panel Multifunction Meter Brand Trumeter Condition New

Specifications

Country of Origin	Malaysia
Display Type	LCD
Brand	Trumeter
Model	APM-PROC-ANO
Depth	53mm
Series	APM
Maximum Operating Temperature	60°C
Meter Type	Electronic
Number Of Digits	4
Minimum Operating Temperature	-10°C
Digit height	12mm
Standards/Approvals	CE, UL
Properties Measured	Voltage, Current
Cutout Height	68mm
Cutout Width	68mm
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007

Key Features

Measures voltage and current with 0.1% accuracy.
Features a 4-digit LCD with 40-segment bar graph display.
Dynamic colour-changing backlight for status indication.
User-configurable scaling, alarms, and messaging.
Two independent outputs configurable as digital or analogue 4-20 mA.
Supports remote monitoring via Trumeter Cloud and IoT Gateway.
IP65 rated enclosure suitable for harsh environments.
Wide operating temperature range from -10°C to 60°C.

Product Description

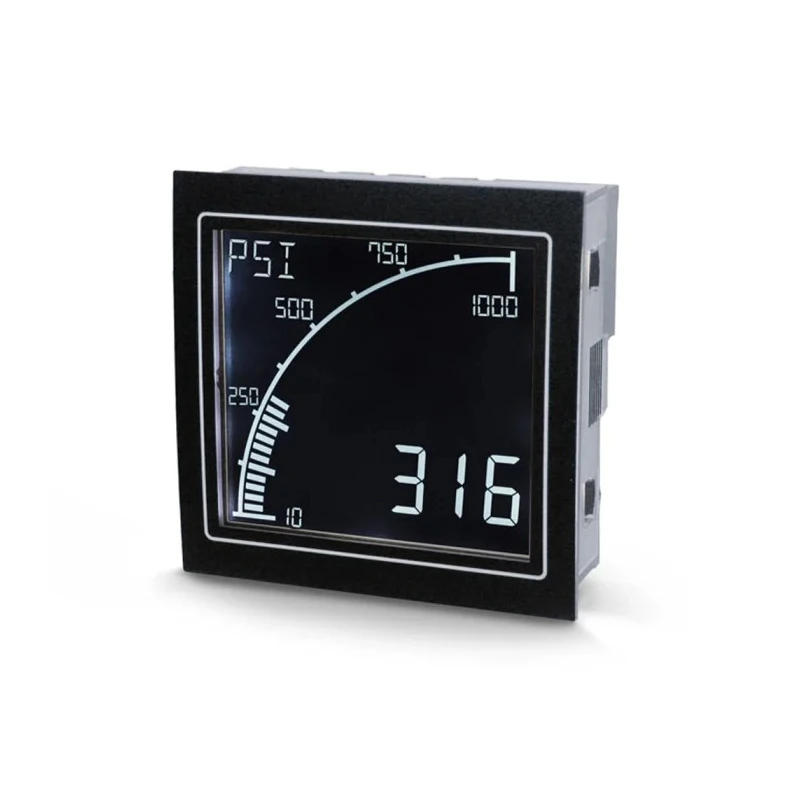

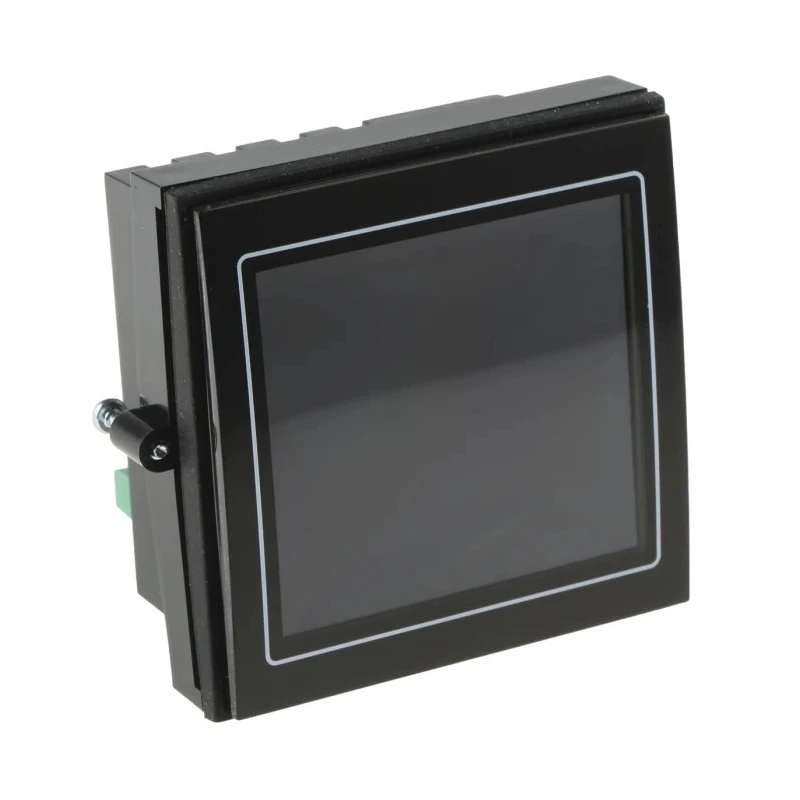

Trumeter APM-PROC-ANO digital panel multifunction meter is designed for process control tasks such as monitoring voltage, current, and interfacing with variable speed drives, flow and pressure transducers, and sensors. The meter features a 68 mm x 68 mm cutout size suitable for panel mounting.

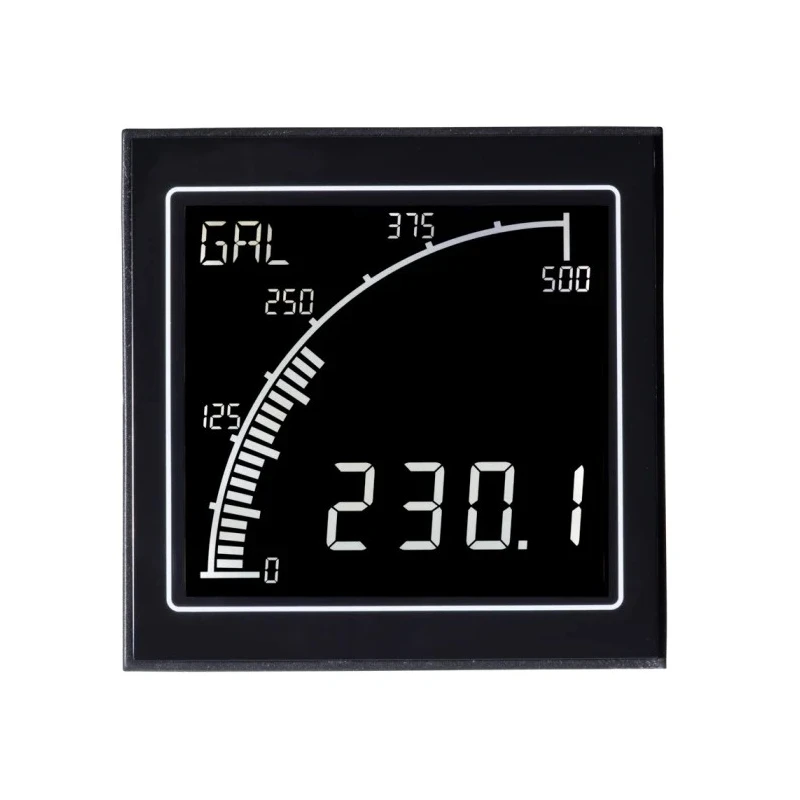

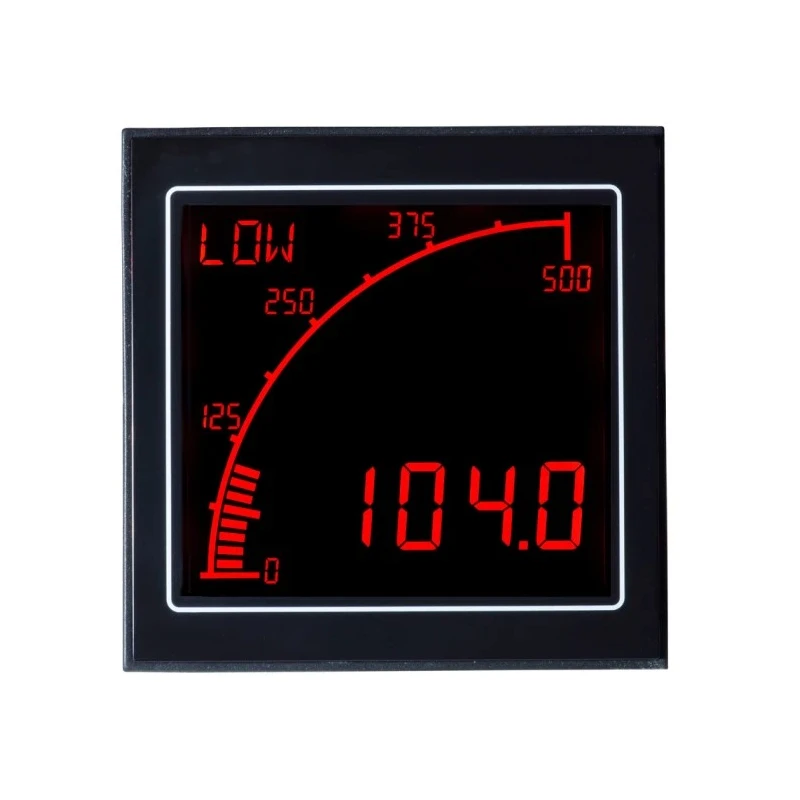

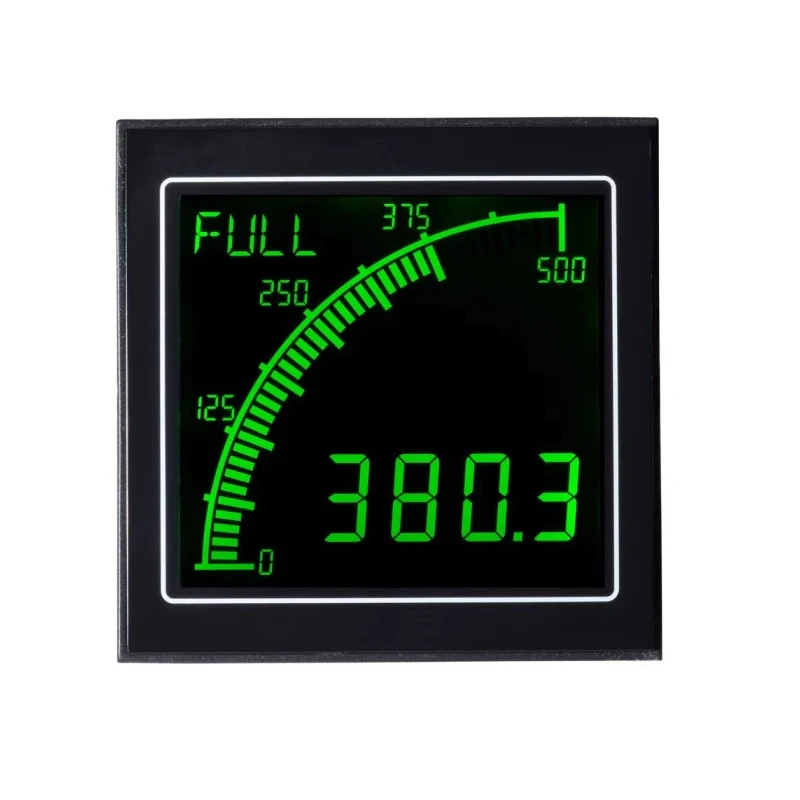

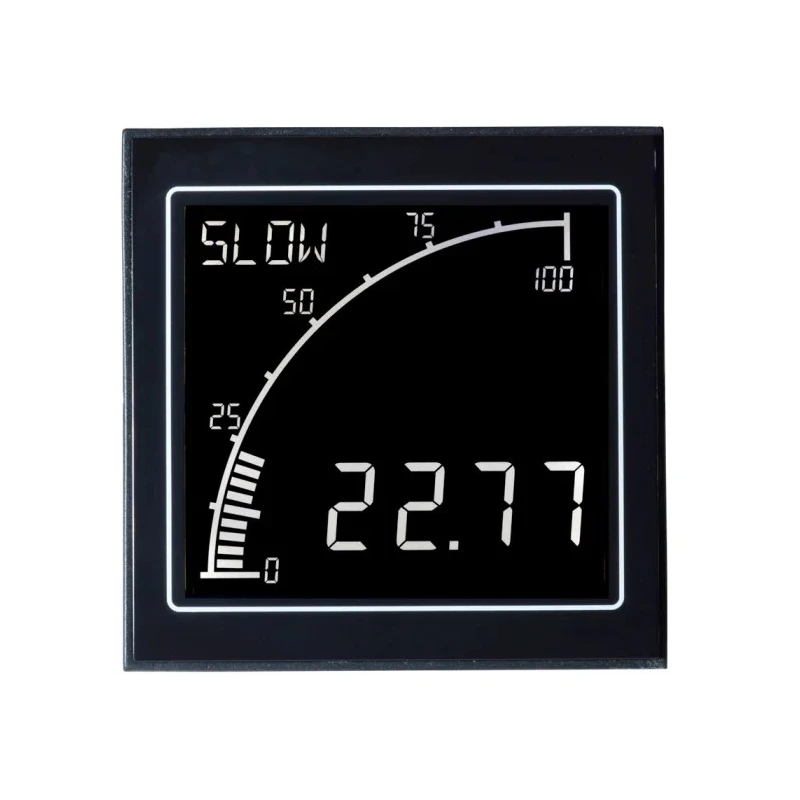

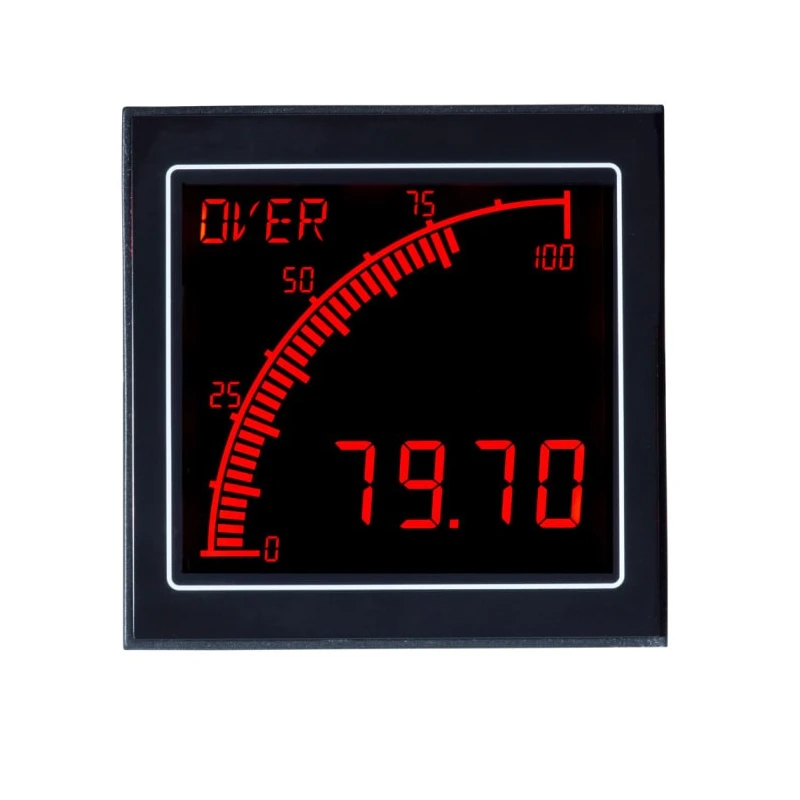

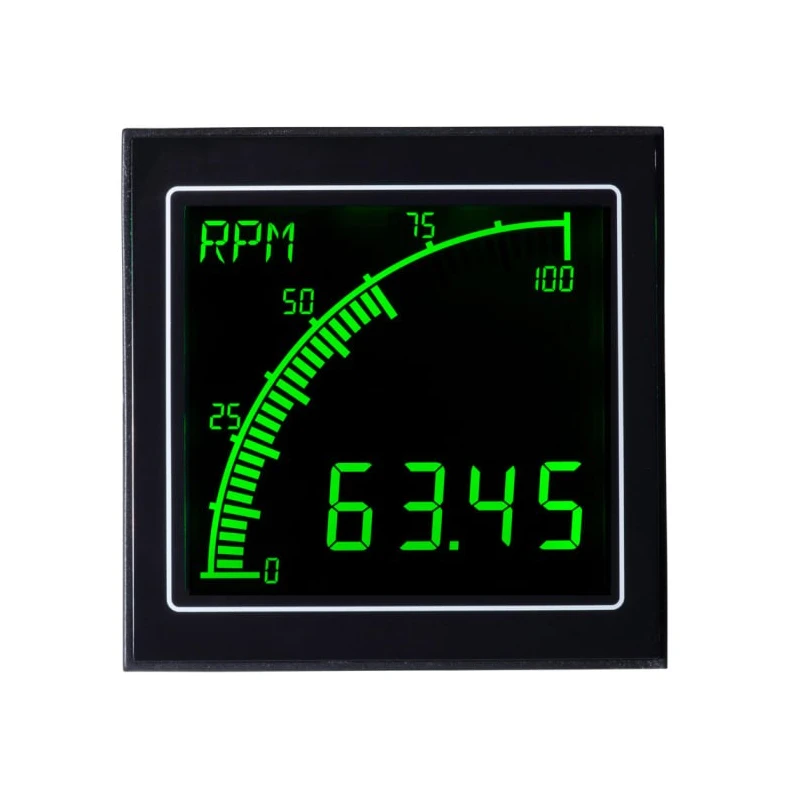

The device offers a 0-10V DC or 0-50mA input range with 0.1% accuracy, ensuring precise readings in industrial environments. Its LCD display combines digital precision with analogue readability, including a 40-segment bar graph and a dynamic colour-changing backlight that visually indicates operating conditions.

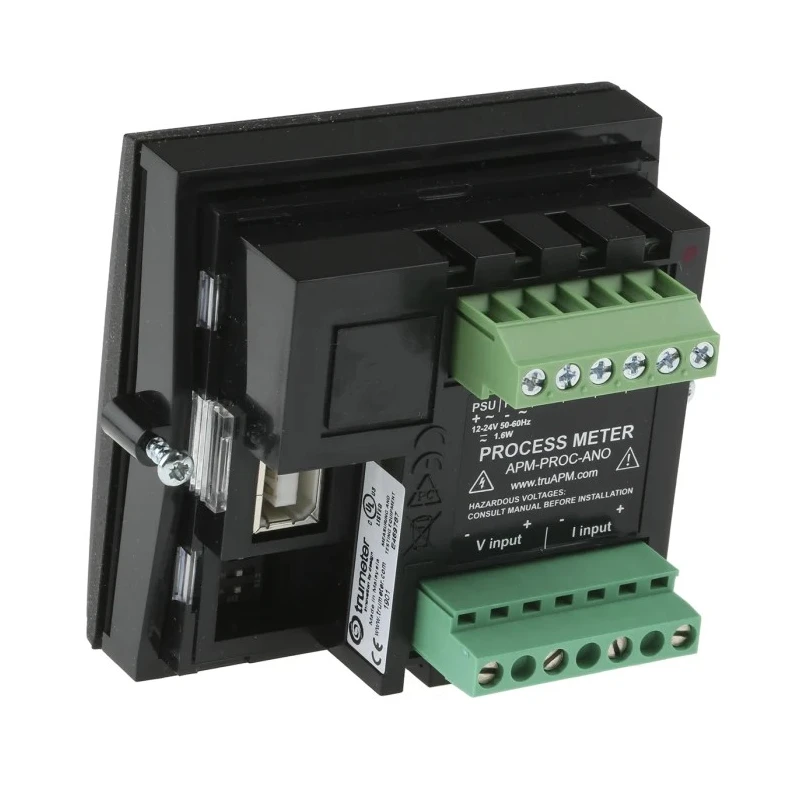

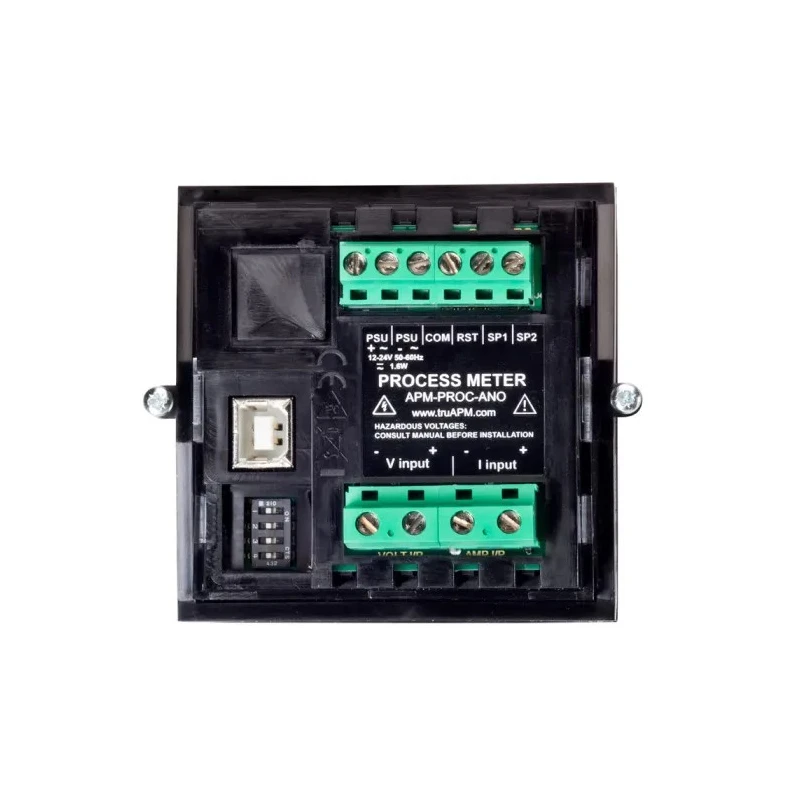

Users can fully customize scaling, range, alarms, messaging, and colour settings through the free APM configuration software. The meter includes two outputs that can be independently set as digital open collector or analogue 4-20 mA signals, expanding its integration capabilities.

For enhanced monitoring, the meter integrates seamlessly with the Trumeter IoT Gateway, enabling cloud-based remote data access, alarm notifications via online platforms, SMS, and email. It features a negative display mode for environments requiring high contrast and superior visibility.

Operating over a temperature range of -10°C to 60°C, the meter maintains reliable performance, while its IP65 rating protects against dust and water ingress. It meets international safety and quality standards including CE, UL, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007.

Measures voltage and current with 0.1% accuracy. 4-digit LCD with 40-segment bar graph display. Dynamic colour-changing backlight for status indication. User-configurable scaling and alarm settings. Two independent outputs: digital or analogue 4-20 mA.

Compatible with Trumeter Cloud remote monitoring. IP65 rated and wide temperature operation. 10 programmable alarm setpoints and output delays. Complies with CE, UL, ANSI/ESD S20.20, BS EN 61340-5-1 standards.

This advanced panel meter is ideal for industrial automation, process control, manufacturing, and electrical engineering applications requiring precise monitoring and control. Explore more products in Digital Panel Multifunction Meters and Industrial Automation Systems at EnvMart.
