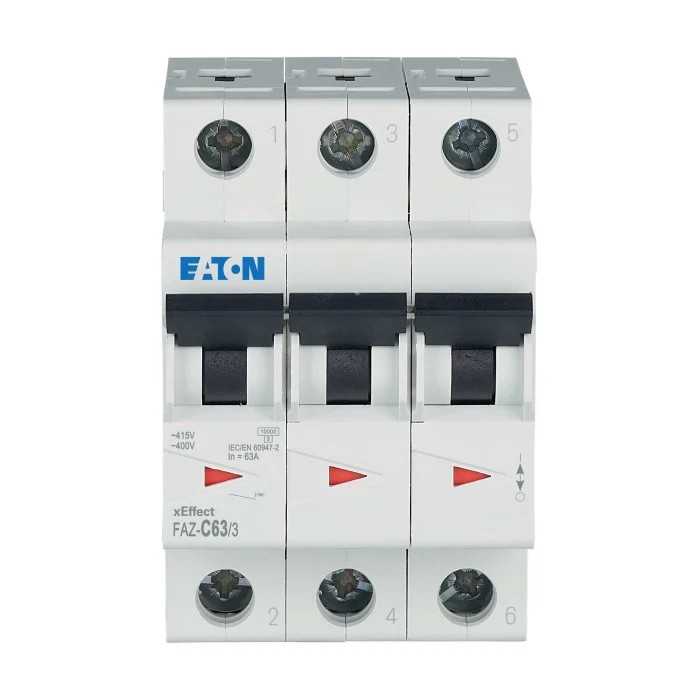

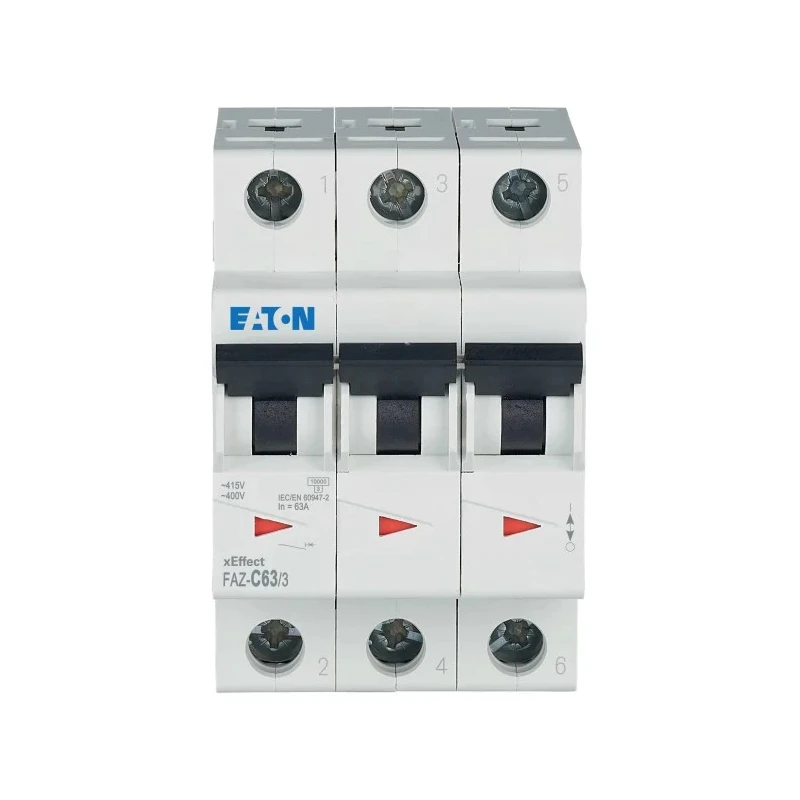

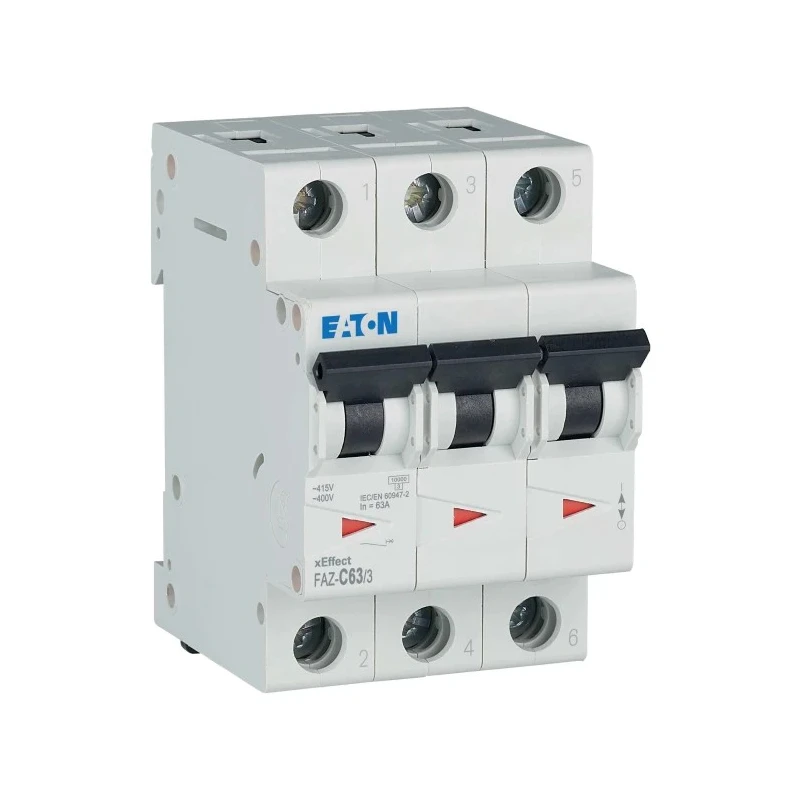

Eaton xEffect Miniature Circuit Breaker, 3-Pole, 63A, Type C, 415V AC, 10 kA Breaking Capacity 278879 FAZ-C63/3

Eaton 278879 FAZ-C63/3 Miniature Circuit Breaker is a high-quality 3-pole device designed for effective electrical circuit protection in industrial, commercial, and residential applications. It supports a rated current of 63 amps and operates on 415 volts AC, making it suitable for diverse electrical systems requiring robust fault protection.

This MCB features a Type C tripping characteristic, ideal for protecting circuits with inductive loads such as motors, lighting, and transformers. The thermal magnetic tripping mechanism ensures fast response to overcurrent and short circuits, preventing equipment damage and enhancing operator safety.

Mountable on standard DIN rails, the breaker offers ease of installation with twin-purpose terminals supporting both solid and stranded wiring. Its compact 85mm width and 73mm depth optimize panel space utilization. The device includes a toggle switch reset actuator and a trip-free mechanism to prevent inadvertent resetting without fault clearance.

With a 10 kA breaking capacity, the circuit breaker ensures circuit interruptions under high fault currents, enhancing system reliability. The IP20 rating provides protection against solid foreign objects larger than 12.5mm, suitable for typical electrical enclosures.

Additional safety is provided by red and green contact position indicators for clear operational status at a glance. This Eaton MCB is part of the xEffect series, known for quality and adherence to electrical standards for industrial and commercial electrical installations.

Designed for DIN rail mounting with thermal magnetic tripping mechanism. Rated for 415V AC operation with a breaking capacity of 10 kA for enhanced safety. Features a toggle switch reset actuator and twin-purpose terminals for secure wiring.

IP20 rated for protection against solid objects larger than 12.5 mm. Instantaneous break time with red and green contact position indicators for easy monitoring. Compact design with 85mm width and 73mm depth for efficient panel space usage.

Trip-free mechanism prevents forced reset before clearing the fault.

This product is suitable for use in electrical, industrial control systems, manufacturing facilities, and commercial building electrical panels where reliable circuit protection is critical. Explore our collection of high-quality circuit protection devices to meet your electrical safety needs with Eaton and EnvMart trusted solutions.
