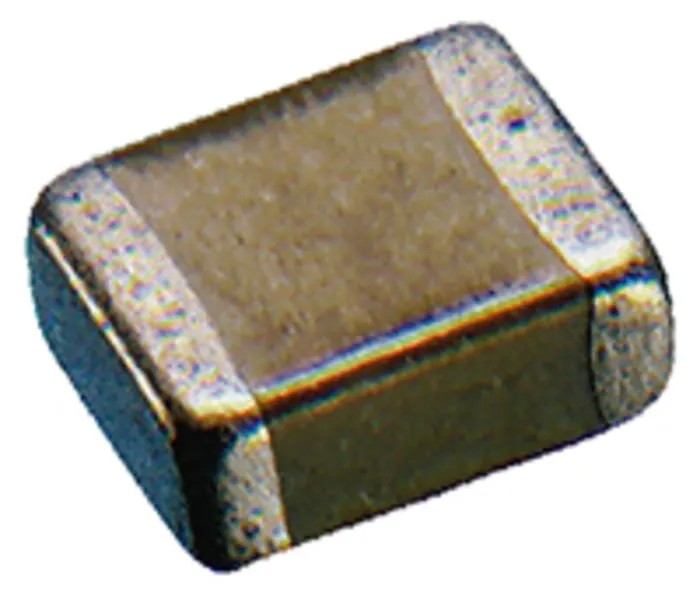

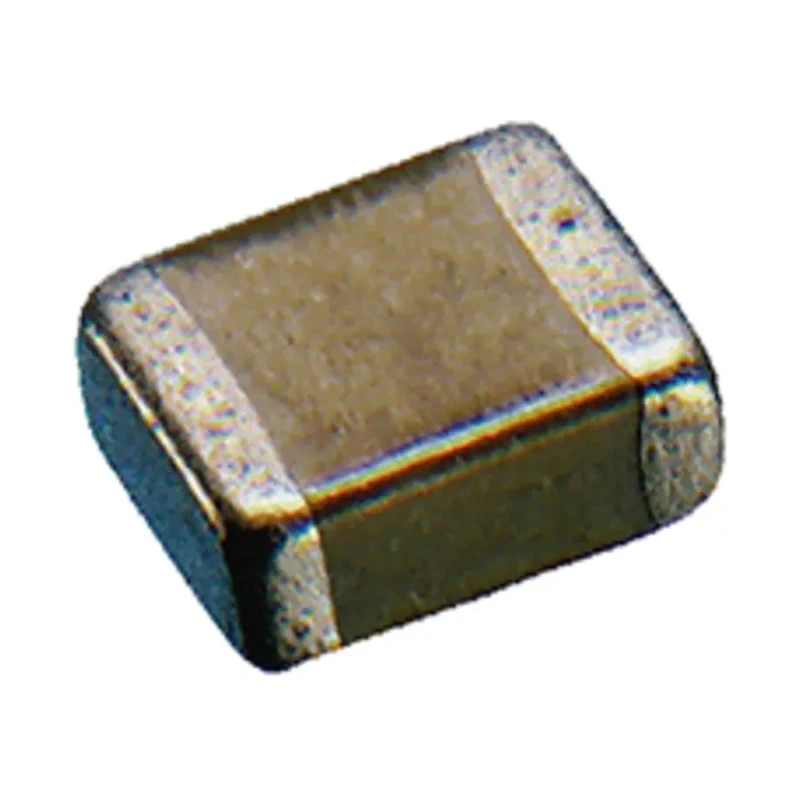

Murata 22 pF 1kV dc ±5 % Multilayer Ceramic Capacitor, Surface Mount, 1206 Package GRM31A5C3A220JW01D

The Murata GRM31A5C3A220JW01D is a high reliability 22 pF multilayer ceramic capacitor designed for surface mounting applications. This 1206 case size capacitor offers a 1 kV DC rating and ±5 % tolerance, suitable for precision electronic components requiring stable capacitance under varying environmental conditions.

Featuring C0G (NP0) dielectric material, the capacitor provides excellent temperature stability with a wide operating range from -55°C to 125°C. This makes it ideal for use in tuning circuits, oscillators, and high frequency filter circuits, as well as power supply damper snubbers for applications above 200 V rated voltage.

The construction uses nickel barrier terminations coated with a layer of tin to facilitate excellent soldering quality and durability during manufacturing processes. The stacked multilayer architecture enables high capacitance values in a small form factor, enhancing design flexibility.

Packaged on a 180 mm diameter paper tape, these capacitors are optimized for automated pick-and-place assembly lines to improve production efficiency. This capacitor has a ±5 % capacitance tolerance for precise performance.

It is provided in a 1206 surface mount package size suitable for compact electronic designs. The capacitor features a C0G dielectric type which offers high stability and low losses. Operates reliably from -55°C to 125°C temperature range.

Ni barrier terminations with tin layer ensure excellent solderability. RoHS compliant construction enhances environmental safety. Ideal for tuning circuits, oscillators, high frequency filters, and power supply snubbers.

180 mm diameter paper tape packaging facilitates automated assembly.

This product is widely used in industrial electronics, telecommunications, automotive electronics, and laboratory equipments requiring stable multilayer ceramic capacitors. Murata's trusted quality and compliance with RoHS standards make this capacitor a reliable choice for high-performance electronic circuit designs.
