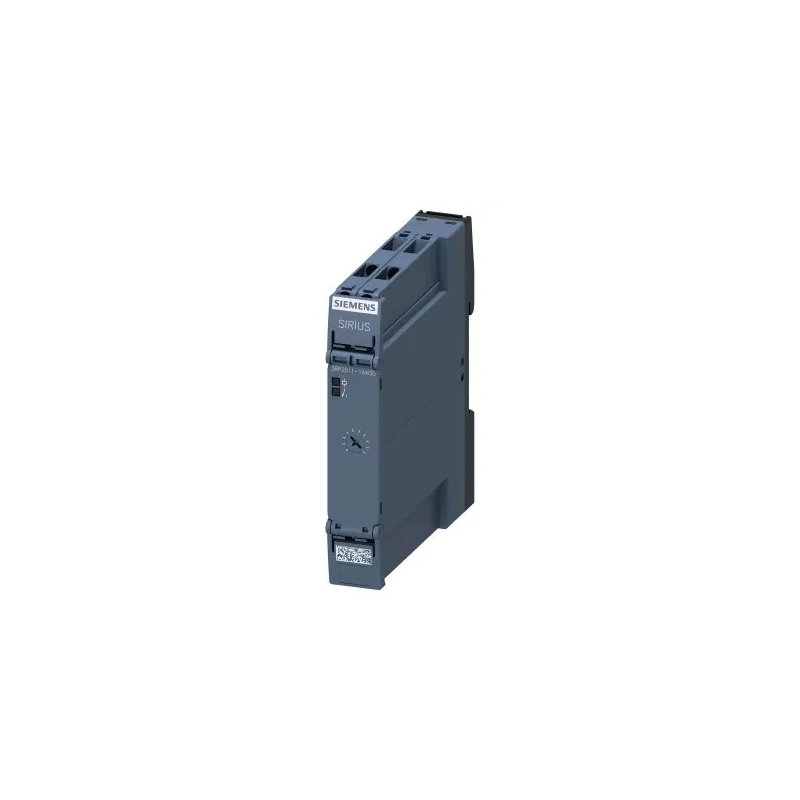

Siemens 3RP25 Series DIN Rail Timer Relay, 1-Contact, 250 V DC/12 V AC/240 V AC, 0.5 to 10 s Time Range 3RP2511-1AW30

Siemens 3RP2511-1AW30 DIN Rail Timer Relay is a high-quality automation component engineered to provide precise delay timing control within industrial and commercial electrical applications. Operating with supply voltages ranging from 12 V AC to 240 V AC and up to 250 V DC, this timer relay ensures flexible integration within diverse electrical systems. Its single SPDT (Single Pole Double Throw) contact configuration supports ON delay function, making it ideal for timed control of machinery, lighting, and signal systems.

Compact in size with dimensions of 17.5 mm width, 90 mm length, and 100 mm height, it is specifically designed for efficient DIN rail mounting, optimizing panel space utilization. The device accommodates a maximum contact current of 3A, providing reliable switching capacity for control circuits. Its screw terminal connections ensure secure and stable wiring with conductor cross-section compatibility ranging from 0.5 to 4 mm².

The timer relay features an adjustable time range from 0.5 to 10 seconds, with high relative setting accuracy of 5%, offering precise control over delay intervals. It boasts a rapid recovery time of only 250 ms, enabling fast responsiveness in automation cycles. The device operates reliably across an ambient temperature range of -25°C to 60°C, making it suitable for varied industrial conditions.

Construction robustness is evidenced by its mechanical service life rated for 10 million operating cycles and compliance with key international standards including IEC, UL, and CSA. IP20 protection rating safeguards the relay against solid ingress and unauthorized access, ensuring longevity and safety in operation.

This Siemens timer relay finds applications in automated machinery control, HVAC system regulation for delayed activation sequences, industrial equipment operation efficiency, and timed control of lighting and signaling devices. The product is manufactured in Germany, reflecting high engineering and quality standards.

Set includes one Siemens 3RP25 Series Timer Relay model 3RP2511-1AW30 designed for DIN rail installation, delivering dependable timing functions critical for industrial automation, manufacturing processes, and electrical control systems.

Operates within 12 V AC to 240 V AC and up to 250 V DC supply voltage. Single SPDT contact supports ON delay function with adjustable timing. Compact DIN rail design with robust screw terminal connections. Wide temperature range and high mechanical endurance.

International standards certified ensuring safety and reliability. Explore EnvMart's extensive range of Siemens industrial automation components for robust solutions tailored to diverse electrical control requirements.
