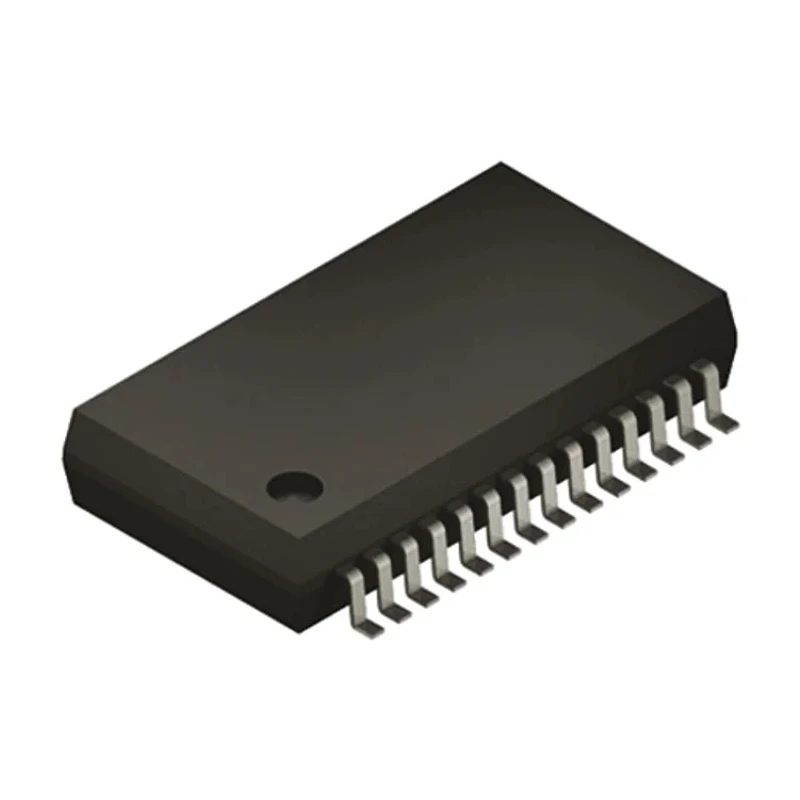

Microchip 16 bit PIC PIC24FJ128GB202-I/SS Microcontroller 32 MHz 128kB FLASH 28-Pin SSOP PIC24FJ128GB202-I/SS

Microchip PIC24FJ128GB202-I/SS is a 16 bit PIC microcontroller based on the PIC24FJ core architecture, offering a maximum CPU speed of 32 MHz and a high-performance 128kB FLASH program memory. This model is housed in a 28-pin SSOP surface mount package, suitable for compact PCB layouts found in embedded systems.

The device operates on a voltage range of 2V minimum up to 3.6V maximum, with an operating temperature from -40°C to 85°C enabling use in a broad range of industrial and commercial environments. It features 34 programmable I/O pins, 8kB RAM, and supports up to 12MB expanded memory, making it suitable for sophisticated embedded applications.

Architected with Harvard instruction set, the microcontroller includes one 16-bit timer and nine 10/12 bit ADC channels, three analogue comparators, and a range of peripherals such as a cryptographic engine for enhanced security, USB Module compliant with USB On-the-Go standards, and multiple communication interfaces including three SPI modules, two I2C modules, and four UART modules with two supporting Smart Card ISO 7816 interface.

Advanced power management is achieved with Extreme Low-Power technology, incorporating power-on reset, brown-out reset, watchdog timers, and voltage detection modules for stable and reliable performance. The device supports in-circuit serial programming (ICSP) and emulation (ICE), facilitating development and debugging.

This microcontroller is ideal for demanding applications in industrial automation, security systems, consumer electronics, and more, benefiting from the robust feature set and energy efficiency.

Features a 28-pin SSOP surface mount package with 34 programmable I/Os. Operates with a minimum supply voltage of 2V and maximum of 3.6V, supporting an operating temperature range from -40°C to 85°C. Incorporates 8kB RAM and supports up to 12MB expanded memory size.

Built on Harvard architecture with one 16-bit timer and three analogue comparators. Includes advanced peripherals such as cryptographic engine, USB On-the-Go, and multiple communication modules including SPI, I2C, and UART.

Designed with extreme low-power technology and multiple watchdog timers for reliability. Complies with RoHS standards for environmental safety.

This product is part of the Microchip PIC24FJxxxGB202/204 family, known for secure and efficient 16-bit microcontroller solutions. It is widely used in industrial, automotive, consumer, and commercial embedded systems.
