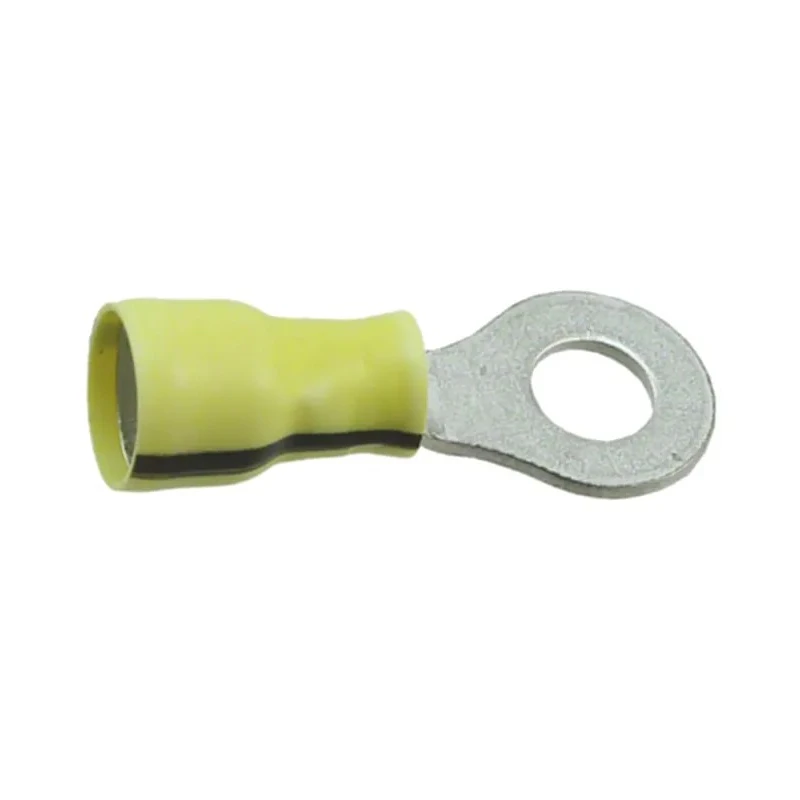

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 16 AWG 14 AWG Wire Size Yellow 35362

TE Connectivity 35362 PIDG insulated ring terminal is engineered for reliable wire-to-stud electrical connections in industrial and electronic applications. It supports M6 stud sizes and accommodates wire gauges sized 16 AWG through 14 AWG, providing versatile use in various power and connector systems.

The terminal features a copper contact material with tin plating for superior corrosion resistance and conductivity, critical for long-term performance under demanding electrical loads. A polyvinyl chloride (PVC) outer insulation sleeve in yellow color provides enhanced durability and electrical isolation, protecting the connection from short circuits and environmental factors.

Measuring 35.18 mm in overall length, the heavy-duty ring tongue terminal allows robust mechanical strength during crimping and installation. The precise metal wire barrel with serrations ensures maximum contact and tensile strength after crimping, reinforced by a copper sleeve encased in the insulating cover.

This product is rated for continuous operation up to 105°C, making it suitable for industrial, manufacturing, electronic assembly, and maintenance use cases where electrical reliability and safety are crucial.

Its design meets practical wire terminal requirements, supporting wire sizes from 16 AWG (1 mm²) to 14 AWG (2.6 mm²), ideal for both power distribution and signal wiring in commercial electrical systems.

Made with copper contact material for reliable conductivity. Tin-plated contacts provide excellent corrosion resistance. Polyvinyl chloride insulation sleeve offers durable electrical isolation. Outer ring diameter measures 13.49 mm ensuring proper fitment.

Designed for maximum operating temperature up to 105°C. Heavy duty ring tongue design for strong mechanical and electrical connection. Overall length of 35.18 mm accommodates easy crimping and installation. Compatible with wire sizes ranging from 16 AWG to 14 AWG (1 to 2.6 mm²).
