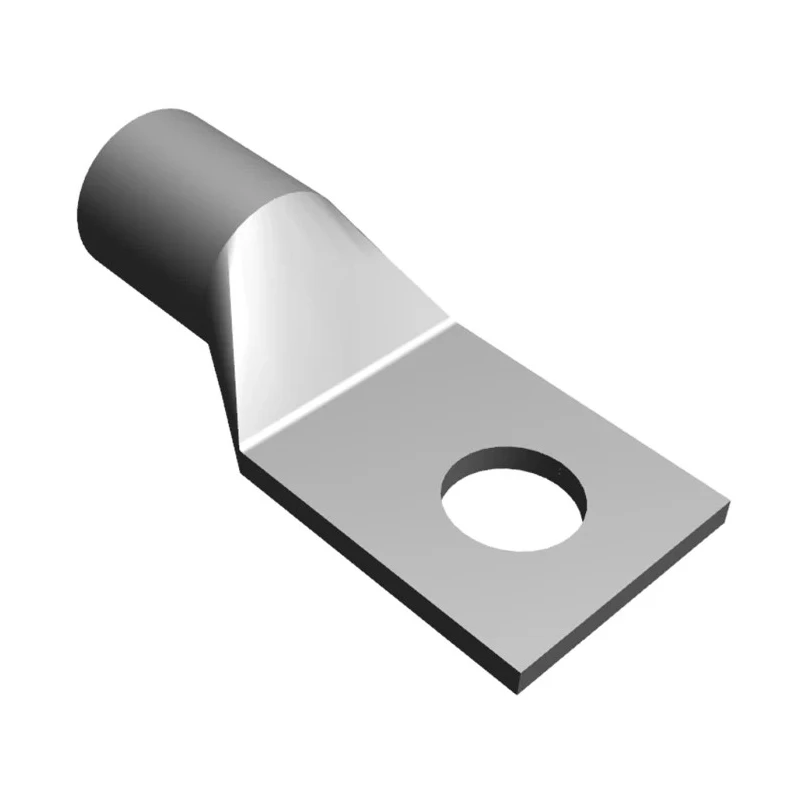

TE Connectivity AMPOWER Uninsulated Ring Terminal 9.53 mm Stud Size 1 AWG Wire Size 325303
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 2.54mm |
| Model | 325303 |
| Insulation | Uninsulated |
| Overall Length | 50.04mm |
| Contact Material | Copper |
| Series | AMPOWER |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 50mm² |
| Maximum Wire Size mm² | 60mm² |
| Minimum Wire Size AWG | 1AWG |
| Outer Ring Diameter | 22.1mm |
| Inner Ring Diameter | 9.91mm |
| Stud Size | 9.53 mm |
Key Features
- Constructed from seamless tubular annealed copper ensuring high conductivity.
- Features tin plating that provides corrosion resistance and durability.
- Uninsulated design suitable for power generation and distribution systems.
- Includes a conical entry for easy wire insertion and a sight hole for inspection.
- Dimensioned with an outer ring diameter of 22.1 mm and inner ring diameter of 9.91 mm.
- Overall length of 50.04 mm with a thickness of 2.54 mm.
- Rated for operating temperatures from -55°C to 105°C, supporting harsh industrial environments.
- Specifically designed to accommodate wire sizes ranging 1 AWG (50 mm²) to 1 AWG (60 mm²).
Product Description
TE Connectivity 325303 AMPOWER Uninsulated Ring Terminal is engineered for effective and durable electrical terminations in industrial power generation and distribution settings. Crafted from seamless tubular annealed copper in accordance with ASTM B-75, the terminal is coated with a tin plating aligned to MIL-T-10727 standards that enhances resistance to corrosion. The uninsulated tubular design facilitates easy and reliable crimp connections for 1 AWG wires with a stud size of 9.53 mm.
The ring terminal features a conical entry for effortless wire insertion, supplemented by an inspection window or sight hole which allows for verification of proper wire placement prior to installation. The terminal tongue is explicitly marked with metric wire and stud size identifiers to minimize installation errors and enhance operational clarity.
With an outer ring diameter of 22.1 mm and an inner ring diameter of 9.91 mm, this terminal assures compatibility with standard busbars and mounting configurations. Its overall length is 50.04 mm, paired with a thickness of 2.54 mm, providing mechanical robustness. The ring terminal supports operating temperatures ranging from -55°C to a maximum of 105°C, enabling deployment in environments with varying thermal conditions.
The AMPOWER series' uninsulated ring terminals are ideal for demanding electrical applications including industrial power distribution panels, commercial switchgear assemblies, and renewable energy electrical connections. Their reliable construction promotes long-life electrical performance and secure mechanical connections.
Constructed from seamless tubular annealed copper for optimal conductivity and strength. Tin plating enhances corrosion resistance and electrical contact reliability. Uninsulated design allows for versatility in high-current industrial applications.
Precision dimensions ensure compatibility with standard stud sizes and wire gauges. Conical entry and inspection window improve wiring accuracy and ease of installation. Operates safely within -55°C to 105°C, supporting harsh environmental conditions.
TE Connectivity's AMPOWER 325303 Ring Terminal conforms to high industrial standards, making it an essential component in electronic components, power connectors, and wiring harness assemblies.
Explore the extensive range of reliable electrical connectors at EnvMart to support your manufacturing and maintenance projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
This uninsulated ring terminal is designed to accommodate wire sizes ranging from 1 AWG (50 mm²) to 1 AWG (60 mm²).
The outer ring diameter is 22.1 mm, while the inner ring diameter measures 9.91 mm.
It is constructed from seamless tubular annealed copper, which ensures high conductivity.
No, this terminal is uninsulated, making it suitable for various high-current industrial applications.
The overall length is 50.04 mm, and the thickness is 2.54 mm.
The terminal features tin plating, which enhances its corrosion resistance.
The stud size for this model is 9.53 mm.
It operates safely within temperatures ranging from -55°C to 105°C, supporting harsh industrial environments.
This terminal is ideal for applications in industrial power distribution panels, commercial switchgear assemblies, and renewable energy electrical connections.
Yes, it includes a sight hole that allows for inspection of proper wire placement before installation.
The tin plating complies with MIL-T-10727 standards, ensuring enhanced electrical contact reliability.
