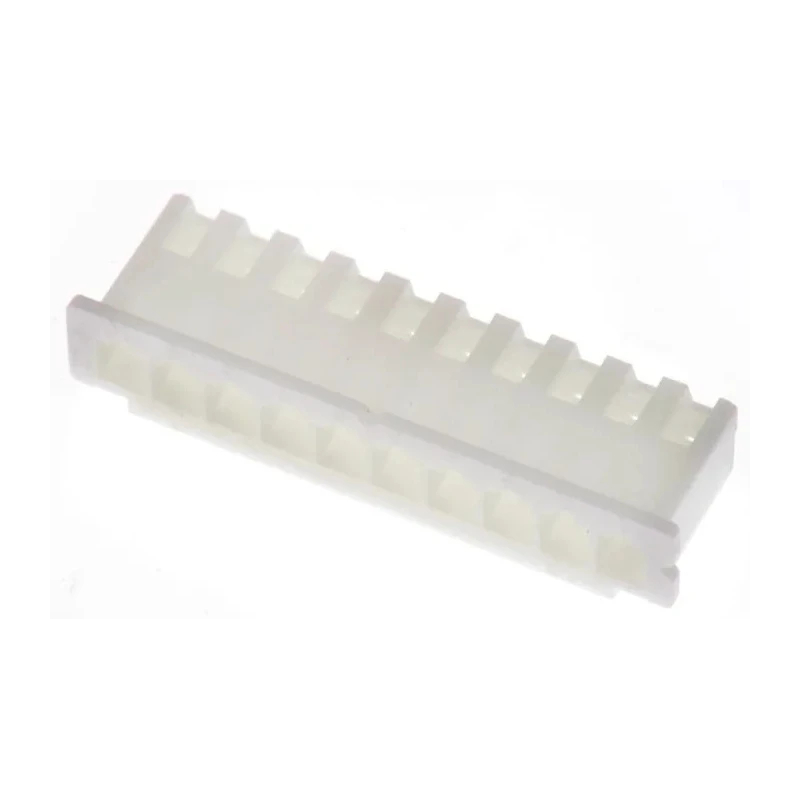

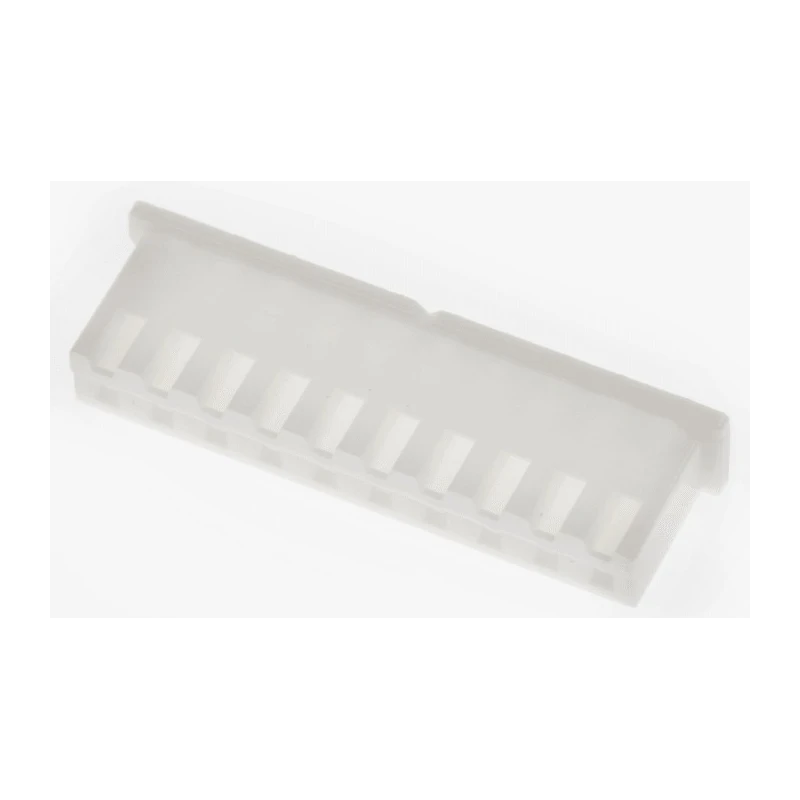

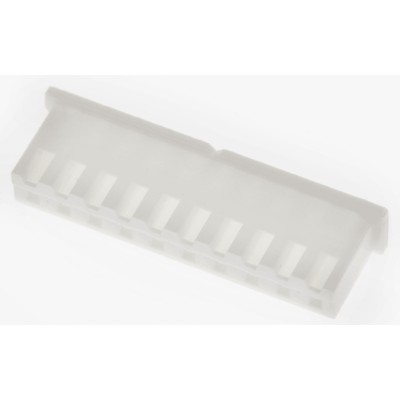

JST XHP Female Connector Housing 2.5 mm Pitch 10 Way 1 Row Straight XHP-10

JST XHP-10 Female Connector Housing is a 2.5 mm pitch, 10 way, single-row straight connector housing designed for high-density mounting applications in miniature electronic equipment. It ensures a compact footprint while maintaining reliability and ease of use in various electronic assemblies.

The housing is manufactured from durable polyamide material, natural white in color, offering excellent mechanical strength and a UL 94V-0 flammability rating for safety compliance.

Specifically engineered for use with XH Series dis-connectable crimp style connectors, this connector housing facilitates secure cable mountings with a straight orientation, enhancing assembly flexibility.

With precise dimensions, including a length of 27.3 mm, width of 5.7 mm, and mounting height of 9.8 mm, it supports space-saving designs without compromising on reliable contact performance, suitable for industrial, commercial, and electronic applications.

Its 10-way, single-row configuration meets the needs of compact electronic devices requiring dependable electrical connections. The design ensures consistent, high-quality contact for prolonged operational stability.

Features 2.5 mm pitch for precise connection spacing. Includes 10 contacts arranged in a single row for compact design. Constructed with polyamide housing material for durability. Designed for use with XH series dis-connectable crimp style connectors.

Straight orientation for cable mounting applications. Compact dimensions with a length of 27.3 mm and width of 5.7 mm. Natural white color housing with UL 94V-0 flammability rating. Highly reliable contact performance optimizing electronic equipment functionality.

Suitable for miniature electronic equipment requiring precise wire housing. Provides a mounting height of 9.8 mm for space-efficient installation.

This connector housing is widely used in electronics manufacturing, electric power distribution, industrial automation, and telecommunications sectors where space-efficient and reliable connector solutions are essential. Its compatibility with JST’s XH series ensures seamless integration into existing applications and design frameworks.
