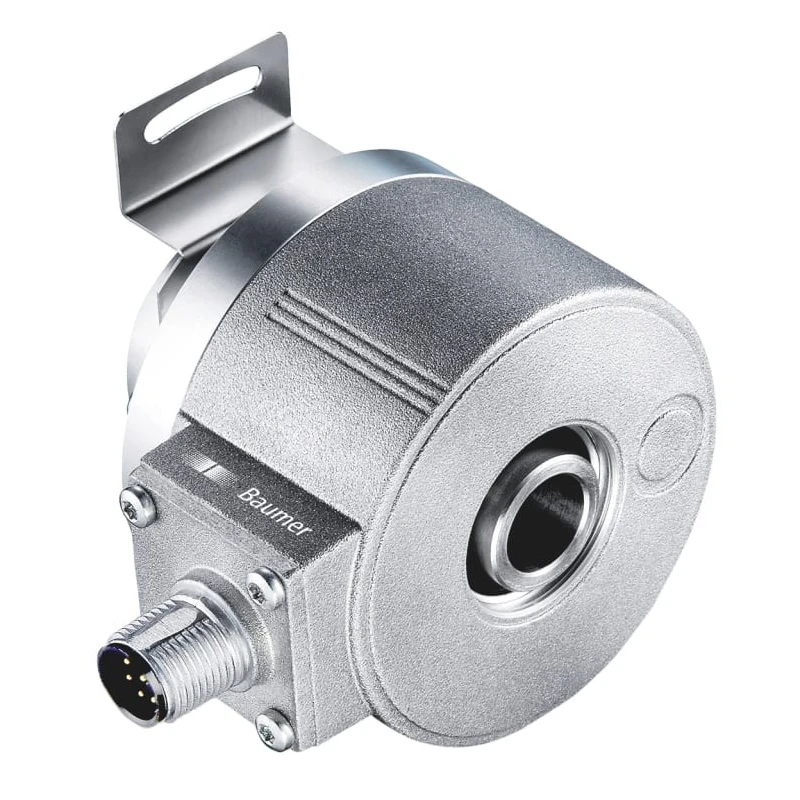

Baumer Optical Incremental Encoder 30V, 2048 ppr, Push Pull HTL Signal, Hollow Shaft 12 mm EIL580-TT12.5BN.02048.A

Baumer EIL580-TT12.5BN.02048.A Optical Incremental Encoder is a high-precision sensor designed for industrial motion control applications demanding accurate rotational position feedback. Featuring optical encoder technology, it generates 2048 pulses per revolution, enabling fine-grained positional resolution and supporting maximum rotational speeds up to 6000 rpm.

The encoder is equipped with a hollow shaft flange mount design featuring a 12 mm hollow shaft diameter that allows easy installation in a wide array of industrial machinery. Its output signals include Push Pull and HTL, compatible with a variety of control systems for seamless integration.

Its compact and robust construction includes a die-cast aluminium housing with a diameter of 58 mm, depth of 41 mm, and height of 70 mm ensuring durability and resistance to mechanical stress. The IP65 rating certifies protection against dust and water ingress, making it suitable for rigorous industrial environments.

The device functions reliably in extreme conditions across an operating temperature range from -40°C to 85°C and meets UL standards to ensure safety and quality compliance. The M12 flange connector provides a secure and stable electrical connection, vital for uninterrupted sensor performance during operations.

Supporting switching frequencies up to 300 kHz allows this encoder to be used in high-speed applications, suitable for manufacturing, automation, robotics, and other industrial fields requiring precise motion feedback.

Utilizes high-precision optical encoder technology for accurate position tracking. Features a hollow shaft of 12 mm diameter for flexible mounting options. Provides Push Pull and HTL output signals for versatile interface compatibility.

Compact size with 58 mm diameter and rugged die-cast aluminium housing. Operates within a wide temperature range from -40°C to 85°C with IP65 ingress protection. Equipped with an M12 flange connector for reliable electrical connection.

Switching frequency supports high-speed applications up to 300 kHz. Designed for flange mount with hollow shaft for precise mechanical integration. Manufactured in Germany ensuring high quality and durability.

This Baumer Incremental Encoder model is ideal for integration in industrial automation setups, laboratory equipment, manufacturing machinery, and HVAC systems requiring reliable rotary position feedback. Its robust design and technical specifications meet stringent industrial performance requirements.
