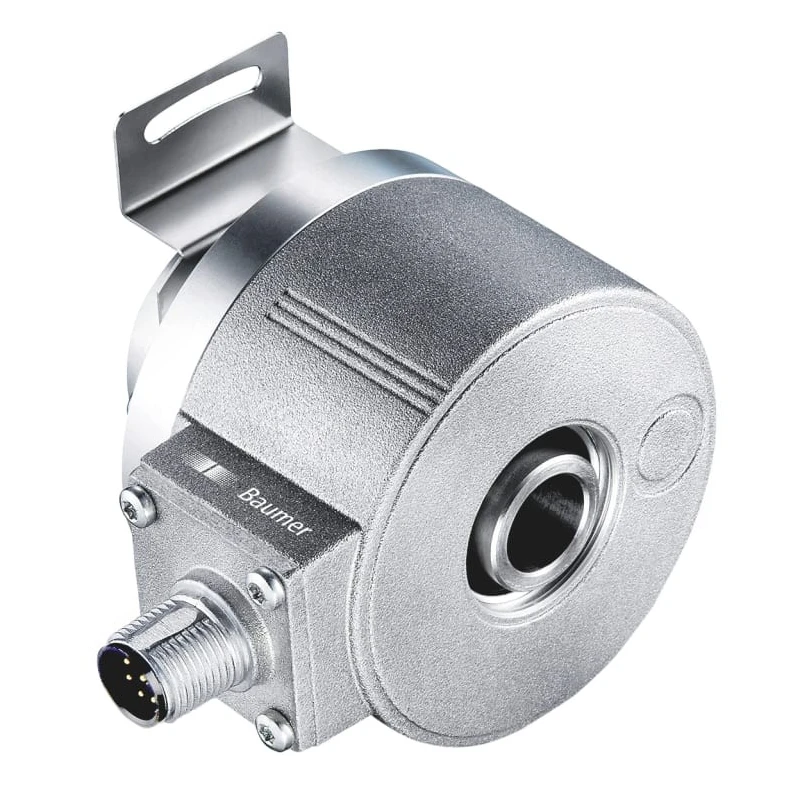

Baumer Optical Incremental Encoder 30V, 2048 ppr, Push Pull HTL Signal, Hollow Shaft 12 mm EIL580-TT12.5FN.02048.A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Baumer |
| Model | EIL580-TT12.5FN.02048.A |
| IP Rating | IP65 |
| Mount Type | Hollow Shaft Flange Mount |
| Series | EIL580 |
| Overall Width | 58mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 12mm |
| Overall height | 70mm |
| Switching Frequency | 300kHz |
| Shaft Type | Hollow |
| Terminal type | M23 Flange Connector |
| Interface Type | Push Pull |
| Pulses per Revolution | 2048ppr |
| Standards/Approvals | UL |
| Maximum Supply Voltage | 30V |
| Overall Depth | 41mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 6000rpm |
| Output Signal Type | Push Pull, HTL |
Key Features
- Operates at a maximum supply voltage of 30V with Push Pull and HTL output signals.
- Features a hollow shaft flange mount for easy installation.
- Designed for high durability with IP65 ingress protection and UL standards compliance.
- Capable of operating across a temperature range from -40°C to 85°C.
- Supports a maximum rotational speed of 6000 rpm and switching frequency up to 300 kHz.
- Constructed with die-cast aluminum housing ensuring resistance to shock and vibrations.
- Ideal for industrial motion control applications requiring precise optical sensing.
- Manufactured in Germany, ensuring high quality and reliability.
Product Description
Baumer EIL580-TT12.5FN.02048.A Optical Incremental Encoder is a precision sensor designed for accurate rotational measurement in industrial and automation systems. This encoder has an optical sensing technology, delivering 2048 pulses per revolution to provide high resolution feedback essential in motion control.
Powered by a maximum supply voltage of 30V, it outputs Push Pull and HTL signal types for enhanced signal integrity. The device features a hollow shaft construction with a 12 mm diameter, making it ideal for compact integrations where shaft mounting flexibility is crucial.
Its robust die-cast aluminum housing ensures resilience against mechanical stress, vibrations, and environmental factors as it complies with IP65 protection standards and UL certifications. The encoder can operate reliably from -40°C up to 85°C, making it suitable for harsh industrial environments.
The compact design includes dimensions of 58 mm width, 70 mm height, and 41 mm depth, coupled with a hollow shaft flange mount, facilitating diverse mounting options. It supports rotation speeds up to 6000 rpm and a switching frequency of 300 kHz for fast and accurate response.
This encoder is widely used in manufacturing automation, robotics, conveyor systems, and other industrial motion control sensors where precision and durability are mandatory. Operates at 30V supply voltage with Push Pull and HTL output signals.
12 mm hollow shaft flange mount design. Die-cast aluminum housing for shock and vibration resistance. IP65 rated for protection against dust and water ingress. Temperature range suitable for harsh environments (-40°C to 85°C).
High resolution with 2048 pulses per revolution. Maximum rotation speed of 6000 rpm and switching frequency of 300 kHz. Complies with UL standards for industrial safety and quality.
Manufactured in Germany, Baumer EIL580 series optical Incremental Encoders offer industry-leading quality and reliability. Explore more sensors and automation solutions on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this encoder is 30V.
This model provides a resolution of 2048 pulses per revolution.
It supports Push Pull and HTL output signal types.
The encoder can operate at a maximum rotational speed of 6000 rpm.
It can operate reliably within a temperature range from -40°C to 85°C.
The overall dimensions are 58 mm in width, 70 mm in height, and 41 mm in depth.
This encoder features a hollow shaft flange mount for installation.
It has an IP65 rating, providing protection against dust and water ingress.
The switching frequency is up to 300 kHz.
The encoder is constructed with die-cast aluminum housing for resilience against mechanical stress.
Yes, it complies with UL standards for industrial safety and quality.
This encoder is manufactured in Germany.
