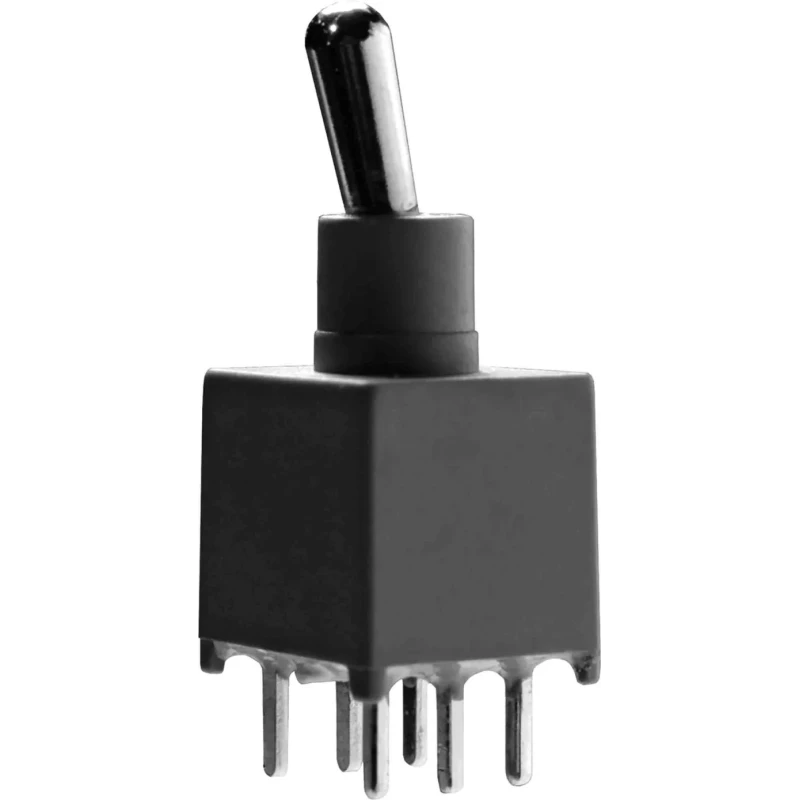

KNITTER-SWITCH Toggle Switch PCB Mount On-On DPDT 20 V AC/DC Gold Plated Copper TST 2 N

KNITTER-SWITCH TST 2 N Toggle Switch PCB Mount On-On DPDT is a high-quality subminiature switch intended for use in electronic and electrical devices requiring reliable on-off control.

This toggle switch features a double pole double throw (DPDT) contact configuration and On-On switch operation, allowing simultaneous control of two circuits. It is PCB mounted with through-hole terminal type ensuring secure and robust installation on printed circuit boards.

The actuator is crafted from gold plated copper, which significantly reduces contact resistance and ensures consistent performance over time. The switch supports an AC voltage of 20 V and DC voltage of 20 V, with a maximum contact current rating of 400mA, suitable for low power electronic applications.

The device is fully sealed and washable, rated at IP67 protection level, which reliably protects against dust ingress and water immersion, making it suitable for demanding environments including industrial and commercial electronics.

Physical dimensions are compact, measuring 8.13 mm in length, 9.14 mm in width, 21.19 mm in height, with an actuator length of 6.1 mm, enabling integration into space-constrained electronic assemblies.

The switch operates reliably under a wide temperature range from -30°C to 85°C and offers a mechanical life of 50,000 operations, ensuring extended durability in continuous use scenarios.

Subminiature PCB mount toggle switch with gold plated contacts for low resistance switching. DPDT contact configuration with On-On operation for dual circuit control. Rated for 20 V AC/DC and 400mA contact current for low power applications.

IP67 sealed construction allows for dust and water resistance. Through-hole terminal mounting ensures secure PCB connectivity. Compact form factor suitable for space-limited designs. Wide operating temperature range from -30°C to 85°C for various environments.

Mechanical life of 50,000 operations supports long-term use. RoHS compliant for environmental and safety standards adherence.

This toggle switch is ideal for use in industrial equipment, control panels, laboratory instruments, HVAC systems, manufacturing machinery, and consumer electronics where reliable switching and durability are paramount.
