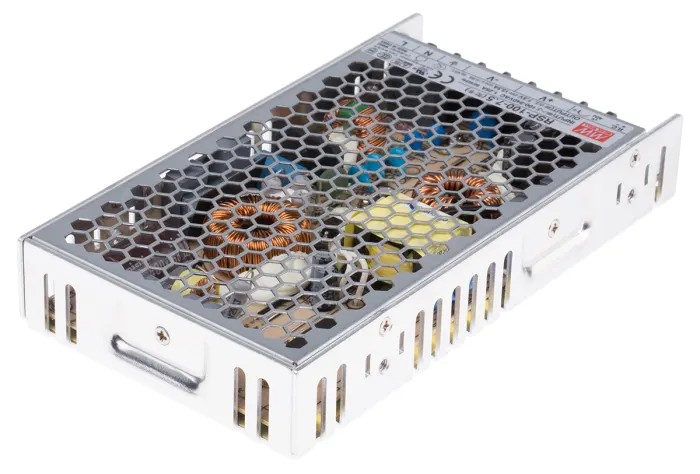

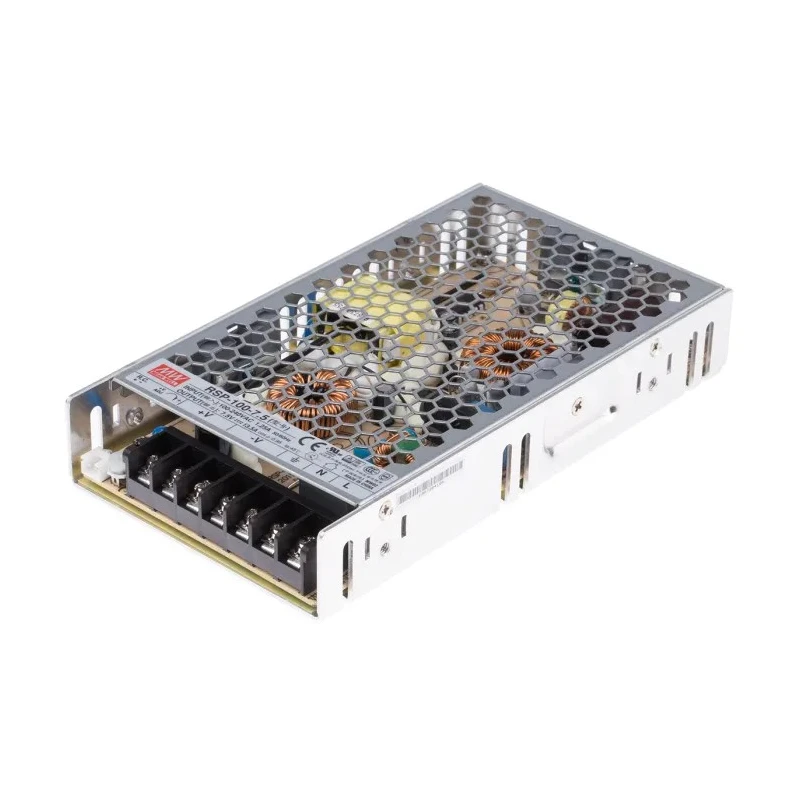

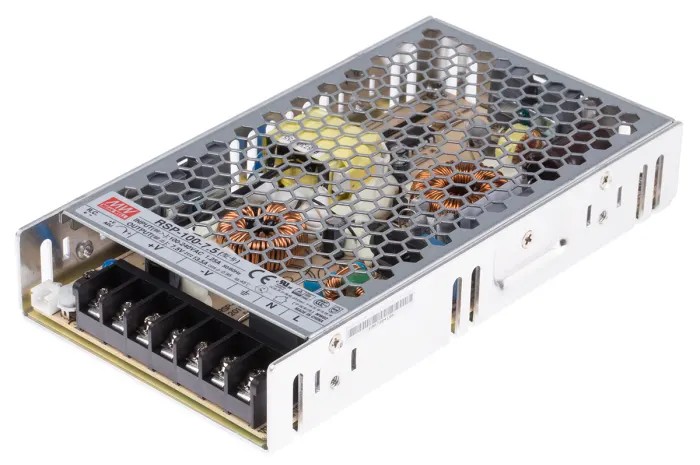

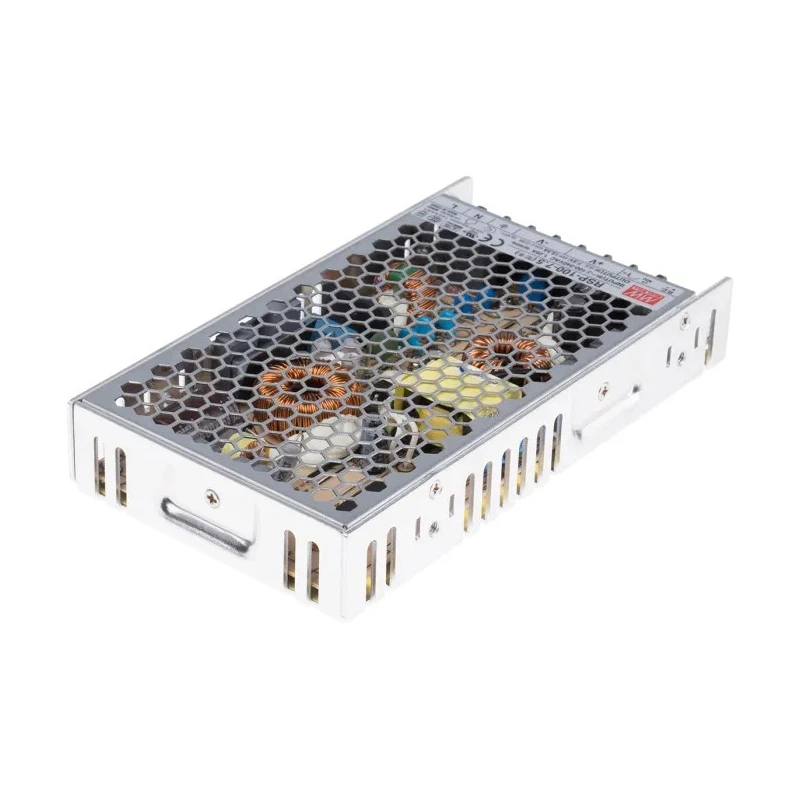

MEAN WELL RSP-100 Series 100W AC/DC Low Profile Enclosed Switching Power Supply 7.5V DC, 13.5A Output Current RSP-100-7.5

Name: MEAN WELL RSP-100 Series 100W AC/DC Low Profile Enclosed Switching Power Supply 7.5V DC, 13.5A Output Current RSP-100-7.5
Brand: MEAN WELL
SKU: 376573
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	101W
Efficiency	87%
Length	179mm
Model	RSP-100-7.5
Depth	30mm
Gross Weight	520g
Width	30mm
Mount Type	Chassis
Series	RSP-100
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protection	Short circuit / Overload / Over voltage
Maximum Output Voltage	7.5V dc
SMPS Output Current	13.5A
Minimum Input Voltage	85V ac

Key Features

Supports universal AC input range from 85V to 264V.
Compact 30mm low profile design suitable for 1U chassis installation.
High efficiency up to 87% with built-in active Power Factor Correction.
Fan-less cooling via free air convection operating from -30°C to +70°C.
Includes protection for short circuit, overload, over voltage, and over temperature.
Remote ON/OFF control and LED indicator for power status.
Complies with UL, TUV, CCC, CB, and CE safety and EMC standards.
Suitable for industrial automation, mechanical, household, and instrumentation use.

Product Description

MEAN WELL RSP-100-7.5 is a 100W AC/DC enclosed switching power supply designed for low profile, single output applications requiring robust and reliable power conversion. It outputs 7.5V DC at a current of 13.5A, suitable for a broad range of industrial, household, and instrumentation uses. The unit supports universal AC input voltage from 85V to 264V, ensuring compatibility with diverse electrical environments.

The power supply features a compact chassis mount design with measurements of 179 mm length, 30 mm width, and 30 mm depth, allowing installation in 1U rack spaces. Its fan-less design relies on free air convection cooling, enabling operation in ambient temperatures from -30°C to +70°C, with suitable derating above 50°C.

Efficiency reaches up to 87%, boosted by an active Power Factor Correction circuit. The RSP-100-7.5 provides essential protections including short circuit, overload, over voltage, and over temperature, enhancing safety and longevity of connected equipment. It also supports remote ON/OFF control and includes an LED power indicator for status monitoring.

Universal AC input from 85 to 264V with high efficiency and low profile size. Protection functions safeguard device and user safety during operation. Compact and lightweight design suitable for versatile industrial installations.

Remote control capability and LED indication for ease of use and diagnostics. Certified to international safety and electromagnetic compatibility standards. Applications include industrial automation systems, machine control, household appliances, and electrical instrumentation.

Manufactured in China meeting high quality and performance criteria.

The MEAN WELL RSP-100-7.5 series exemplifies reliable power supply solutions that comply with stringent international standards such as UL 62368-1, TUV EN 61558, CCC, CB, and CE certifications. This product is ideal for demanding industrial and commercial environments requiring a dependable low profile power source.
