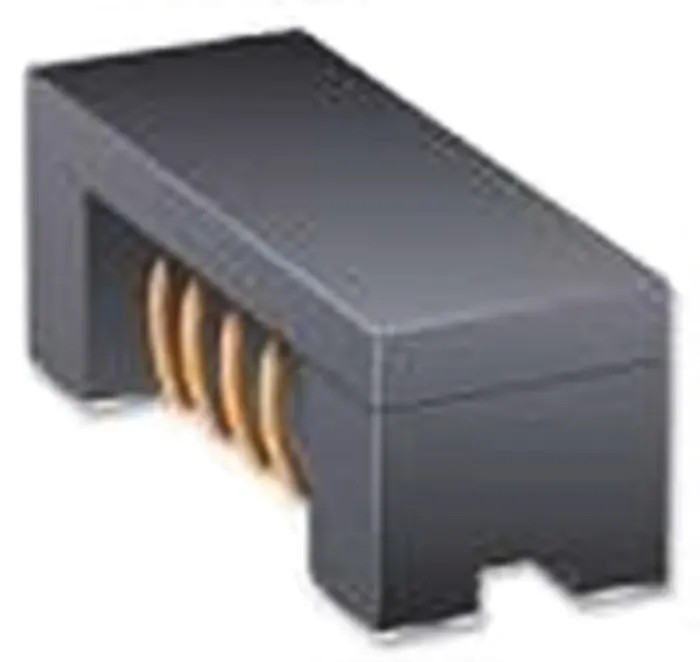

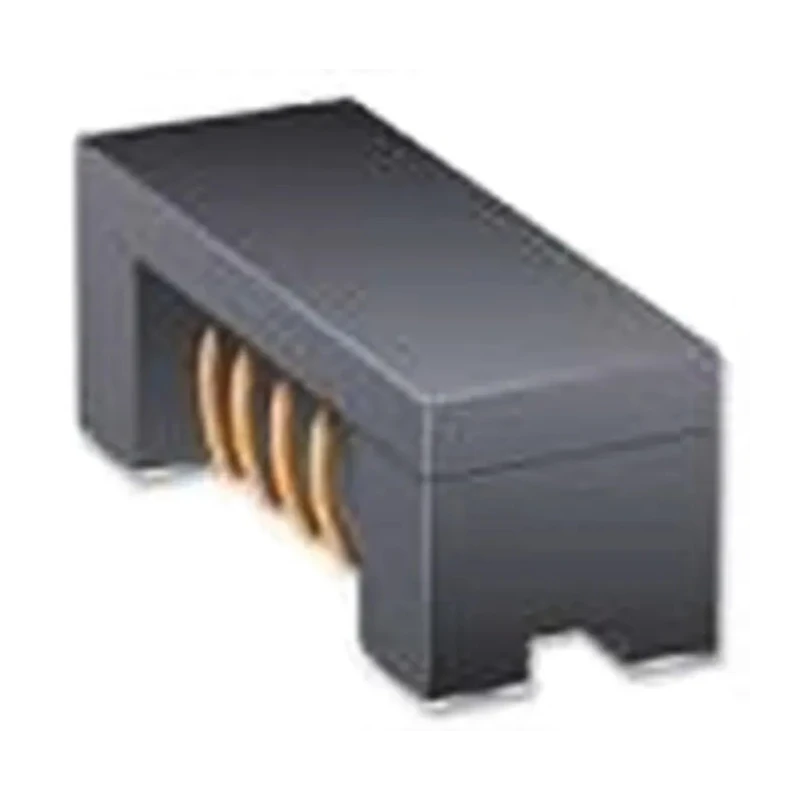

Bourns Shielded Surface Mount Common Mode Line Filter, Ferrite Core, 600 μH ±25 %, 300 mA Idc, 3216 Case SRF3216

Bourns SRF3216 shielded surface mount common mode line filter features a 600 μH inductance with a tolerance of ±25 % and a maximum DC current rating of 300 mA. This line filter is designed using a ferrite core and wirewound construction to provide effective suppression of noise in electronic circuits.

The component is packaged in a compact 3216 surface mount case with dimensions of 3.2 mm length, 2 mm height, and 1.6 mm depth, making it suitable for densely populated printed circuit boards. Its shielded design enhances EMI reduction, improving overall device performance.

Rated for operation between -55°C and 125°C, it is a reliable choice for various industrial, electronic, and communications applications. The termination style is solder, allowing easy and secure attachment to circuit substrates. The part is RoHS compliant, meeting environmental safety standards.

Typical uses include noise suppression in personal computers, display panels, and other electronic systems where maintaining signal integrity is critical. The product is supplied on reels, enabling efficient automated placement in manufacturing processes.

The filter's ferrite core and shielded design effectively reduce common mode noise. The wirewound inductor construction ensures durability and stable inductance. Compact size supports miniaturization in electronic assemblies.

Wide temperature range ensures operation in diverse environmental conditions. Complies with RoHS directive for environmentally responsible manufacturing. Reel packaging facilitates efficient production and reduced handling damage.

For engineers and designers seeking a high-quality, reliable common mode filter, the Bourns SRF3216 series offers proven performance in surface mount technology. Explore further options and related components in our Electronics & Electricals category at EnvMart.
